Fuel Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
NOTE: Fuel level sensor is built in fuel pump assembly.
  1. Remove fuel pump assembly. Refer to FUEL PUMP .
  2. Disconnect connector from fuel pump bracket.

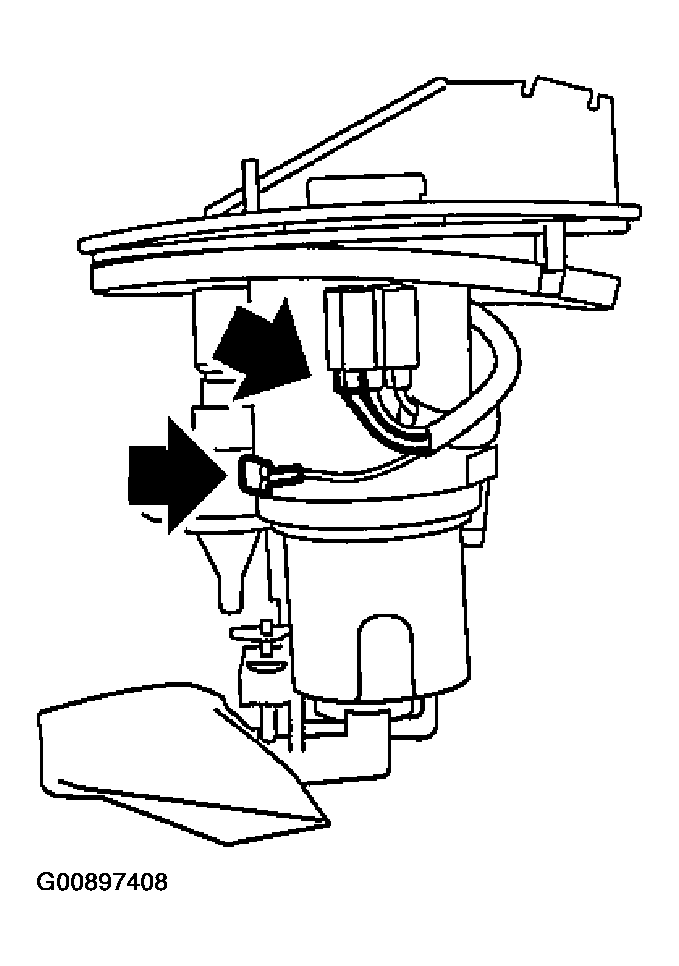

    Fig 1: Disconnecting Connector From Fuel Pump
    G00897408Courtesy of SUBARU OF AMERICA, INC.
  3. Pushing the pawls with a screwdriver, remove fuel meter unit by pulling it downwards.
NOTE: If the retainer pawls are broken during removal, the fuel level sensor must be replaced with a new one.

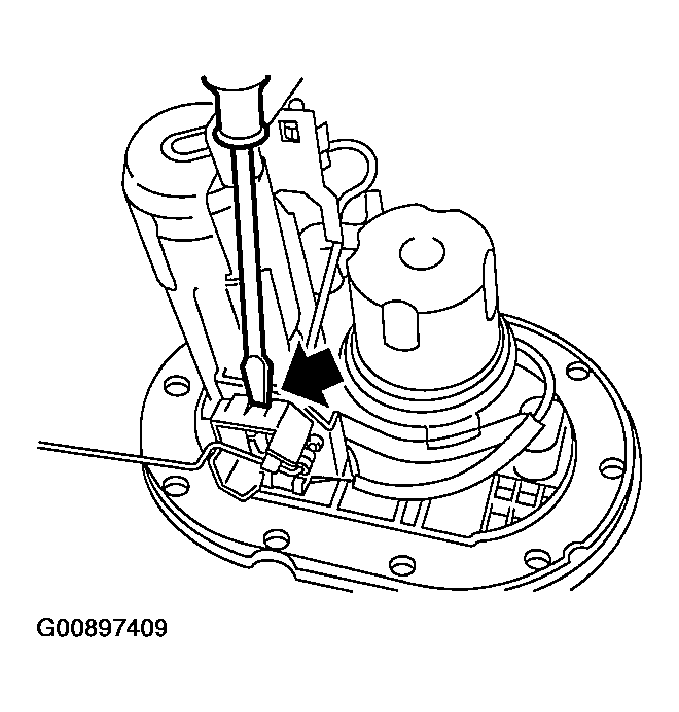

Fig 2: Removing Fuel Meter Unit
G00897409Courtesy of SUBARU OF AMERICA, INC.
