Fuel Pump Controller: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Battery Ground Cable
    G00897298Courtesy of SUBARU OF AMERICA, INC.
  2. Remove rear quarter trim. Refer to REMOVAL , Rear Quarter Trim.
  3. Disconnect connector from fuel pump control unit.

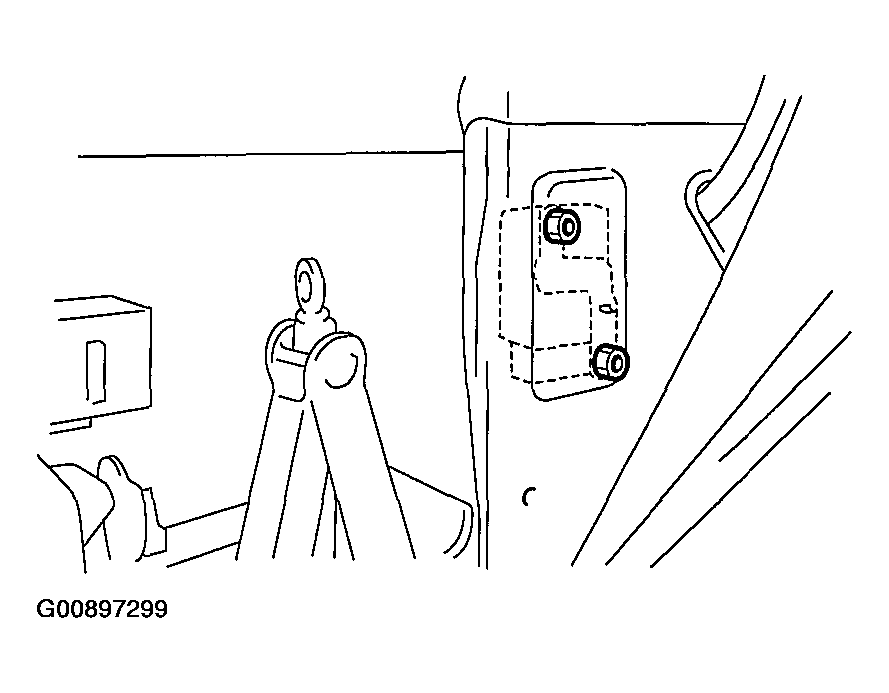

    Fig 2: Disconnecting Fuel Pump Control Unit Connector
    G00897299Courtesy of SUBARU OF AMERICA, INC.
  4. Remove connector of fuel pump control unit.
