Fuel Pump: Removal

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.
During work procedures, if fuel tank is more than 3/4 full, be careful because fuel may spill.

NOTE: Fuel pump assembly consists of fuel pump and fuel level sensor.

Release fuel pressure. Refer to FUEL .
Drain fuel from fuel tank. Refer to FUEL .
Raise rear seat and turn floor mat up.
Remove access hole lid.

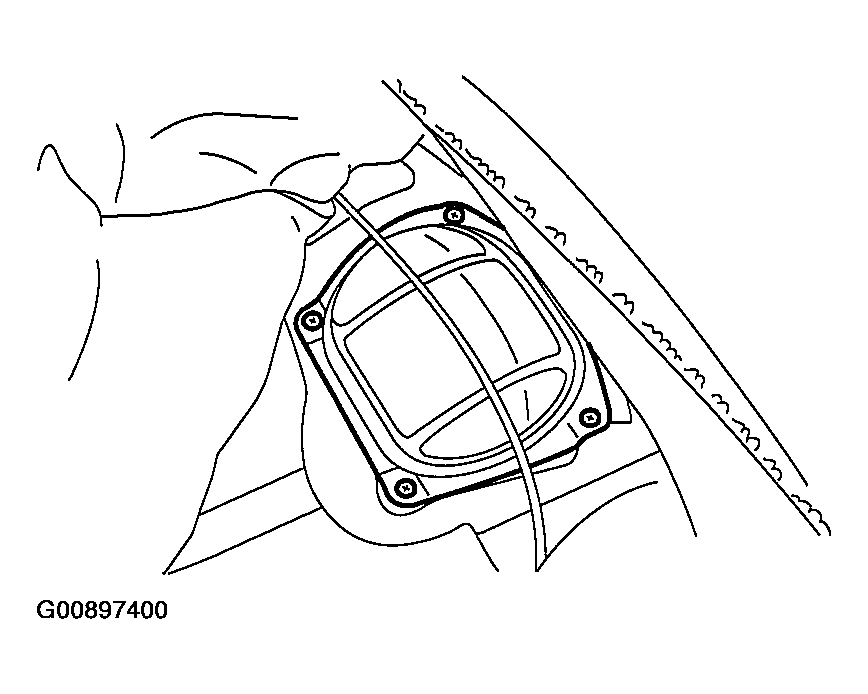

Fig 1: Removing Access Hole Lid
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel pump.

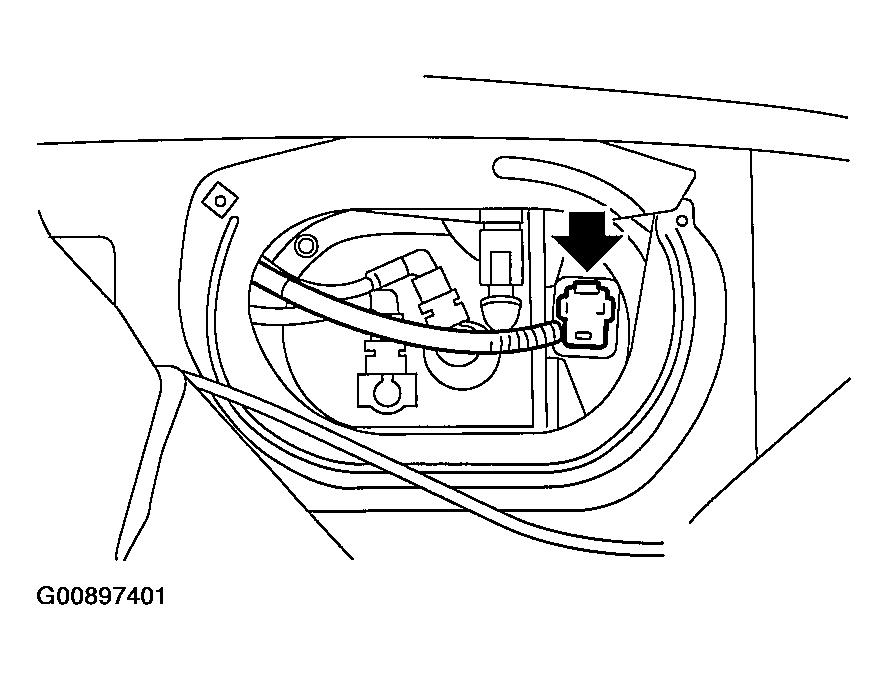

Fig 2: Disconnecting Connector From Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Using ST, disconnect quick connector and then disconnect fuel delivery hose (A), return hose (B) and jet pump hose. Refer to FUEL DELIVERY, RETURN AND EVAPORATION LINES .
ST 42099AEOOO CONNECTOR REMOVER

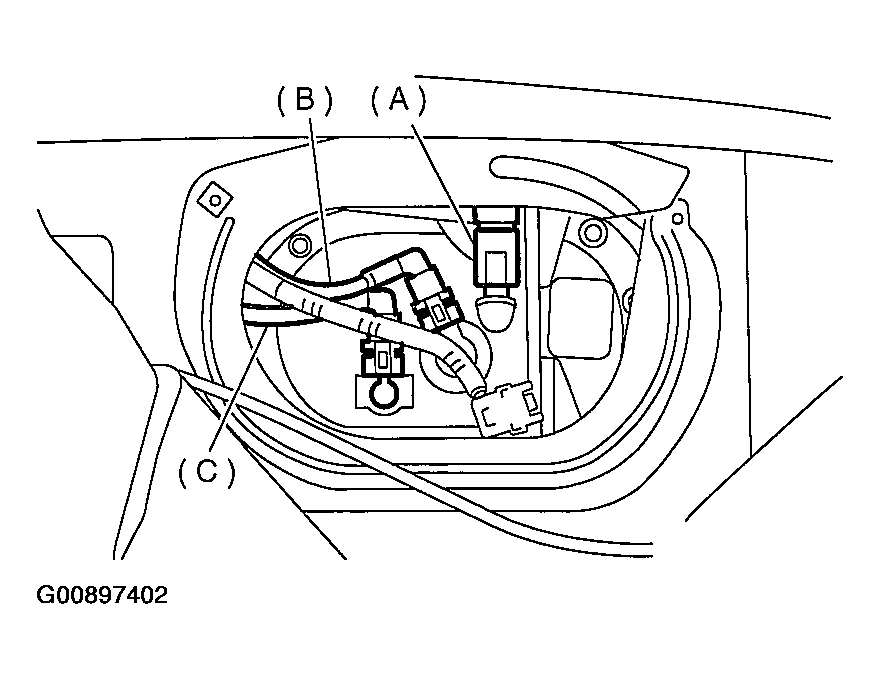

Fig 3: Disconnecting Quick Connector & Disconnect Fuel Delivery Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which install fuel pump assembly onto fuel tank.

Fig 4: Removing Nuts Which Install Fuel Pump Assembly Onto Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Take off fuel pump assembly from fuel tank.
