Intake Air Temperature Sensor: Removal

  1. Disconnect ground cable from battery.

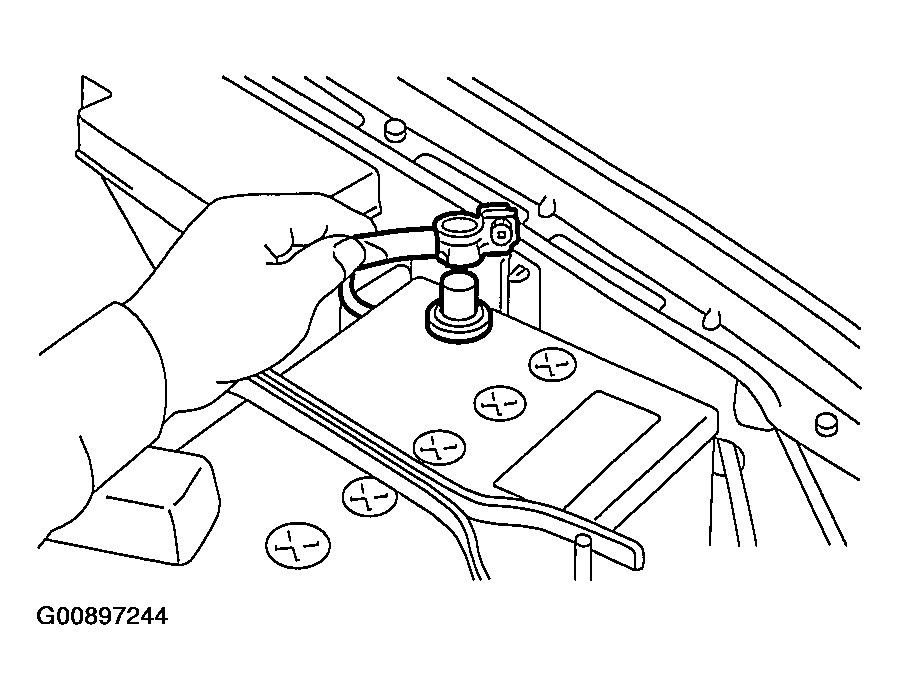

    Fig 1: Disconnecting Ground Cable From Battery
    G00897244Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from intake air temperature sensor.
  3. Remove intake air temperature sensor from air intake chamber.

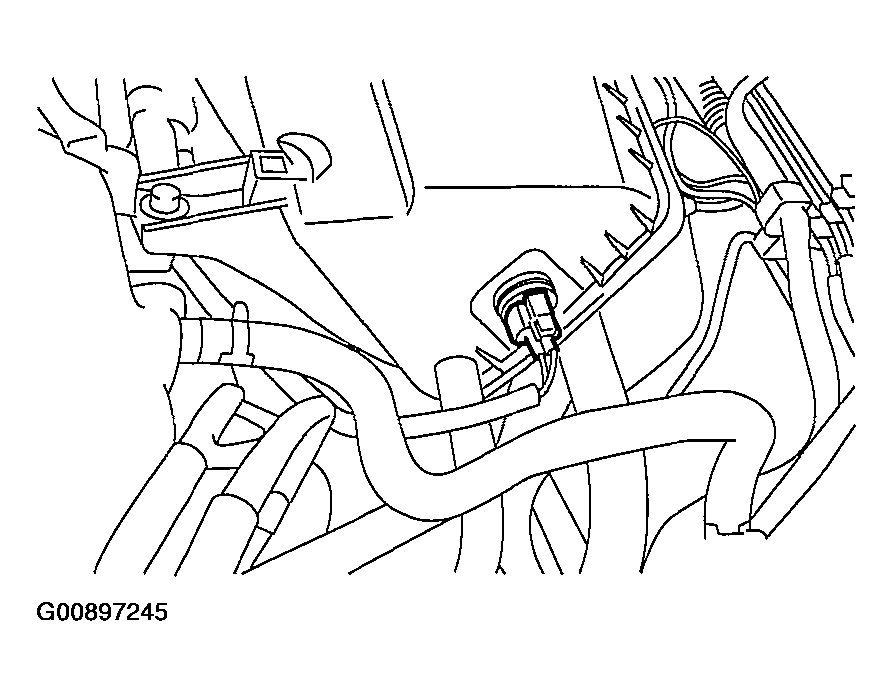

    Fig 2: Removing Intake Air Temperature Sensor
    G00897245Courtesy of SUBARU OF AMERICA, INC.
