Throttle Body: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake chamber.
Refer to REMOVAL , Air Intake Chambers.

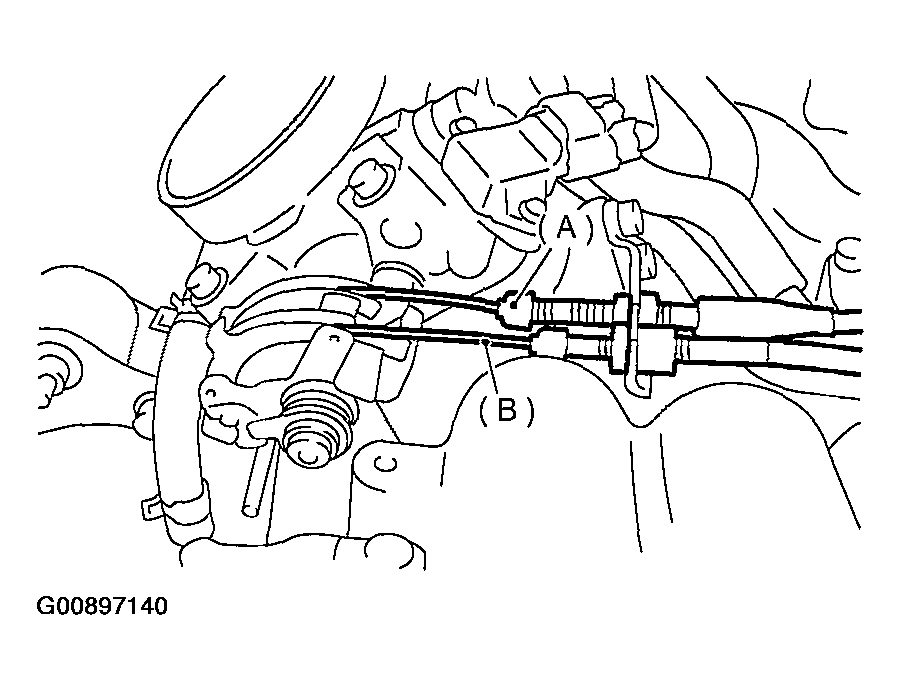

Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

Fig 2: Disconnecting Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connectors from intake manifold pressure sensor (A) and idle air control solenoid valve (B).
Disconnect air by-pass hose (C) from idle air control solenoid valve.

Fig 3: Disconnecting Air By-Pass Hose
Courtesy of SUBARU OF AMERICA, INC.

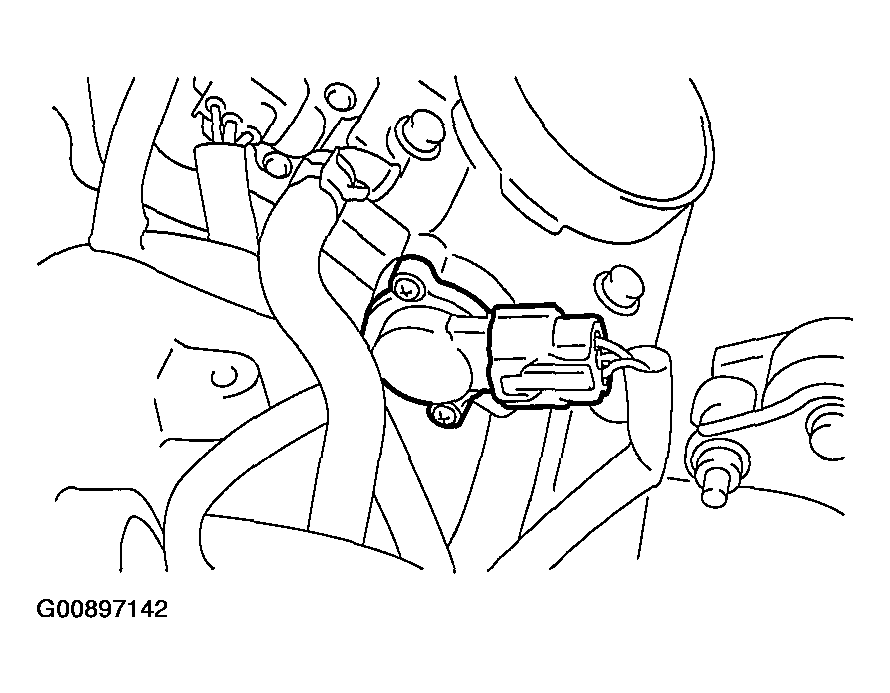

Disconnect throttle position sensor connector.

Fig 4: Disconnecting Throttle Position Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect engine coolant hoses from throttle body.

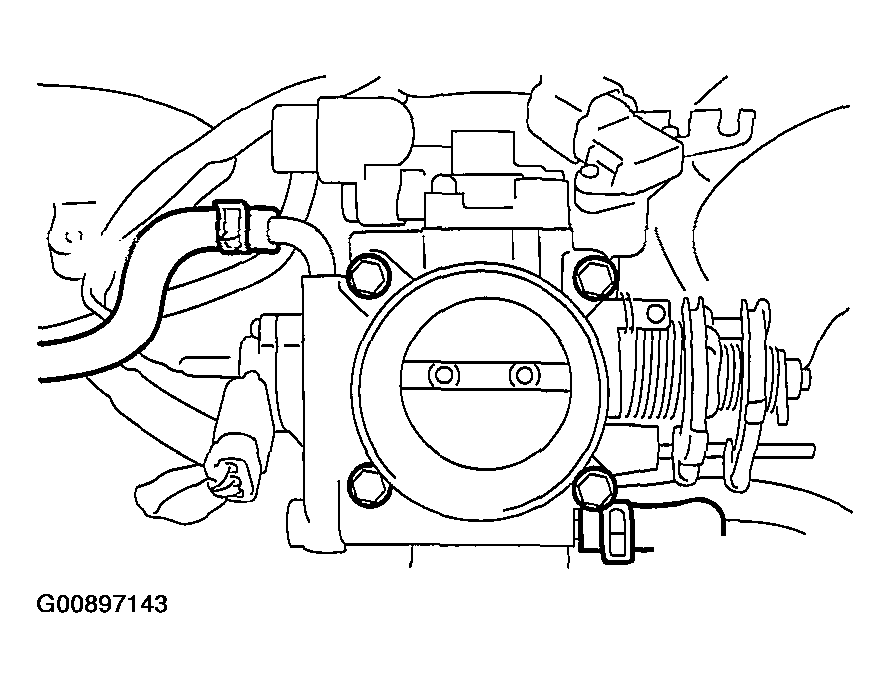

Remove bolts which secure throttle body to intake manifold.

Fig 5: Removing Throttle Body Bolts
Courtesy of SUBARU OF AMERICA, INC.
