Throttle Position Sensor: Removal

Disconnect ground cable from battery.

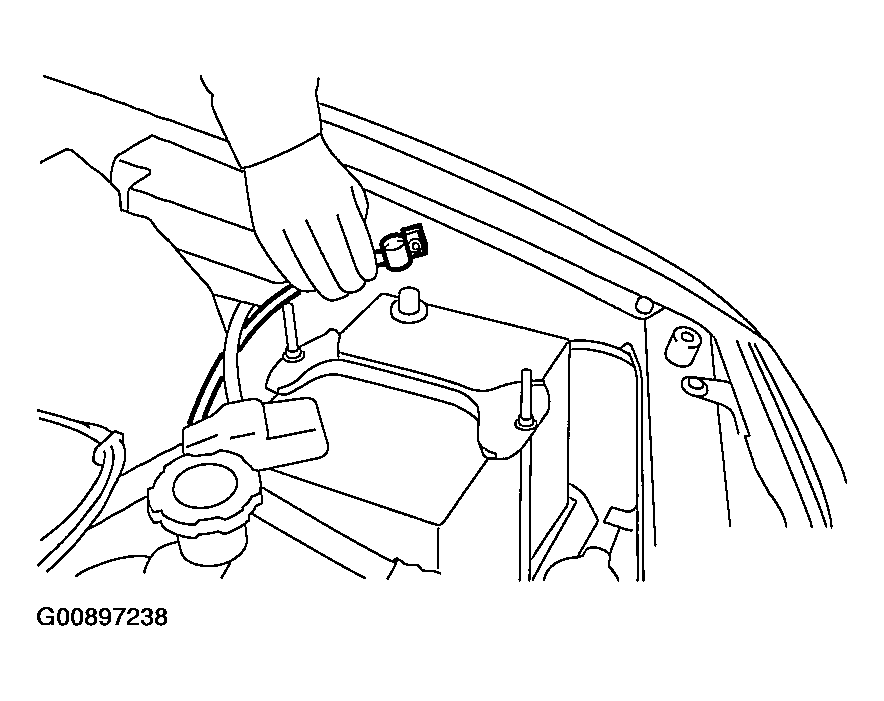

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

Remove air intake chamber. Refer to REMOVAL , Air Intake Chamber.
Disconnect connector from throttle position sensor.
Remove throttle position sensor holding screws, and remove throttle position sensor.

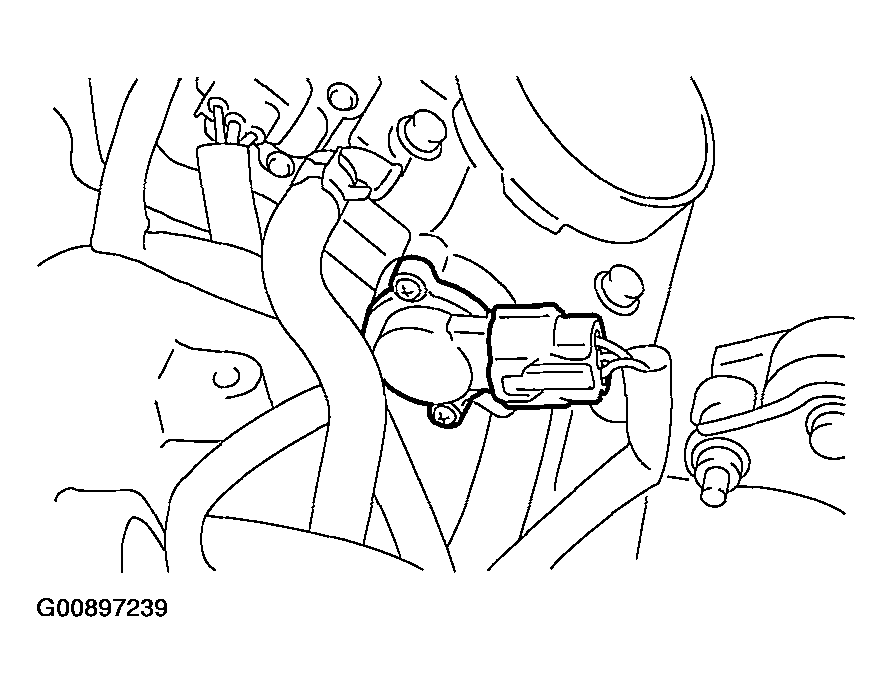

Fig 2: Removing Throttle Position Sensor Holding Screws
Courtesy of SUBARU OF AMERICA, INC.
