LH Side

Disconnect battery cables and then remove battery and battery carrier.

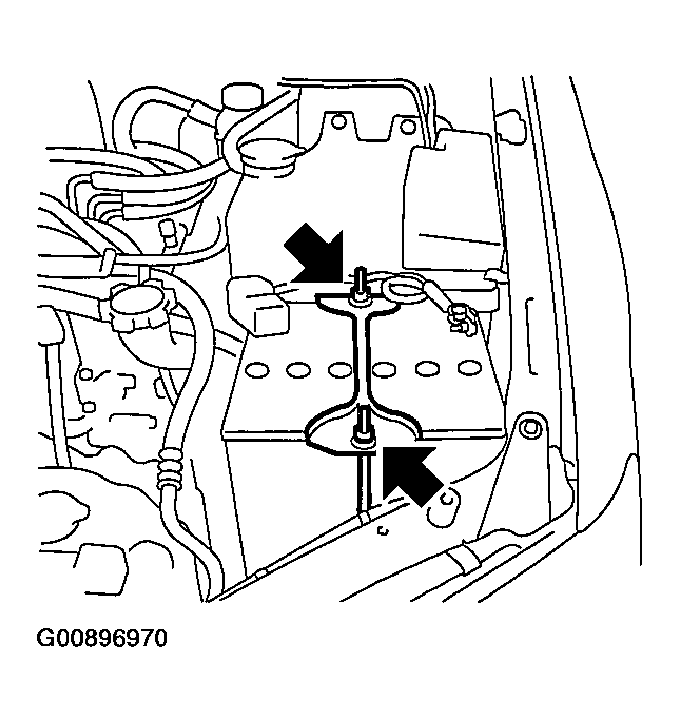

Fig 1: Disconnecting Battery Cables
Courtesy of SUBARU OF AMERICA, INC.
Disconnect washer motor connector.

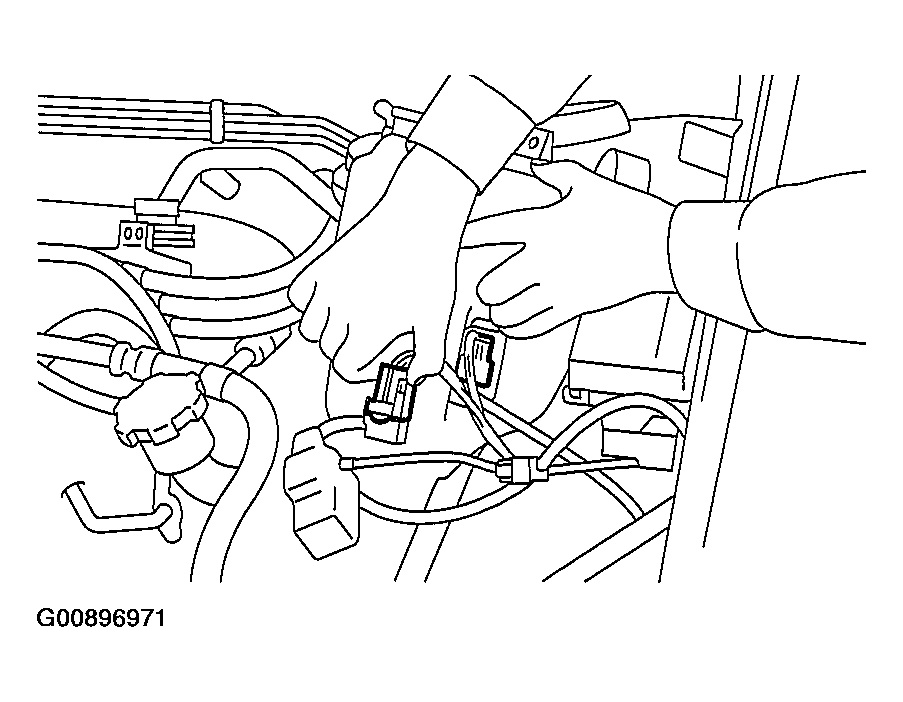

Fig 2: Disconnecting Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the two bolts which hold the wash tank, then take the tank away from the working area.

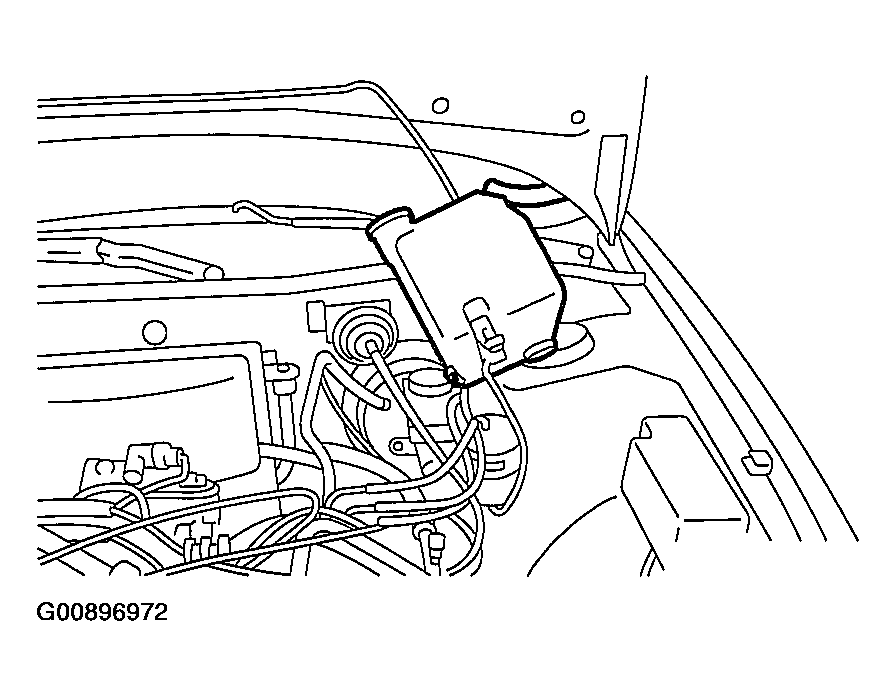

Fig 3: Removing Two Bolts Which Hold Wash Tank
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from ignition coil.
Remove ignition coil.

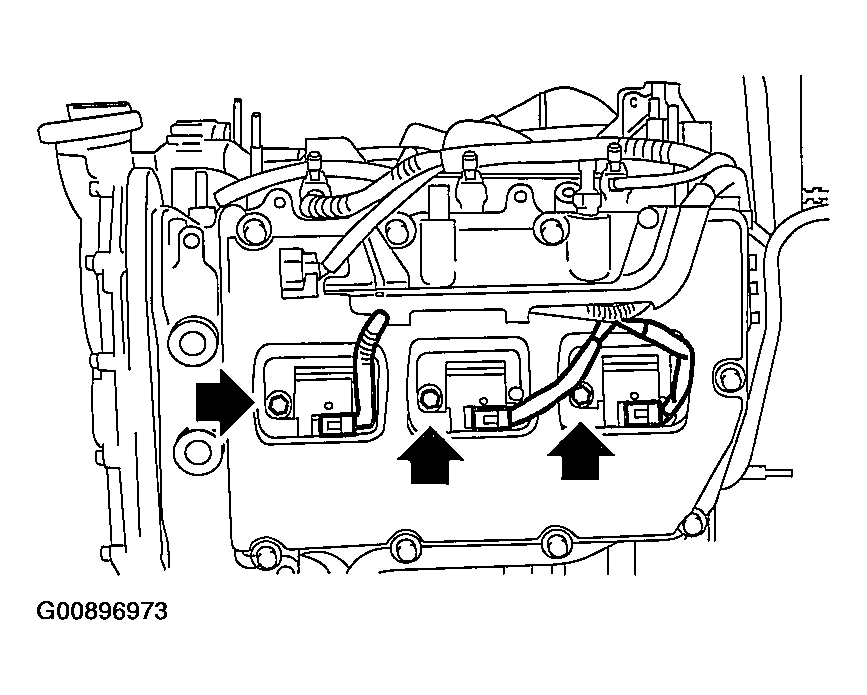

Fig 4: Disconnecting Connector From Ignition Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove spark plug with the spark plugs socket.

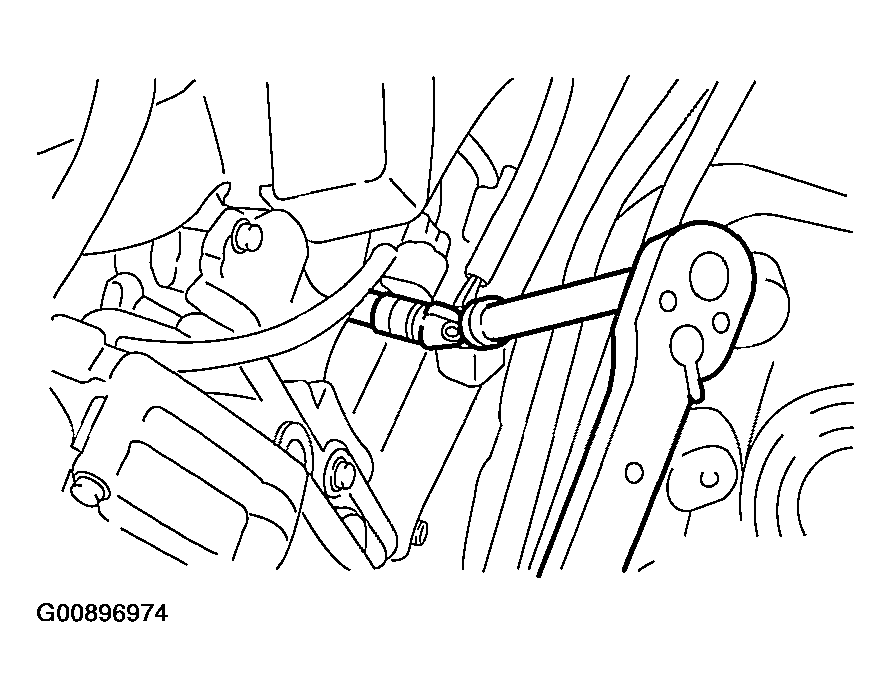

Fig 5: Removing Spark Plug With Spark Plugs Socket
Courtesy of SUBARU OF AMERICA, INC.
