RH Side

  1. Disconnect battery ground cable.
    Fig 1: Disconnecting Battery Ground Cable
    G00896967Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air cleaner lower case. Refer to REMOVAL , Air Cleaner.
  3. Disconnect connector from ignition coil.
  4. Remove ignition coil.

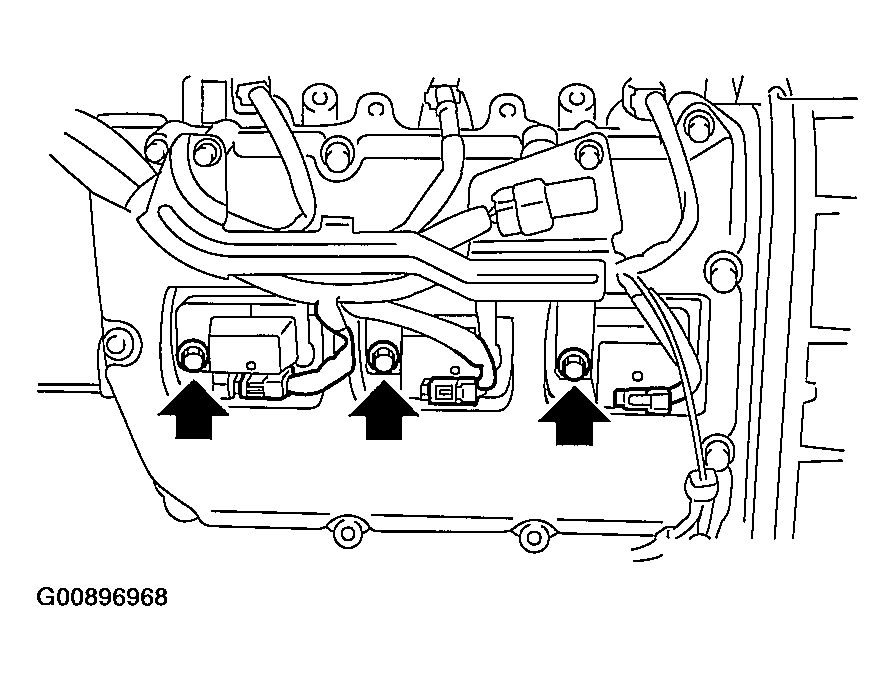

    Fig 2: Disconnecting Connector From Ignition Coil
    G00896968Courtesy of SUBARU OF AMERICA, INC.
  5. Remove spark plugs with the spark plug socket.

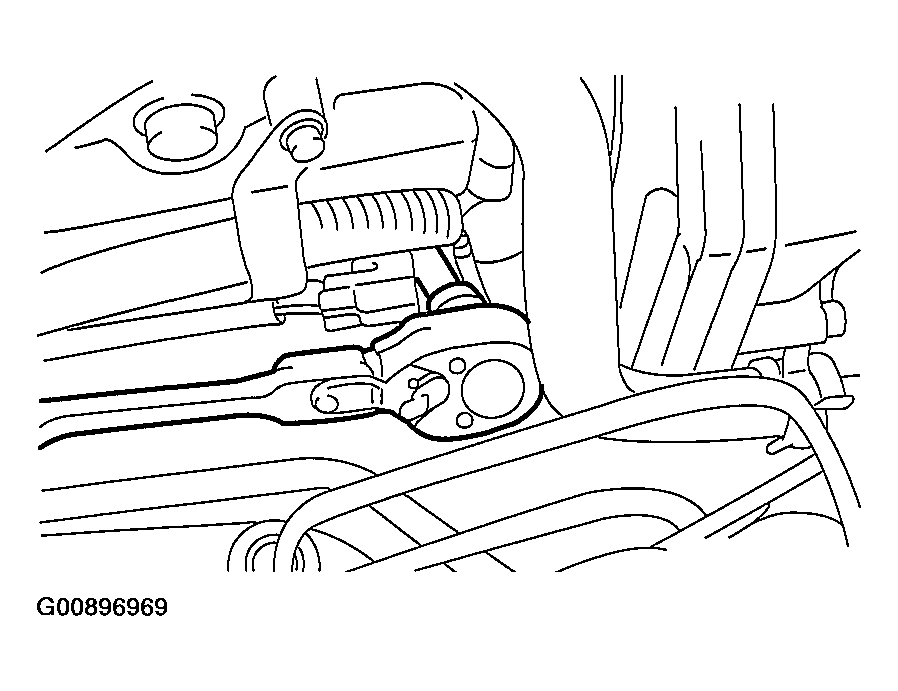

    Fig 3: Removing Spark Plugs With Spark Plug Socket
    G00896969Courtesy of SUBARU OF AMERICA, INC.
