Data Link Connector: Note

  1. This connector is used both for OBD-II general scan tools and the Subaru Select Monitor.
  2. Terminal No. 4 to No. 6 of the data link connector is used for the Subaru Select Monitor signal.
CAUTION: Do not connect any scan tools other than the OBD-II general scan tools and the Subaru Select Monitor, because the circuit for the Subaru Select Monitor may be damaged.

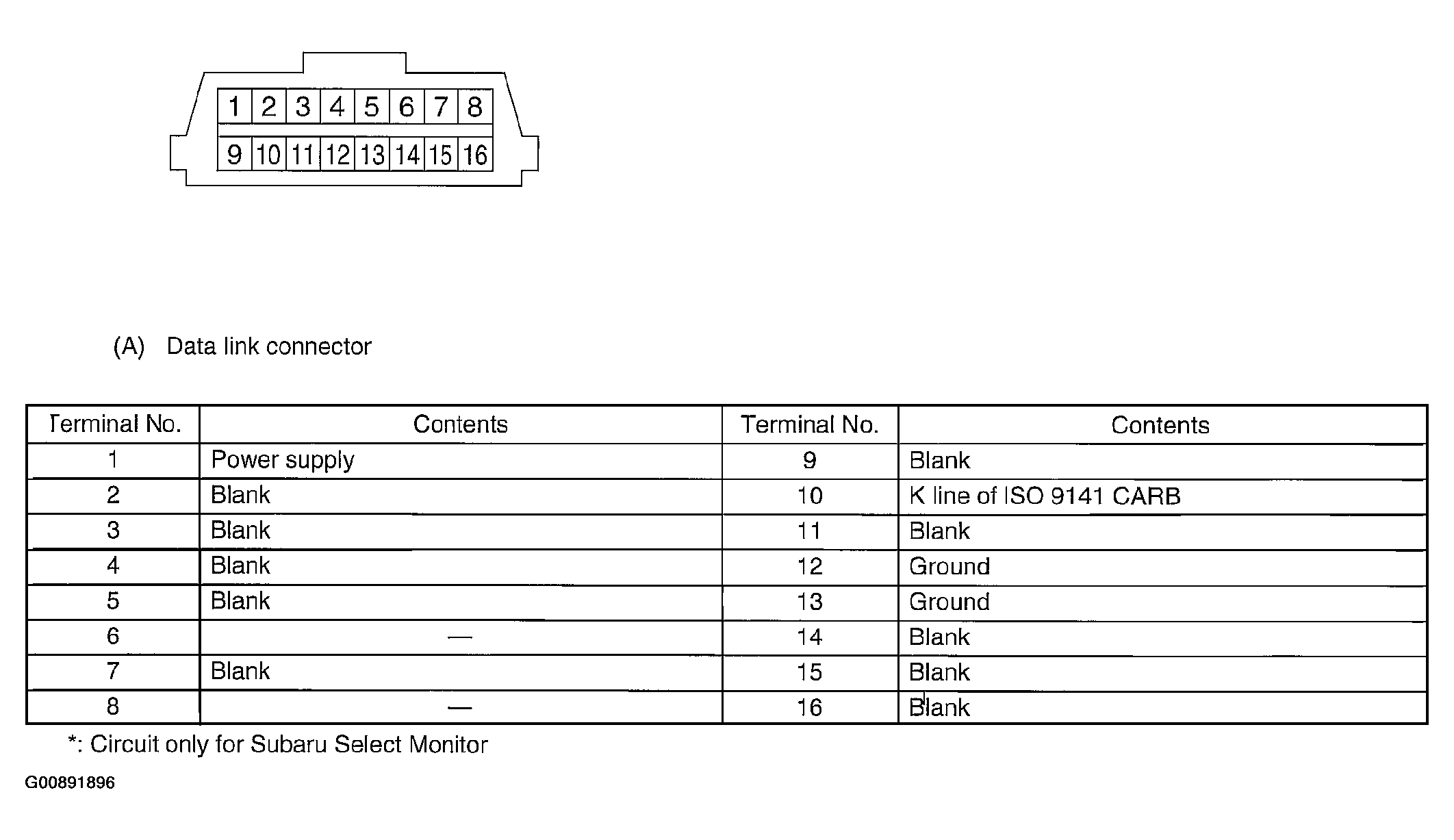

Fig 1: Identifying Data Link Connector
G00891896Courtesy of SUBARU OF AMERICA, INC.
