Front Wheel Toe-In: Adjustment
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Subaru Outback, 2003 Subaru Legacy, 2003 Subaru Baja, 2002 Subaru Outback, and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

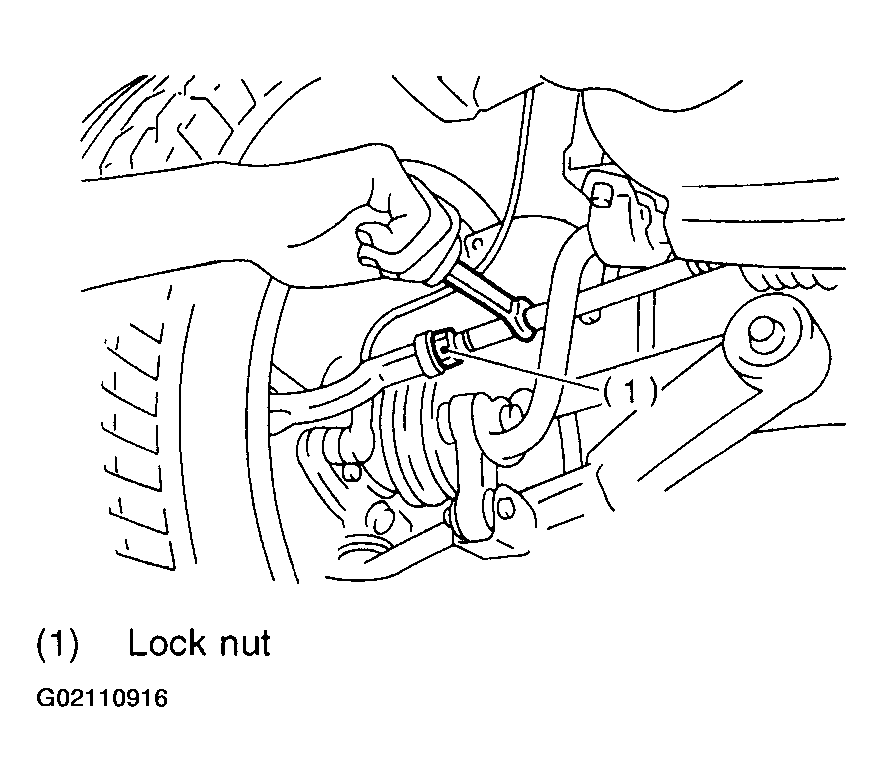

- Loosen the left and right side steering tie-rods lock nuts.
- Turn the left and right tie rods equal amounts until the toe-in is at the specification. Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise equal amounts (as viewed from the inside of the vehicle).
- Tighten tie-rod lock nut.
- Tightening torque: 83 N-m (8.5 kgf-m, 61.5 ft-lb)
CAUTION:
Correct tie-rod boot, if it is twisted.
NOTE:
Check that the left and right wheel steering angle is within specifications.
