Section 18 (Clutch System): General Description: Preparation Tool

WARNING: This page is about a different variant/trim than selected.
  1. SPECIAL TOOLS

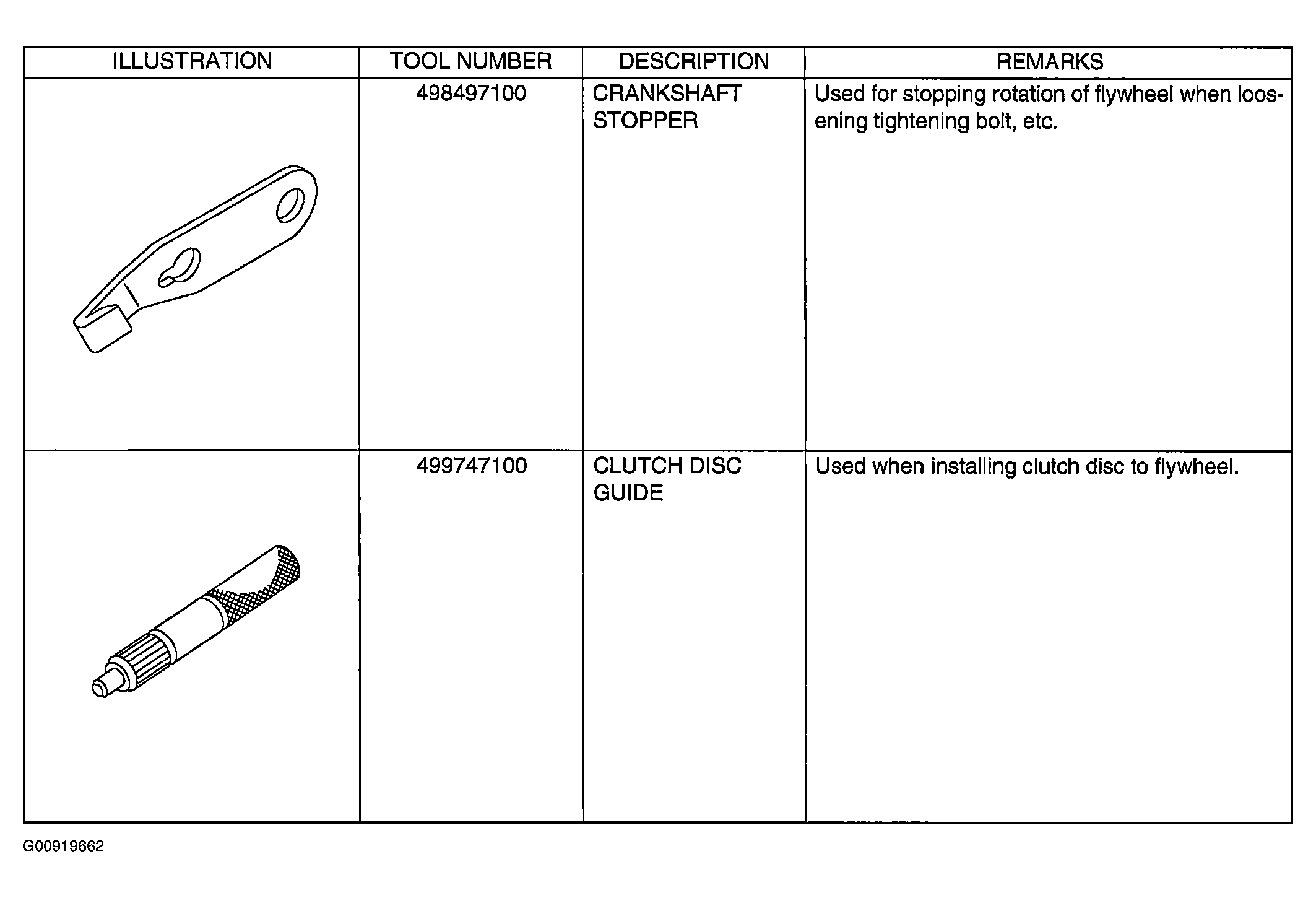

    Fig 1: Identifying Special Tools
    G00919662Courtesy of SUBARU OF AMERICA, INC.
  2. GENERAL PURPOSE TOOLS
    Fig 2: General Purpose Tools Table
    G00919663Courtesy of SUBARU OF AMERICA, INC.
