Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner case and air intake duct.
(Except U5 model) Refer to REMOVAL , Air Cleaner Case and REMOVAL , Air Intake Duct.
Remove the air intake chamber and air intake duct. (U5 model) Refer to REMOVAL , Air Intake Chamber and REMOVAL , Air Intake Duct.
Remove the intercooler. Refer to REMOVAL , Intercooler.
Remove the clutch hose from operating cylinder.
NOTE: Cover the hose joint to prevent clutch fluid from flowing out.
- Non-TURBO model

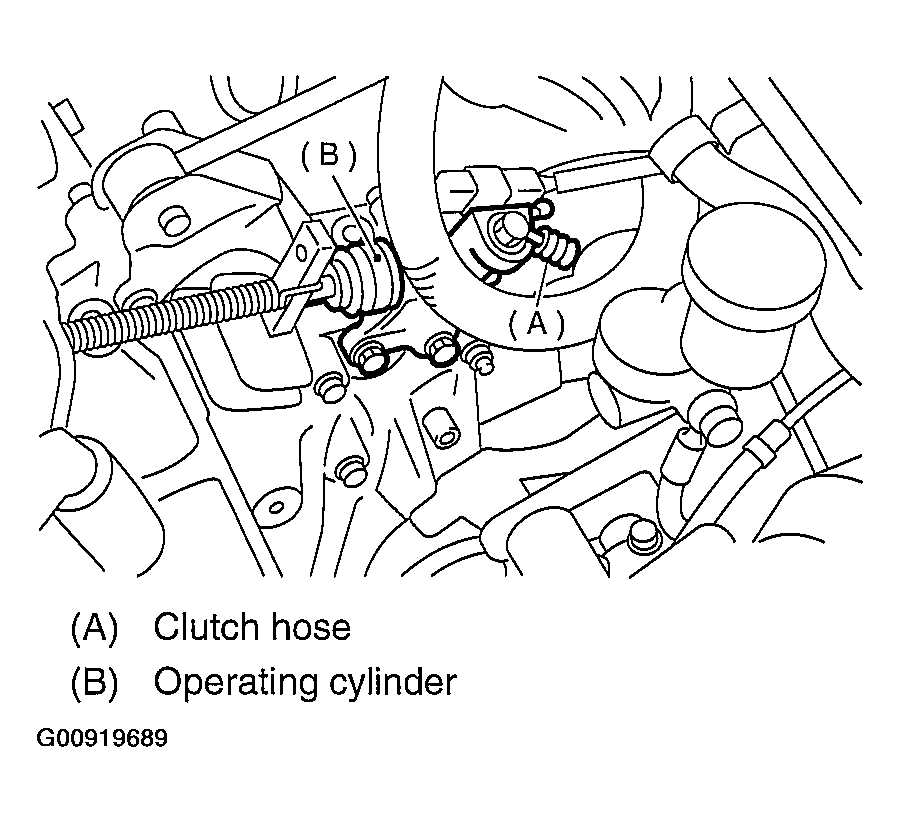

  Fig 1: Removing Clutch Hose From Operating Cylinder (Non-TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

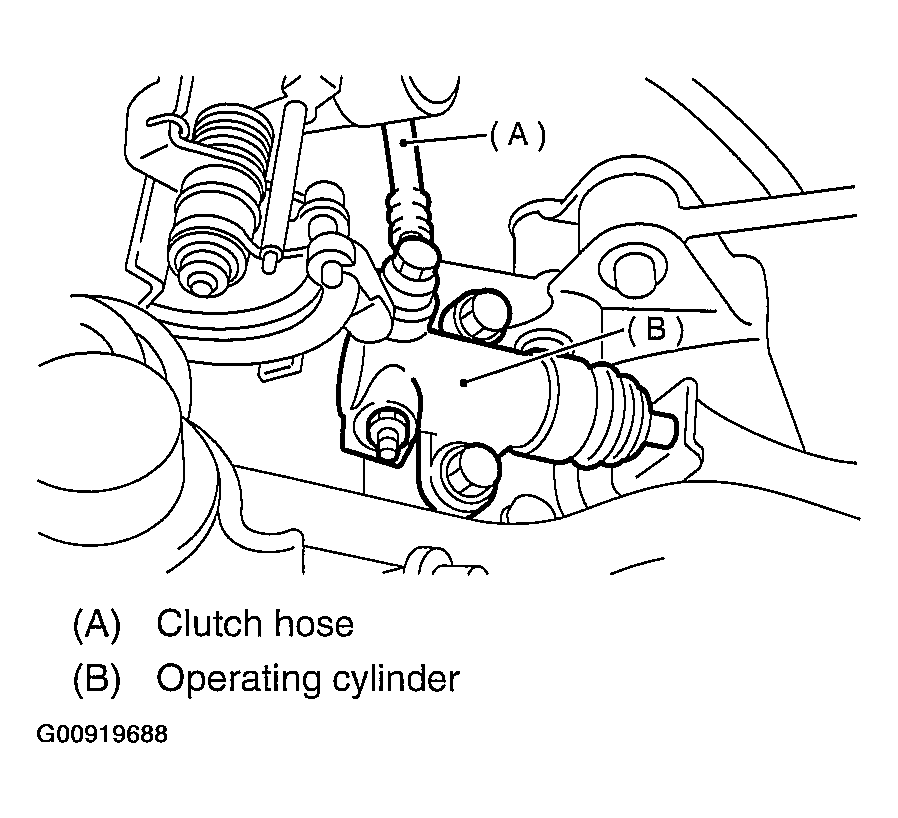

  Fig 2: Removing Clutch Hose From Operating Cylinder (TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.
- Non-TURBO model

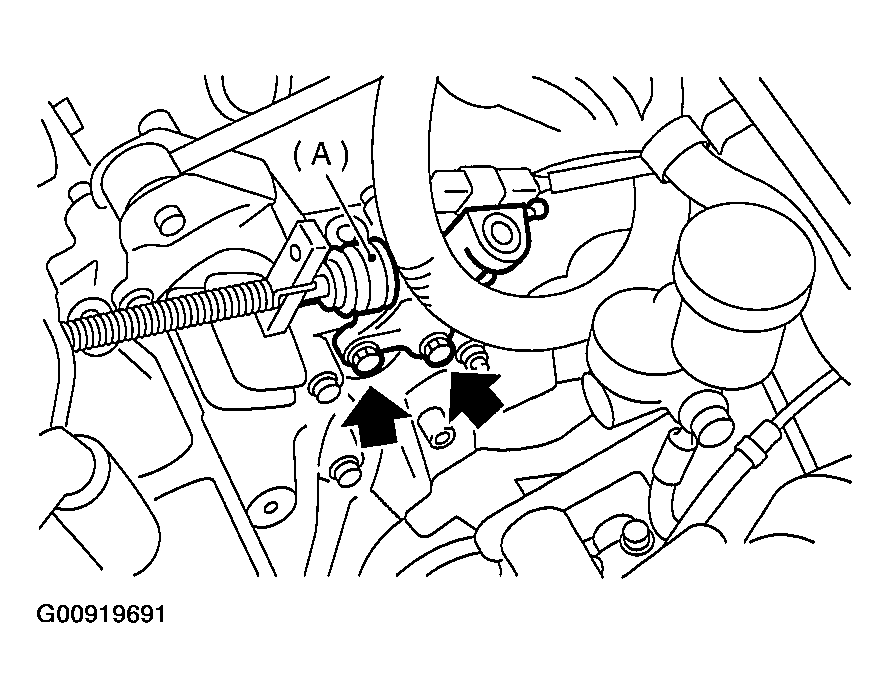

  Fig 3: Removing Operating Cylinder From Transmission (Non-TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

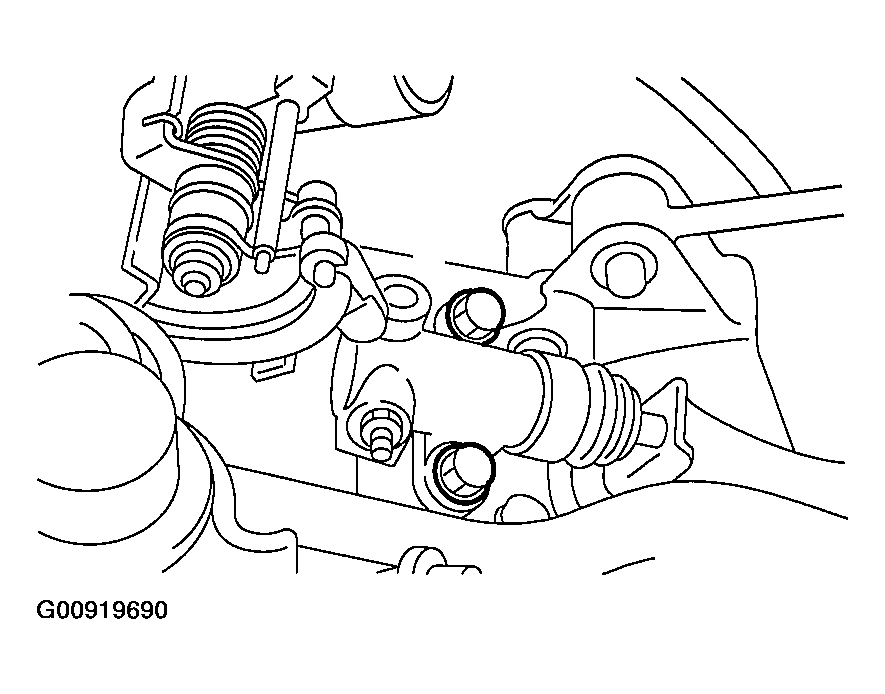

  Fig 4: Removing Operating Cylinder From Transmission (TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
