Manifold Pressure/Vacuum Sensor: Service and Repair

Pressure Sensor

REMOVAL

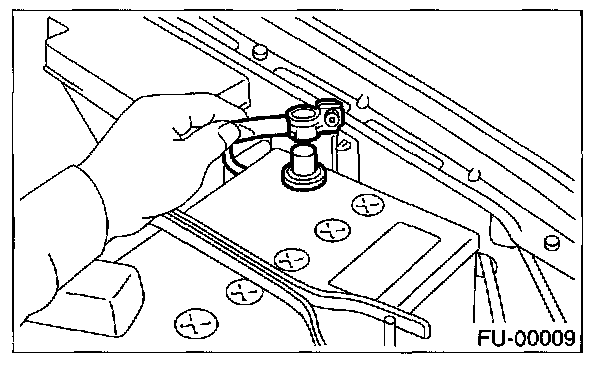

1. Disconnect battery ground cable.

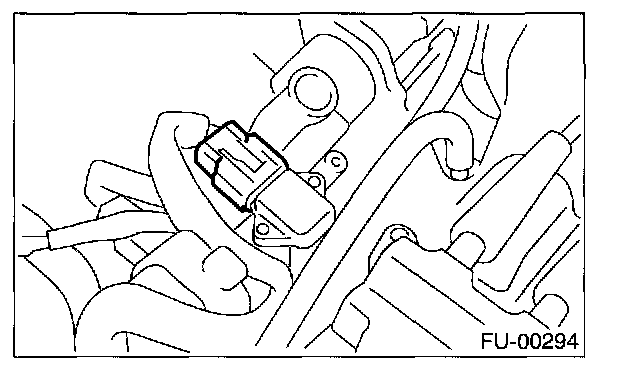

2. Disconnect connector from pressure sensor.

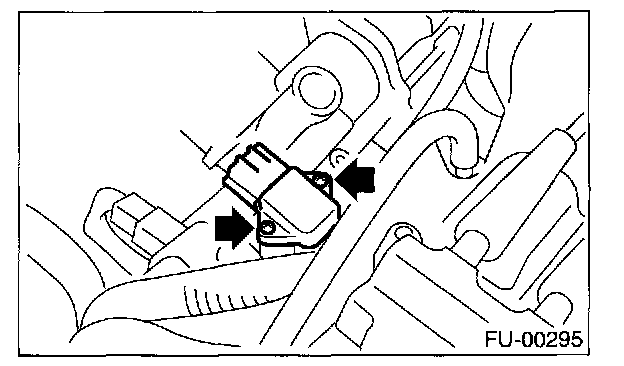

3. Remove pressure sensor.

INSTALLATION




Install in the reverse order of removal.

Tightening torque: 2.4 N.m (0.24 kgf-m, 1.7 ft-lb)

NOTE: Replace O-ring with a new one.
