Camshaft Position Sensor: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove ground cable from fuel pipe protector RH.

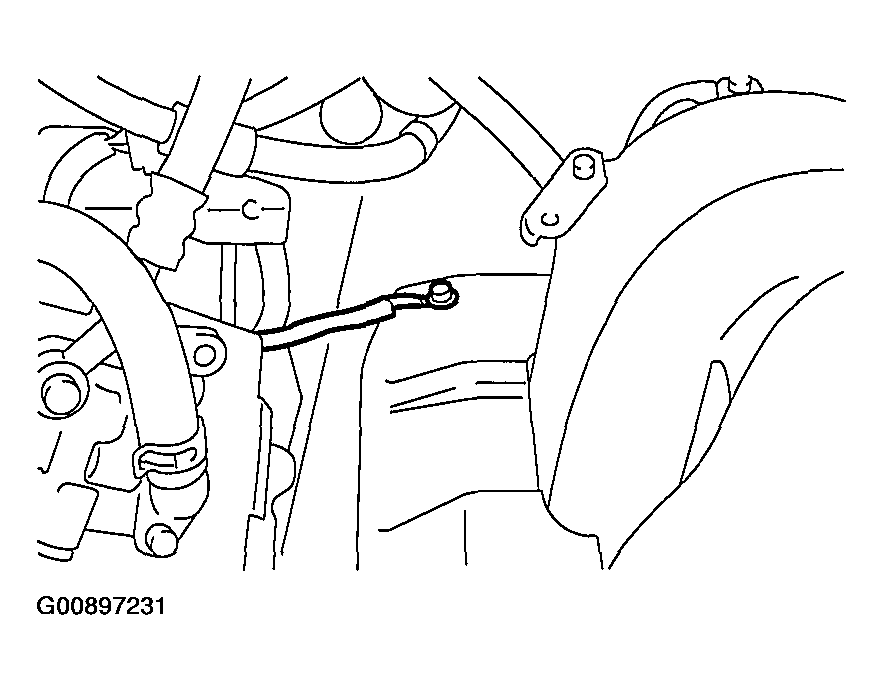

Fig 2: Removing Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel pipe protector RH.

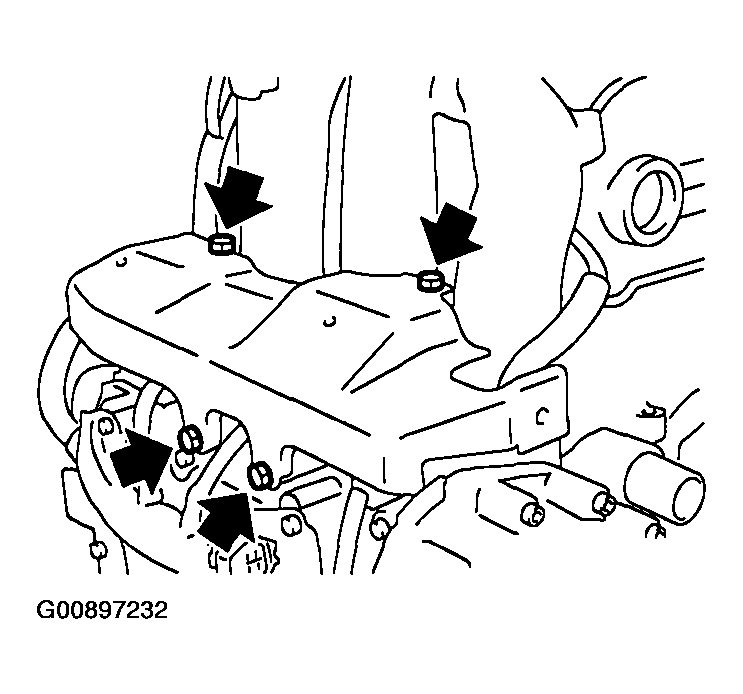

Fig 3: Removing Fuel Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from camshaft position sensor.
Remove camshaft position sensor.

Fig 4: Removing Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
