Crankshaft Position Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

1. 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

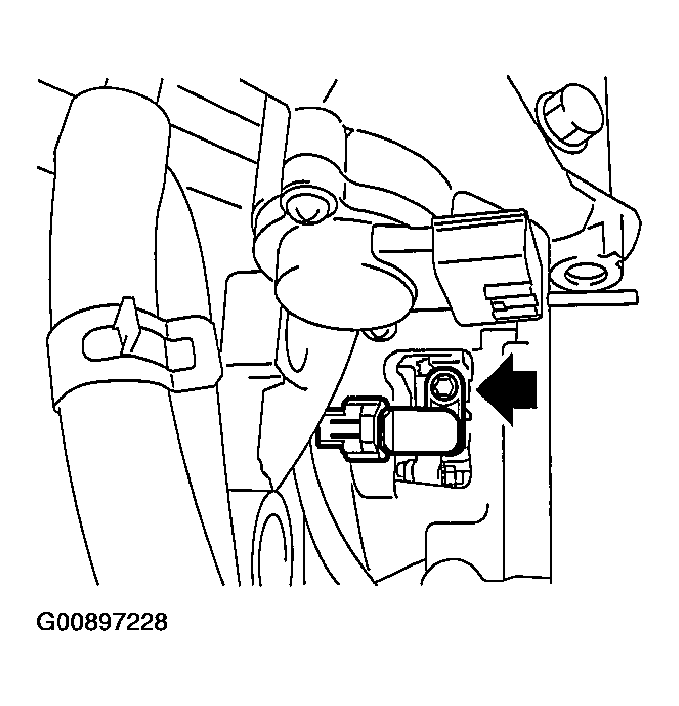

Fig 1: Installing Crankshaft Position Sensor

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

1. 5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

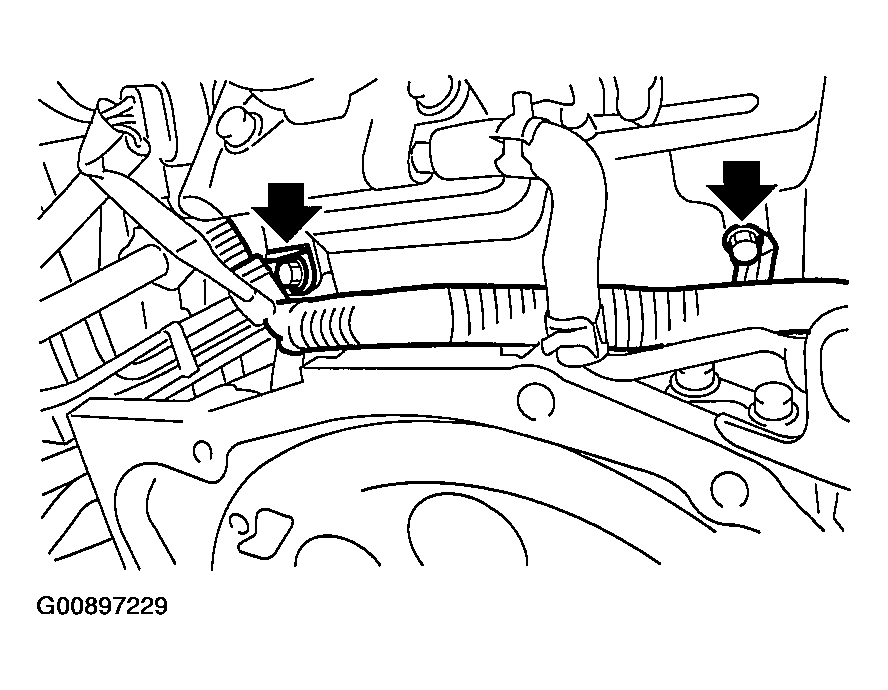

Fig 2: Installing Engine Harness Bracket

Courtesy of SUBARU OF AMERICA, INC.
