Crankshaft Position Sensor: Removal

Disconnect ground cable from battery.

Fig 1: >Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake chamber.
Refer to REMOVAL , Air Intake Chambers.
Remove engine harness bracket from intake manifold.

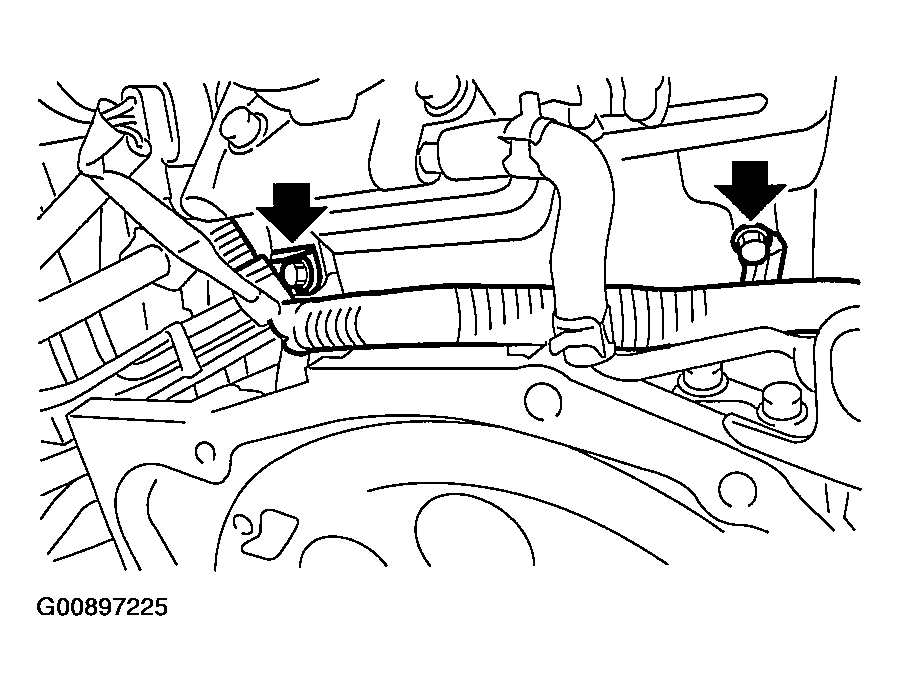

Fig 2: Removing Engine Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove service hole cover.

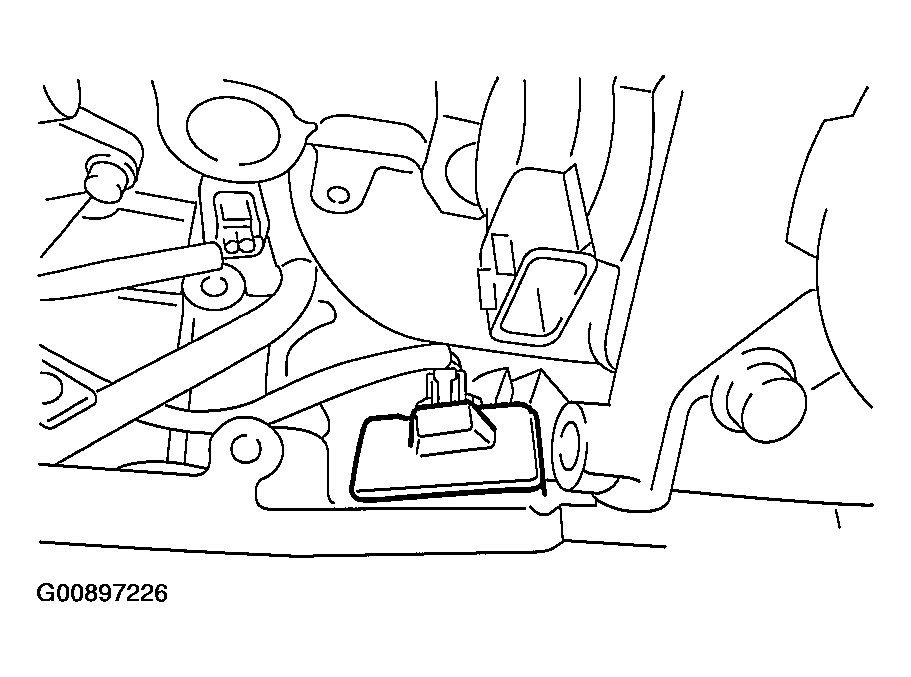

Fig 3: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which install crankshaft position sensor to cylinder block.
Remove crankshaft position sensor, and disconnect connector from it.

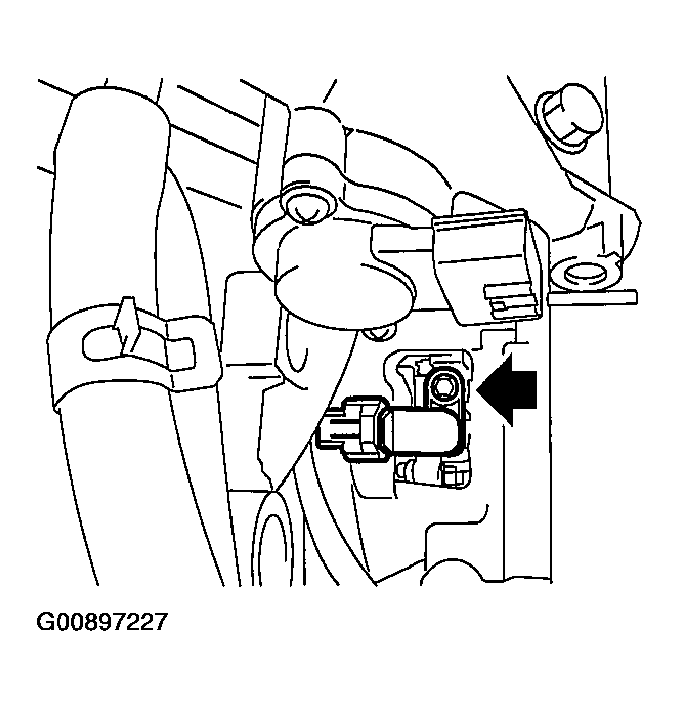

Fig 4: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
