Engine Control Module: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.
Detach floor mat of front passenger seat.
Remove protect cover.

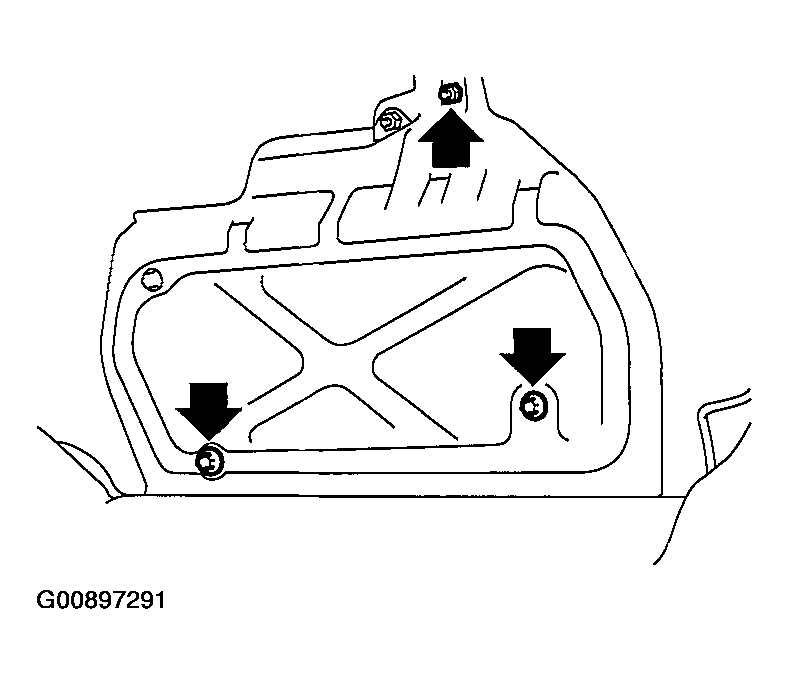

Fig 2: Removing Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which hold ECM to bracket.

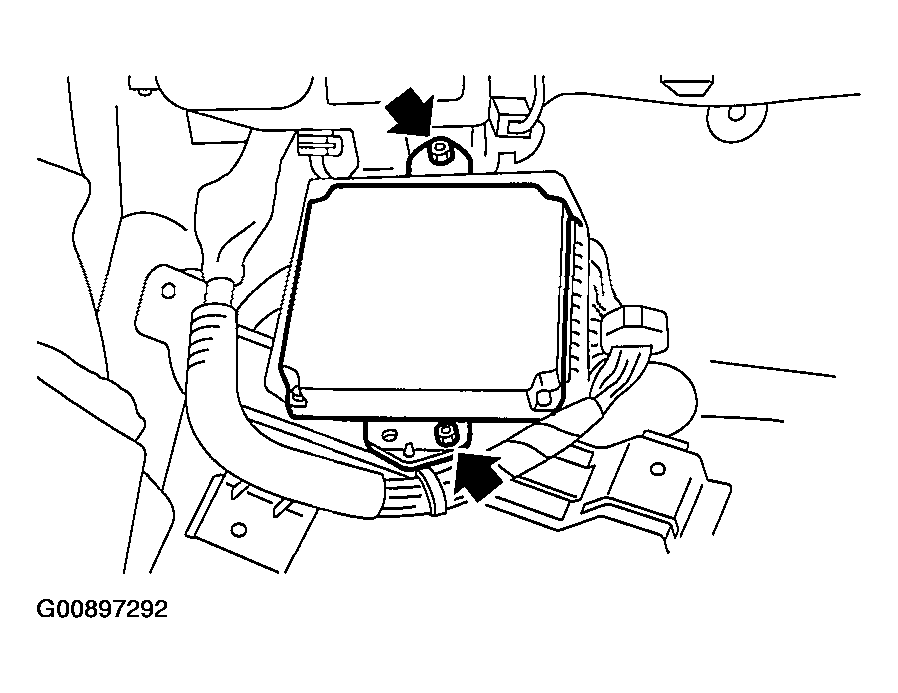

Fig 3: Removing ECM Bracket Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove clip from bracket.

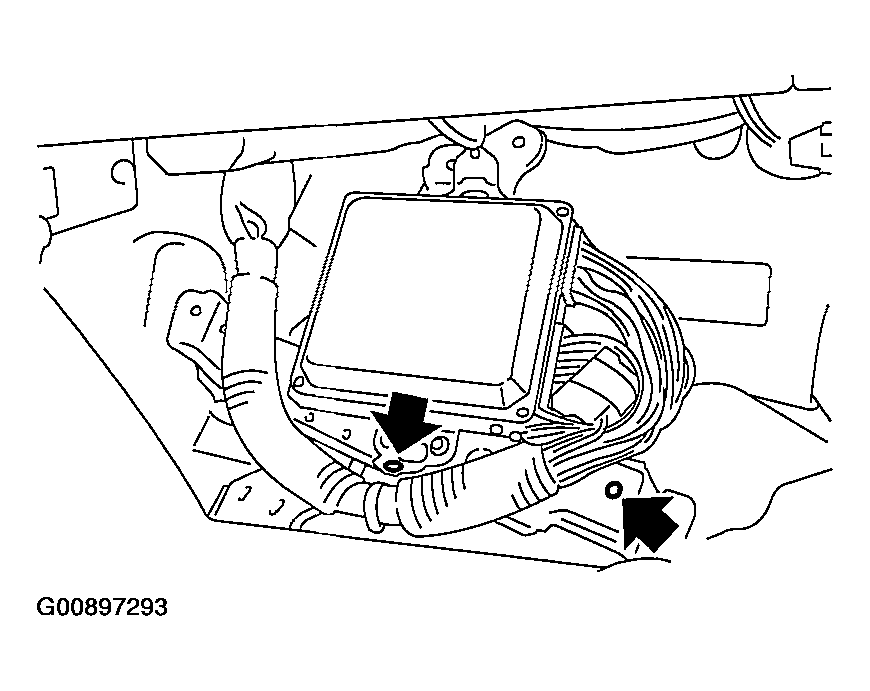

Fig 4: Removing Clip From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect ECM connectors and take out ECM.
