Fuel Tank: Removal

Set vehicle on the lift.
Release fuel pressure. Refer to FUEL .
Drain fuel from fuel tank. Refer to FUEL .
Remove holder clip which secures fuel tank cord on bracket.

Fig 1: Removing Holder Clip
Courtesy of SUBARU OF AMERICA, INC.

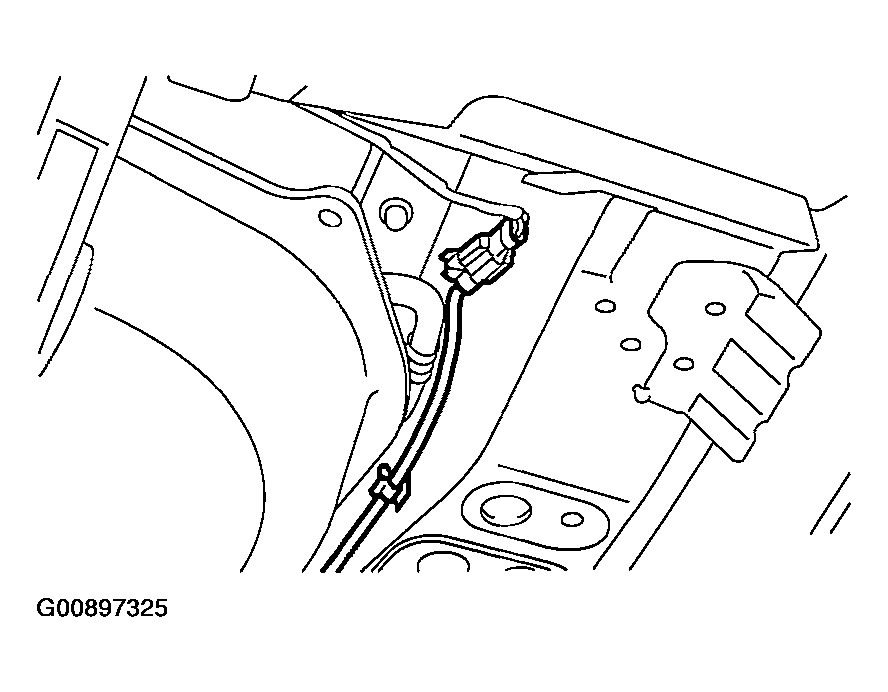

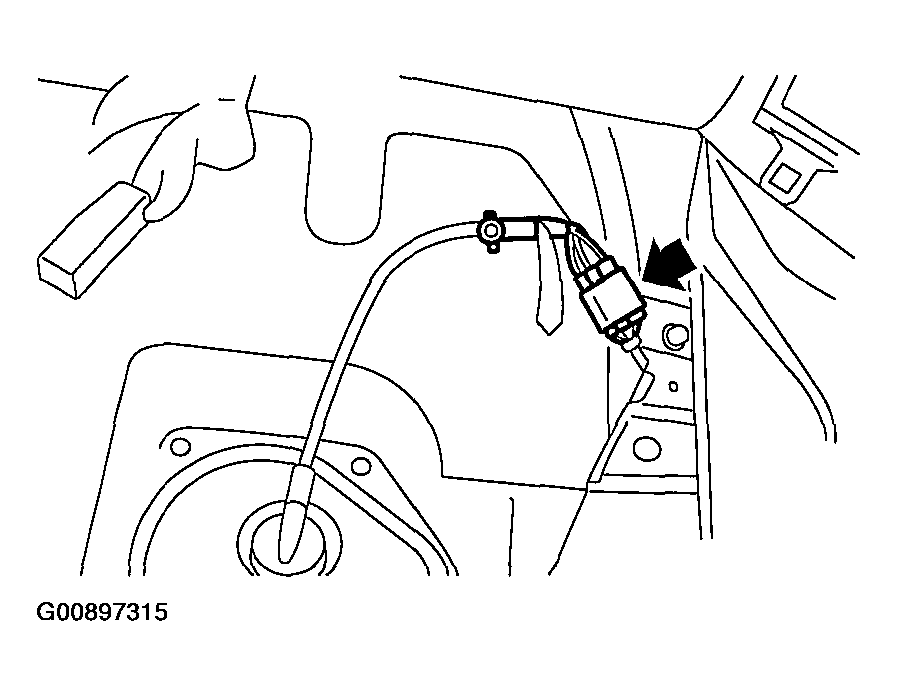

Disconnect connector of fuel tank cord to rear harness.

Fig 2: Disconnecting Fuel Tank Cord Connector
Courtesy of SUBARU OF AMERICA, INC.
Push grommet which holds fuel tank cord on service hole cover into body side.

Fig 3: Pushing Fuel Tank Cord Grommet
Courtesy of SUBARU OF AMERICA, INC.

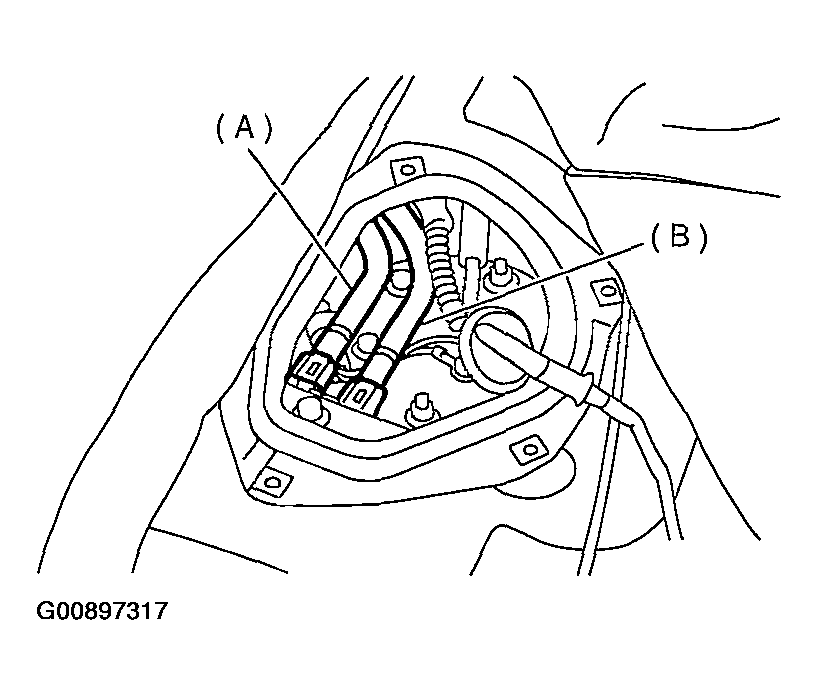

Using ST, separate quick connector of fuel delivery (A) and return hose (B). Refer to FUEL DELIVERY, RETURN AND EVAPORATION LINES .
ST 42099AEOOO CONNECTOR REMOVER

Fig 4: Separating Quick Connector Of Fuel Delivery
Courtesy of SUBARU OF AMERICA, INC.
Remove parking brake cable.
1. Remove console box. Refer to REMOVAL , Console Box.

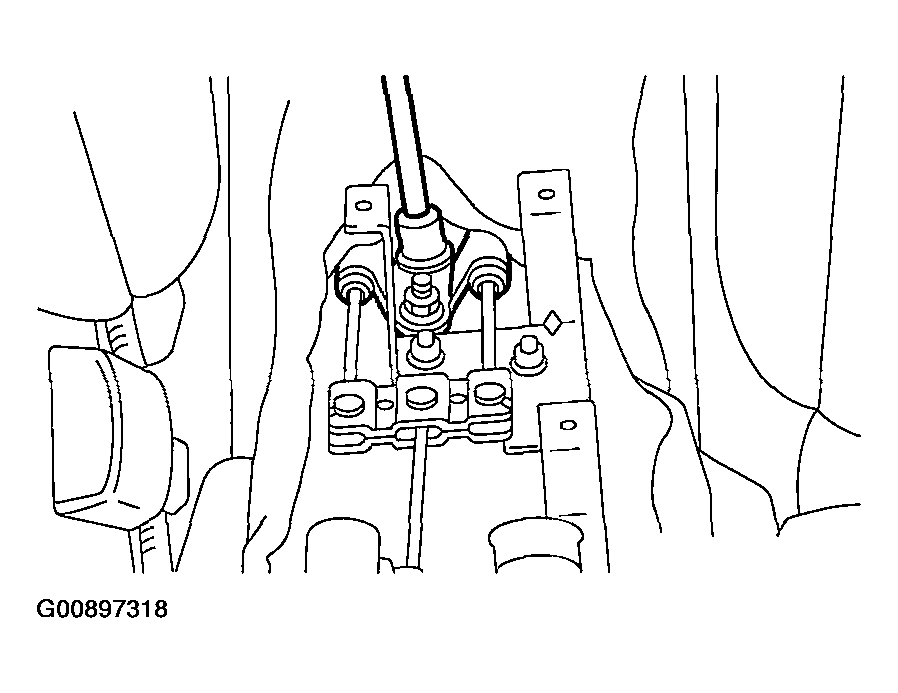

2. Remove parking brake bracket and disconnect parking brake cable from equalizer. Refer to REMOVAL & INSTALLATION , Parking Brake Cable.

  Fig 5: Disconnecting Parking Brake Cable From Equalizer
  Courtesy of SUBARU OF AMERICA, INC.
Remove trunk trim. (Sedan model) Refer to REMOVAL , Trunk Trim.
Remove rear quarter lower trim.
Refer to REMOVAL , Rear Quarter Trim.
Remove pipe protector.

Fig 6: Removing Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Using ST, separate quick connector of evaporation pipe (A). Refer to FUEL DELIVERY, RETURN AND EVAPORATION LINES .
ST 42099AEOOO CONNECTOR REMOVER

Fig 7: Separating Evaporation Pipe Quick Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove wheel nuts from rear wheels.
Lift-up the vehicle.
Remove rear wheel.

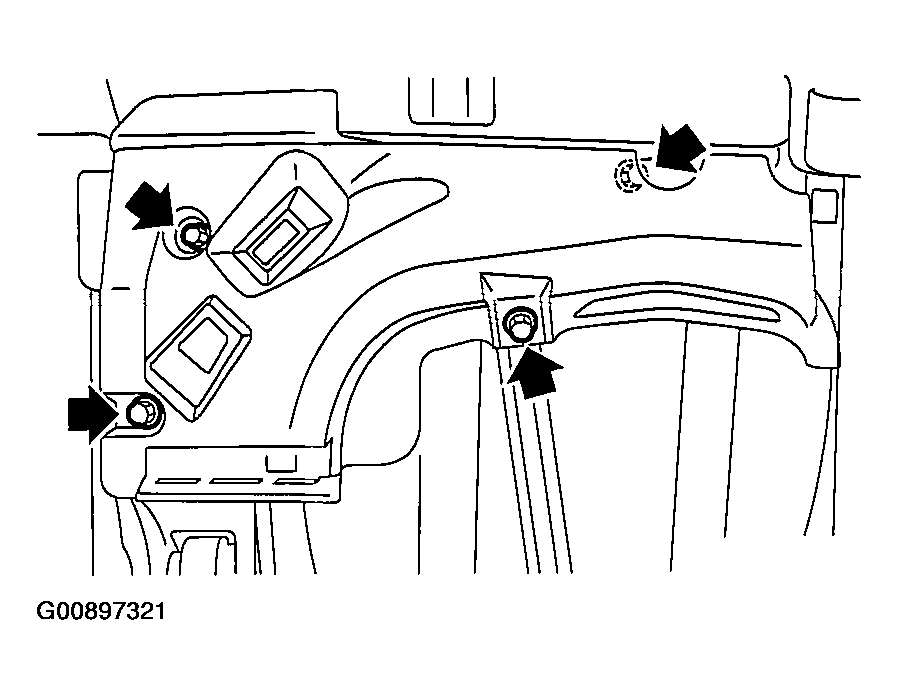

Remove front side fuel tank cover.

Fig 8: Removing Front Side Fuel Tank Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove rear exhaust pipe and muffler.
NOTE: To facilitate removal, apply a coat of SUBARU CRC to matching area of rubber cushions in advance.

SUBARU CRC (Part No. 004301003)

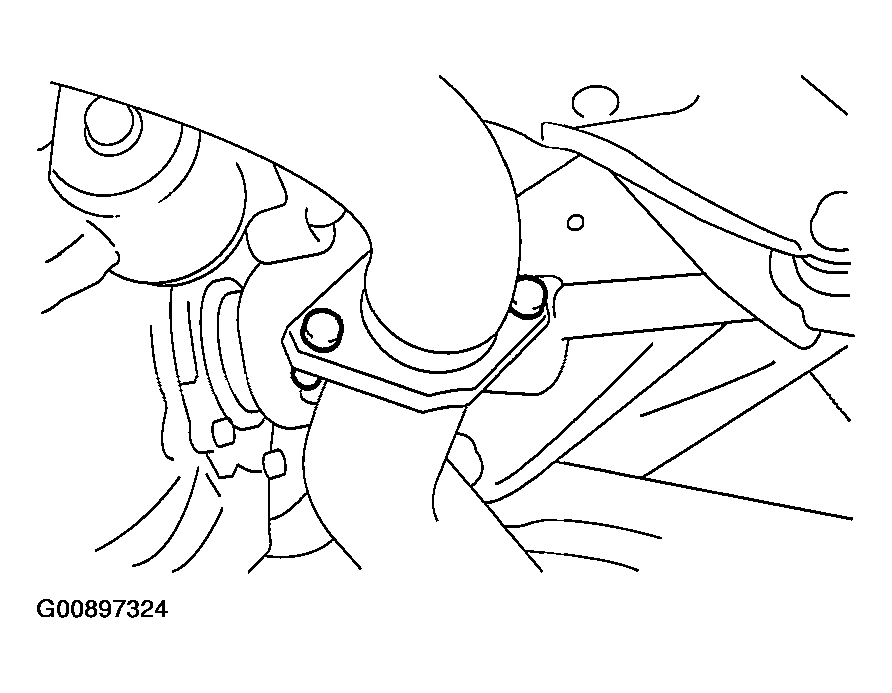

1. Separate rear exhaust pipe from center exhaust pipe.

  Fig 9: Separating Rear Exhaust Pipe
  Courtesy of SUBARU OF AMERICA, INC.

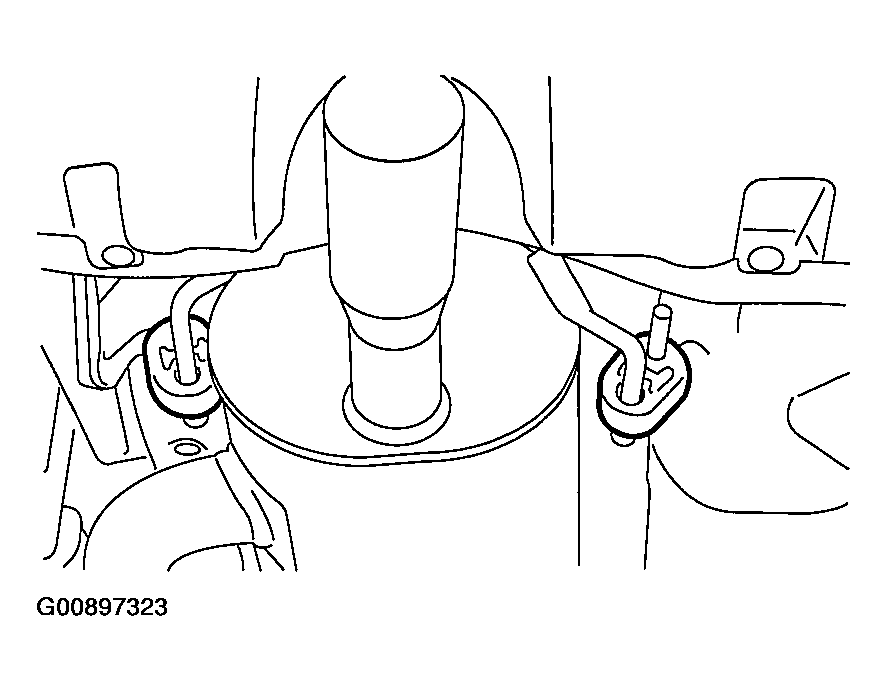

2. Remove left and right rubber cushions.
  CAUTION: Be careful not to pull down muffler.

  Fig 10: Removing Left And Right Rubber Cushions
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove front rubber cushion and detach muffler assembly.

  Fig 11: Removing Front Rubber Cushion & Dettaching Muffler Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Remove propeller shaft. .

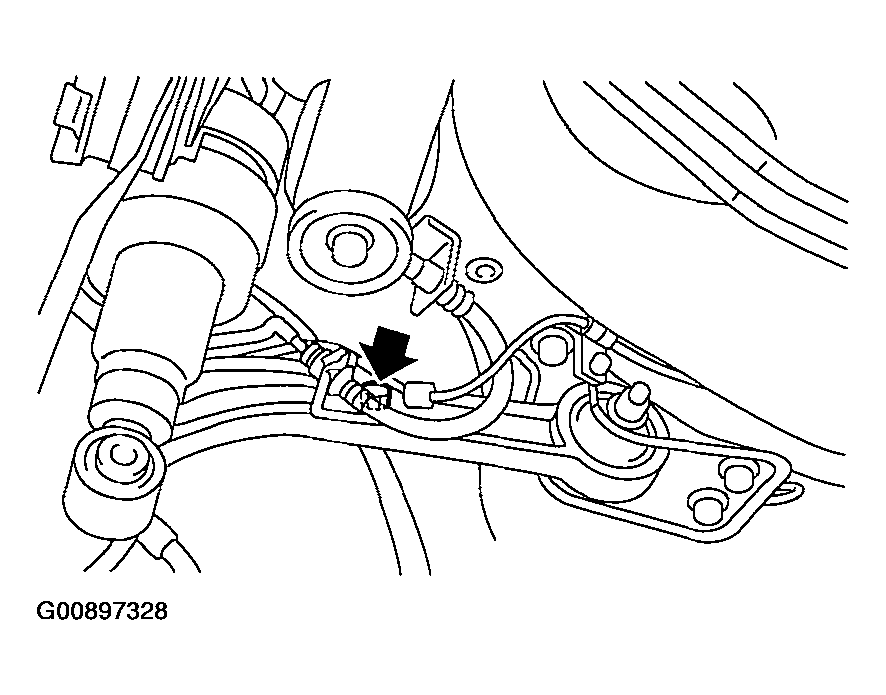

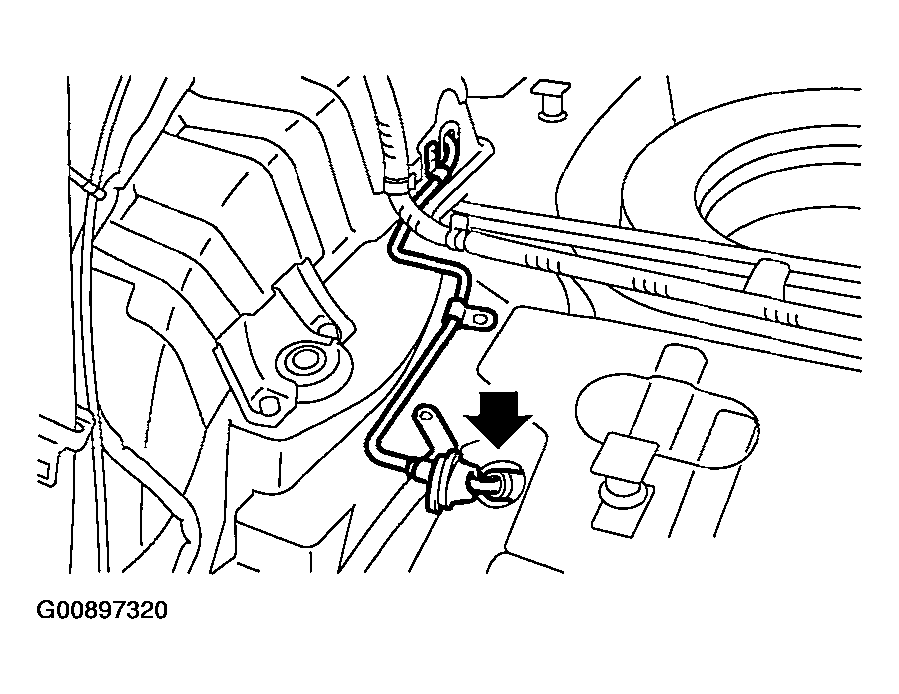

Disconnect connector from ABS sensor.

Fig 12: Disconnecting Connector From ABS Sensor
Courtesy of SUBARU OF AMERICA, INC.

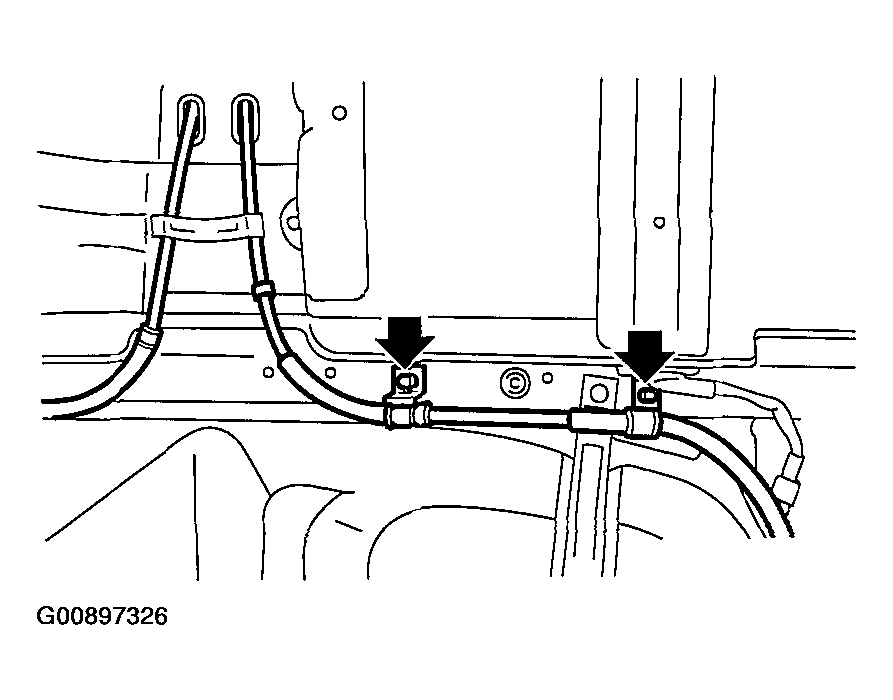

Remove bolts which hold parking brake cable holding bracket.
Remove parking brake cable from cabin by forcibly pulling it backward.

Fig 13: Removing Parking Brake Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold parking brake cable holding bracket.

Fig 14: Removing Bolts Which Hold Parking Brake Cable Holding Bracket
Courtesy of SUBARU OF AMERICA, INC.

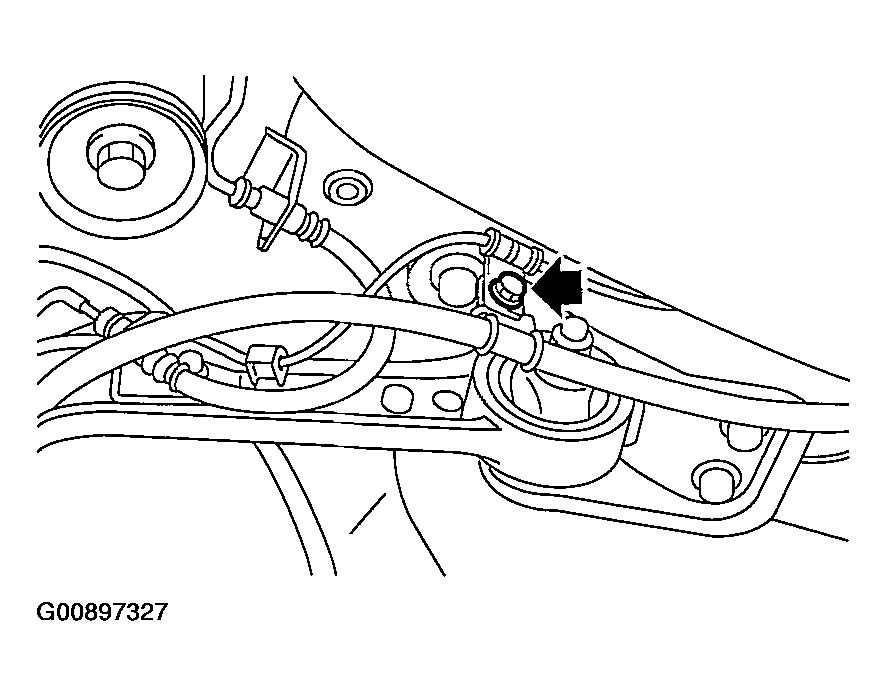

Remove bolts which hold rear brake hoses holding bracket.

Fig 15: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.

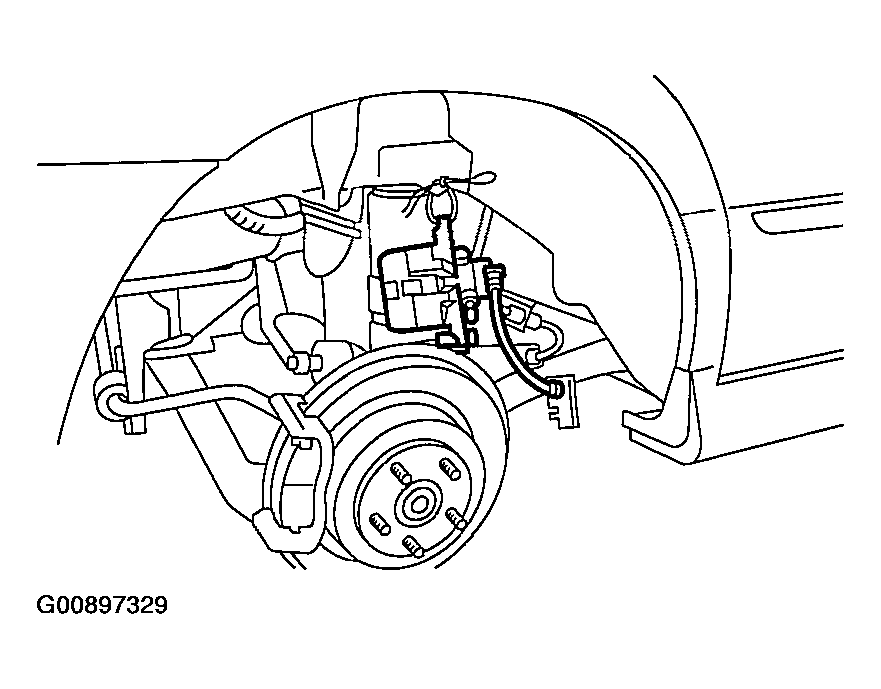

Remove rear brake caliper, then tie it up to the body side of the vehicle as shown in figure.

Fig 16: Removing Rear Brake Caliper
Courtesy of SUBARU OF AMERICA, INC.
Remove rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support rear differential with transmission jack.

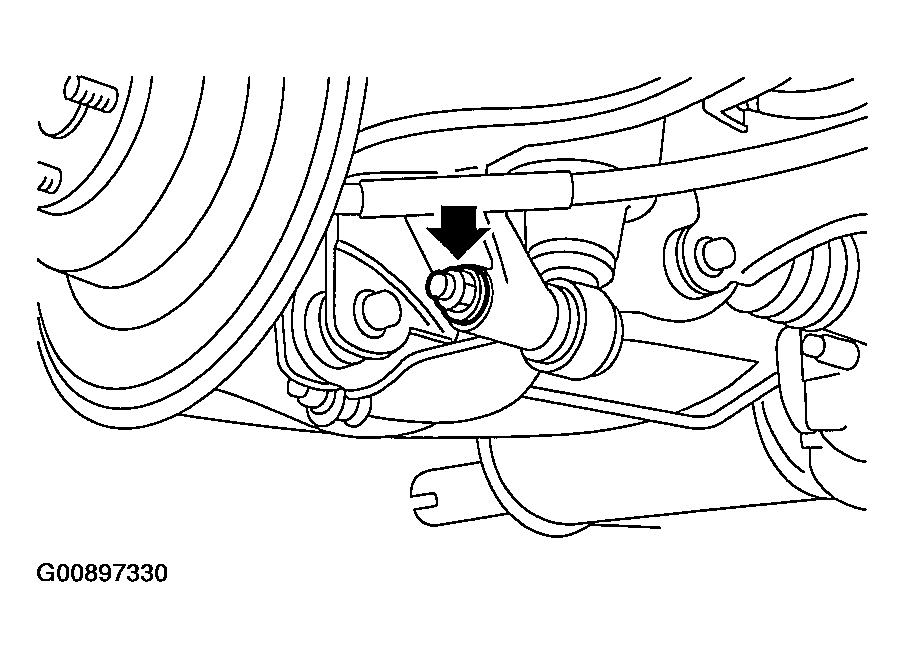

2. Remove bolt which holds rear shock absorber to rear suspension arm.

  Fig 17: Removing Bolt Which Holds Rear Shock Absorber
  Courtesy of SUBARU OF AMERICA, INC.

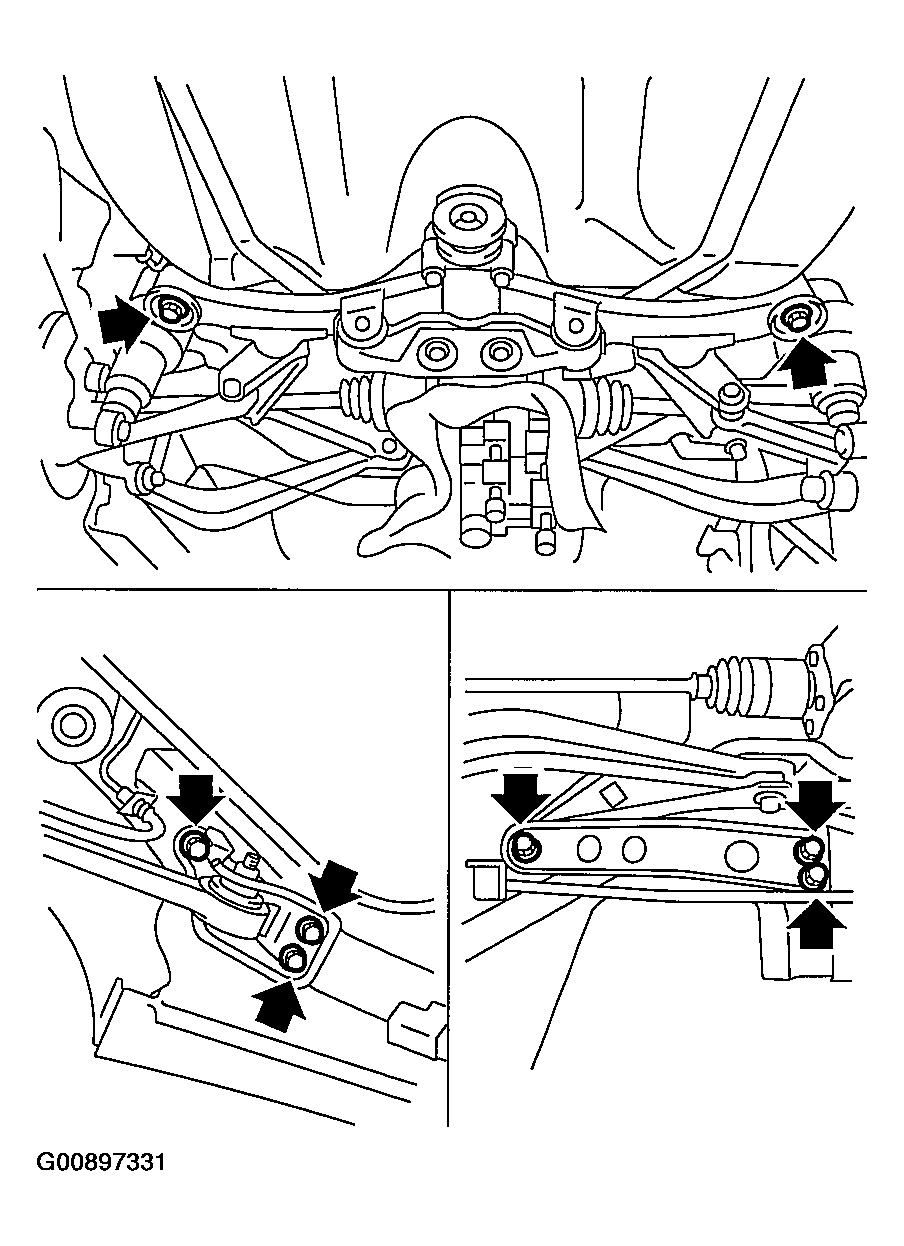

3. Remove bolts which secure rear suspension assembly to body.

  Fig 18: Removing Bolts Which Secure Rear Suspension Assembly To Body
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove rear suspension assembly.

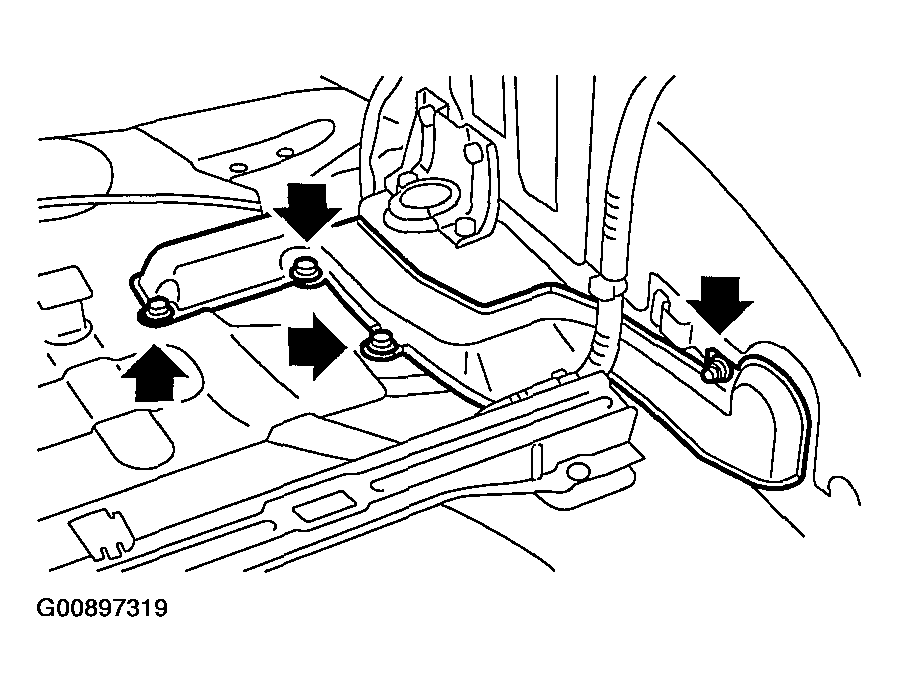

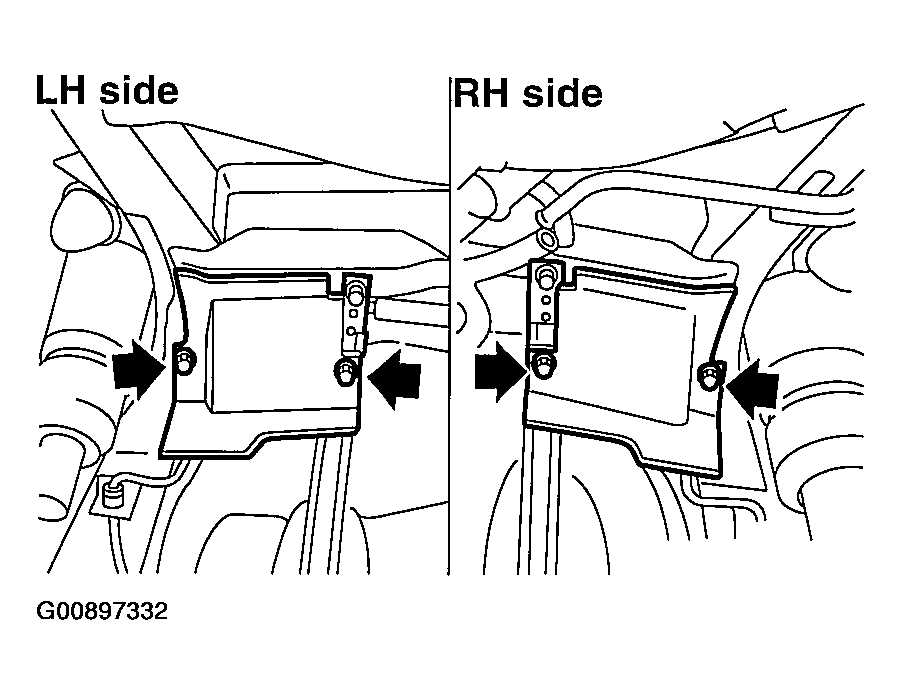

Remove rear side fuel tank cover.

Fig 19: Removing Rear Side Fuel Tank Cover
Courtesy of SUBARU OF AMERICA, INC.

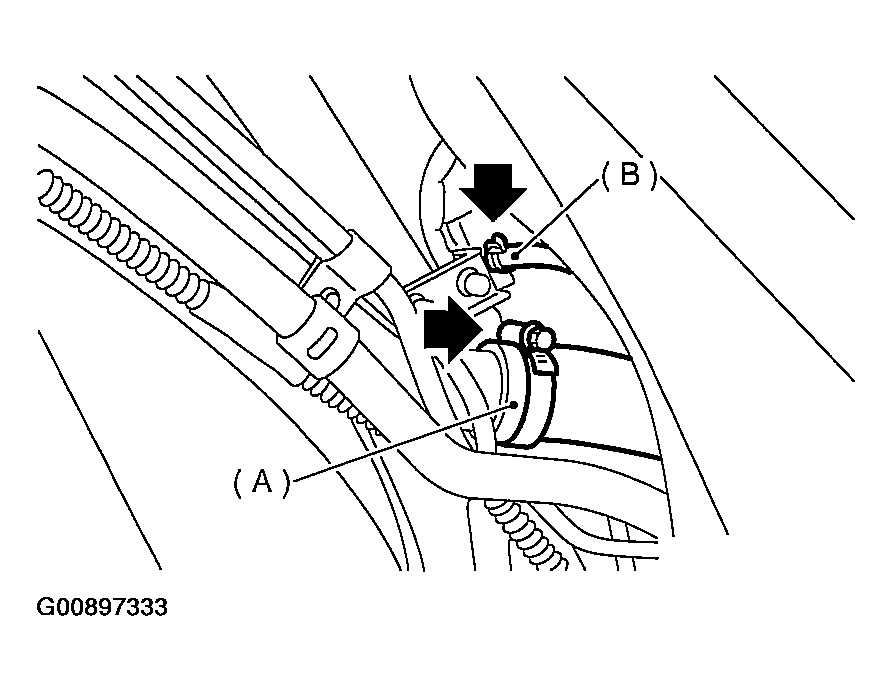

Disconnect fuel filler hose (A) and fuel tank pressure sensor (B) hose.

Fig 20: Disconnecting Fuel Filler Hose & Fuel Tank Pressure Sensor Hose
Courtesy of SUBARU OF AMERICA, INC.
Disconnect air vent hose (A) from evaporation pipe assembly and disconnect evaporation hose (I) from pressure control solenoid valve.

Fig 21: Disconnecting Air Vent Hose From Evaporation Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.

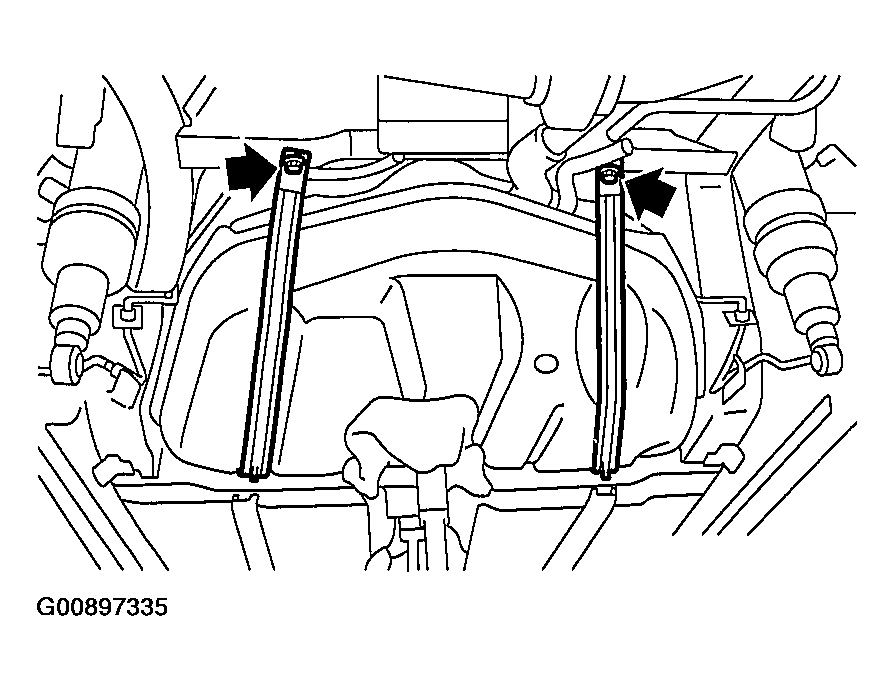

Support fuel tank with transmission jack, remove bolts from bands and dismount fuel tank from the vehicle.
WARNING: A helper is required to perform this work.

Fig 22: Removing Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
