Induction Valve: Removal

  1. Disconnect ground cable from battery.
  2. Remove intake manifold.

    Refer to INTAKE MANIFOLD .

  3. Remove induction valve from intake manifold.

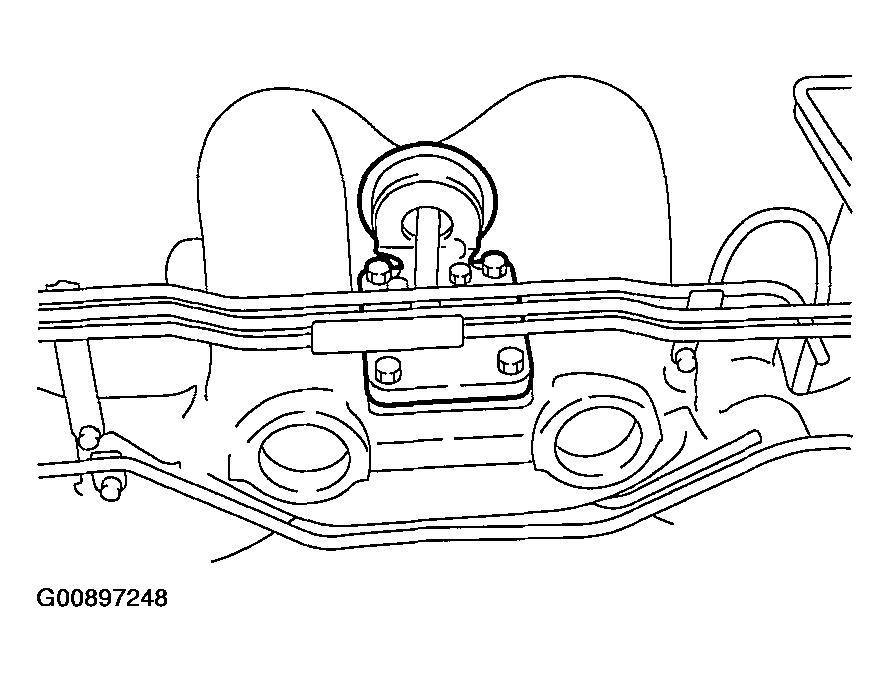

    Fig 1: Removing Induction Valve
    G00897248Courtesy of SUBARU OF AMERICA, INC.
