Intake Manifold Pressure Sensor: Removal

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00897241Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from intake manifold pressure sensor.
  3. Remove intake manifold pressure sensor from throttle body.

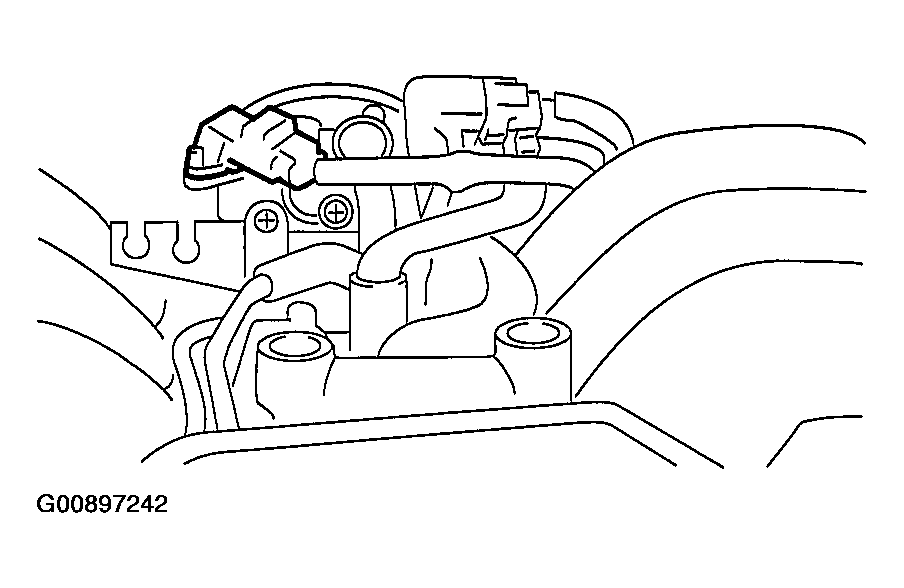

    Fig 2: Removing Intake Manifold Pressure Sensor
    G00897242Courtesy of SUBARU OF AMERICA, INC.
