Intake Manifold: Installation

Install intake manifold onto cylinder heads.
NOTE: Always use new gaskets.

Tightening torque:
1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

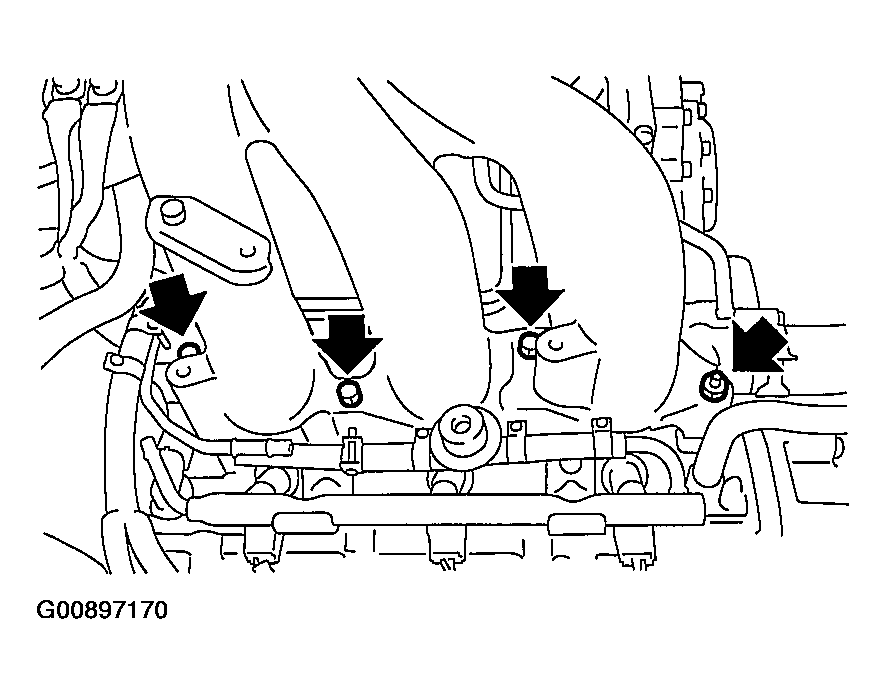

Fig 1: Installing Intake Manifold (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

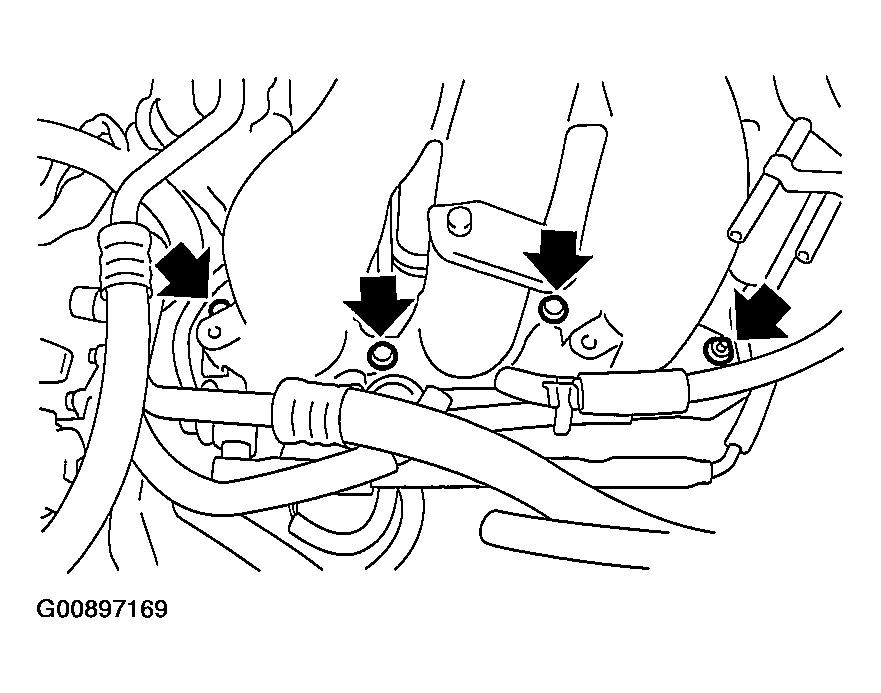

Fig 2: Installing Intake Manifold (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

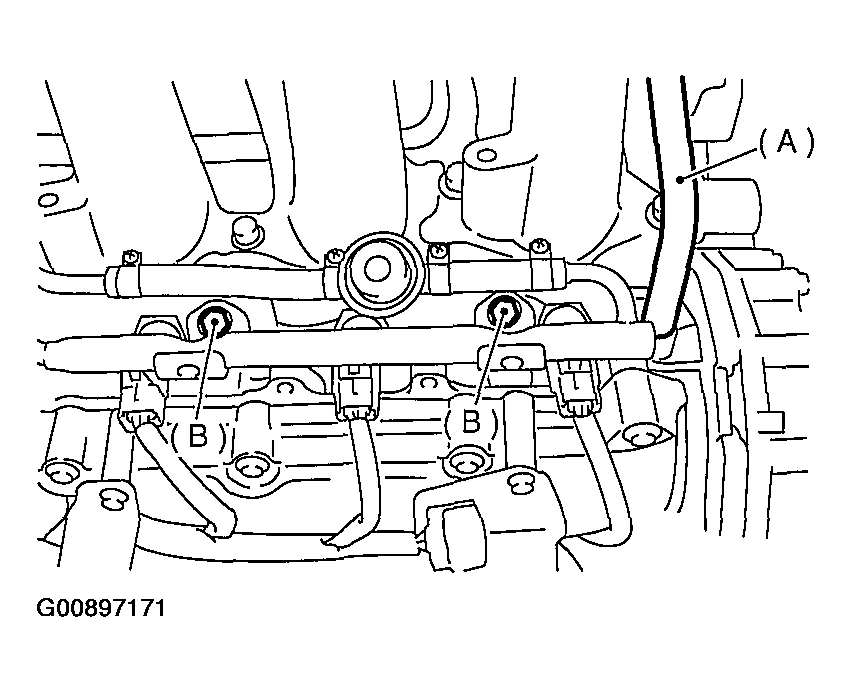

Install the bolt (B), which holds fuel injector pipe RH onto cylinder head.
Tightening torque:
1. 19 N.m (1.9 kgf-m, 14 ft-lb)
Connect air assist hose (A).

Fig 3: Connecting Air Assist Hose
Courtesy of SUBARU OF AMERICA, INC.
Install fuel pipe protector RH.
Tightening torque:
1. 19 N.m (1.9 kgf-m, 14 ft-lb)

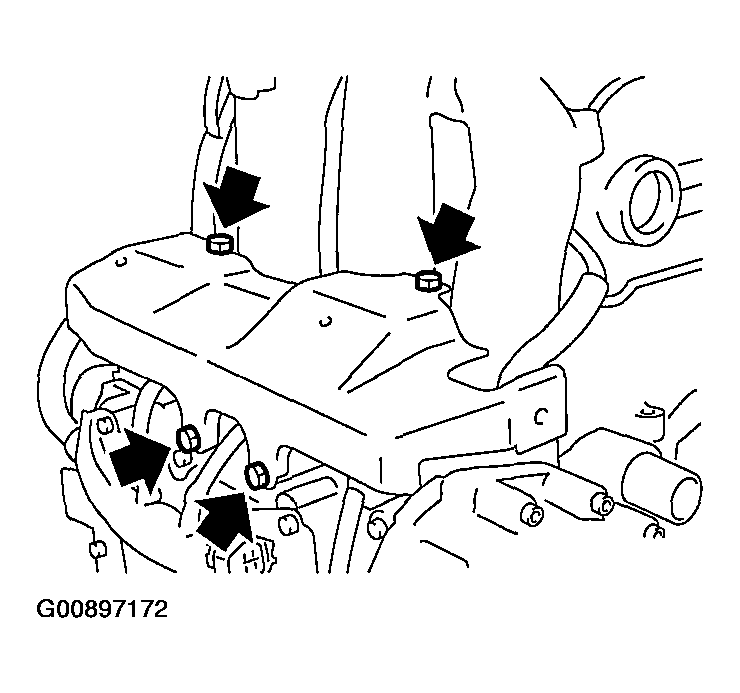

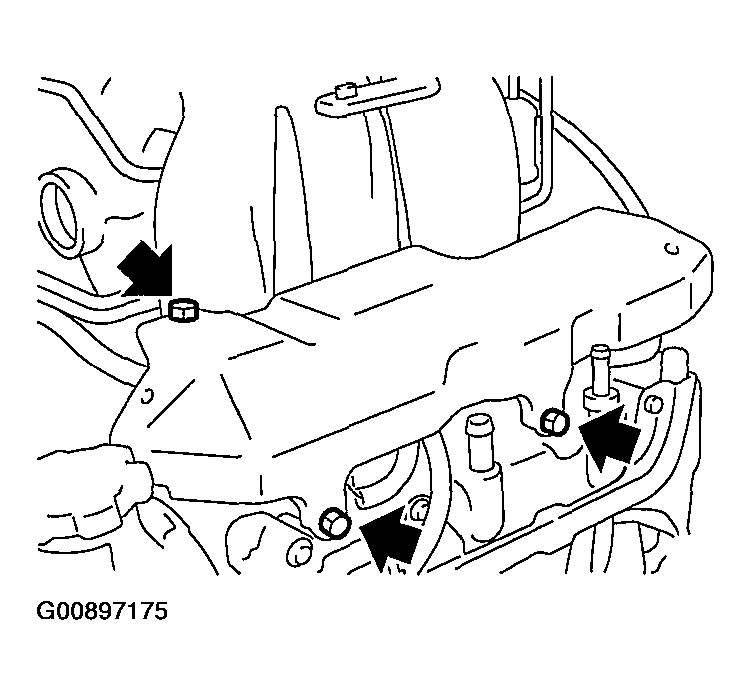

Fig 4: Installing Fuel Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Install ground cable to fuel pipe protector RH.

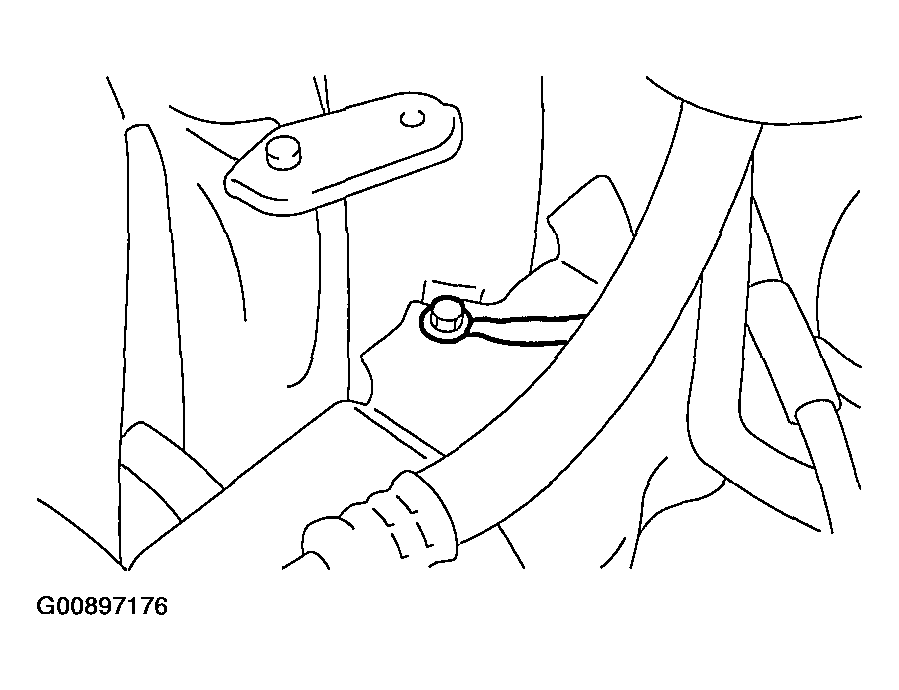

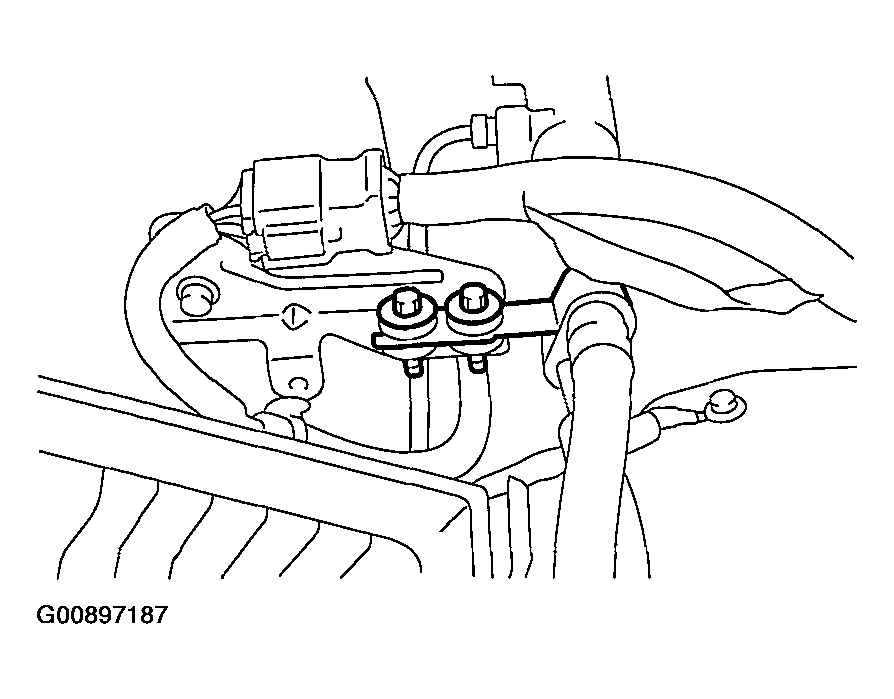

Fig 5: Installing Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the bolt (B) which holds fuel injector pipe RH onto cylinder head.
Tightening torque:
1. 19 N.m (1.9 kgf-m, 14 ft-lb)
Connect air assist hose (A).

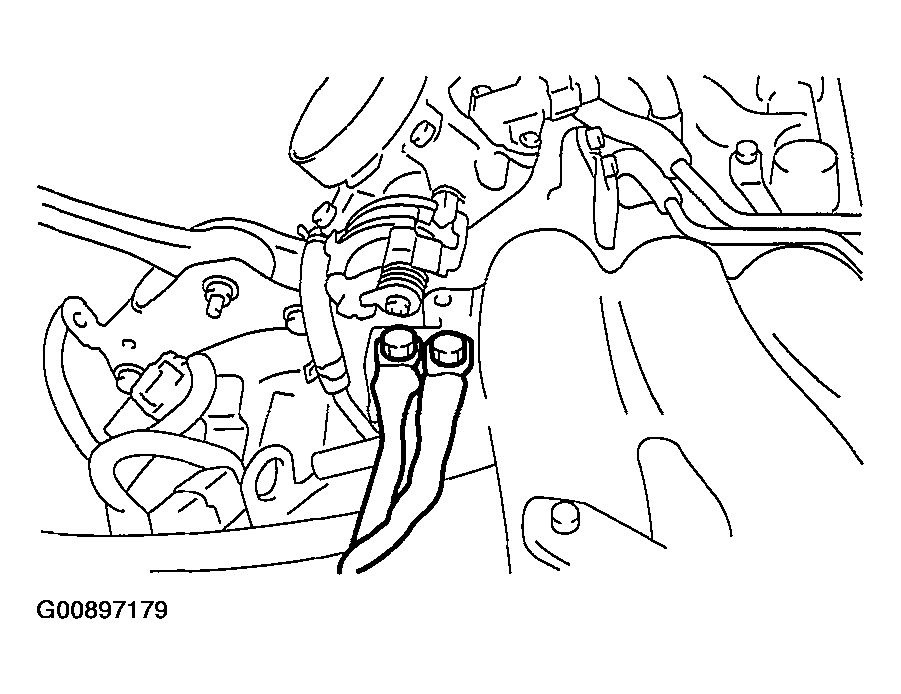

Fig 6: Connecting Air Assist Hose
Courtesy of SUBARU OF AMERICA, INC.
Install fuel pipe protector LH.
Tightening torque:
1. 19 N.m (1.9 kgf-m, 14 ft-lb)
Fig 7: Installing Fuel Pipe Protector
Courtesy of SUBARU OF AMERICA, INC.
Install ground cable to fuel pipe protector LH.

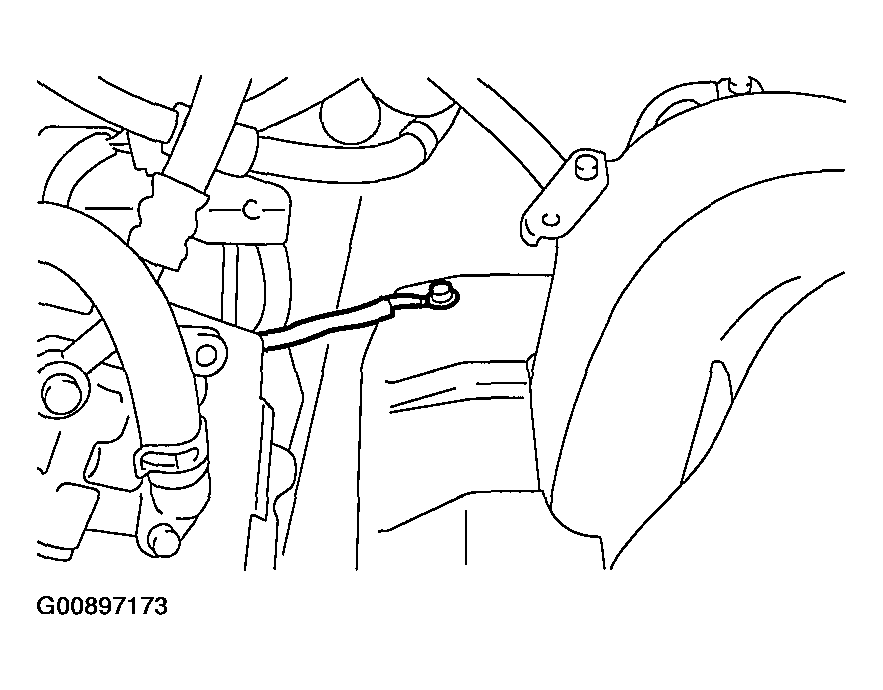

Fig 8: Installing Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Install EGR pipe to EGR valve.
NOTE: Always use new gasket.

Tightening torque:
1. 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

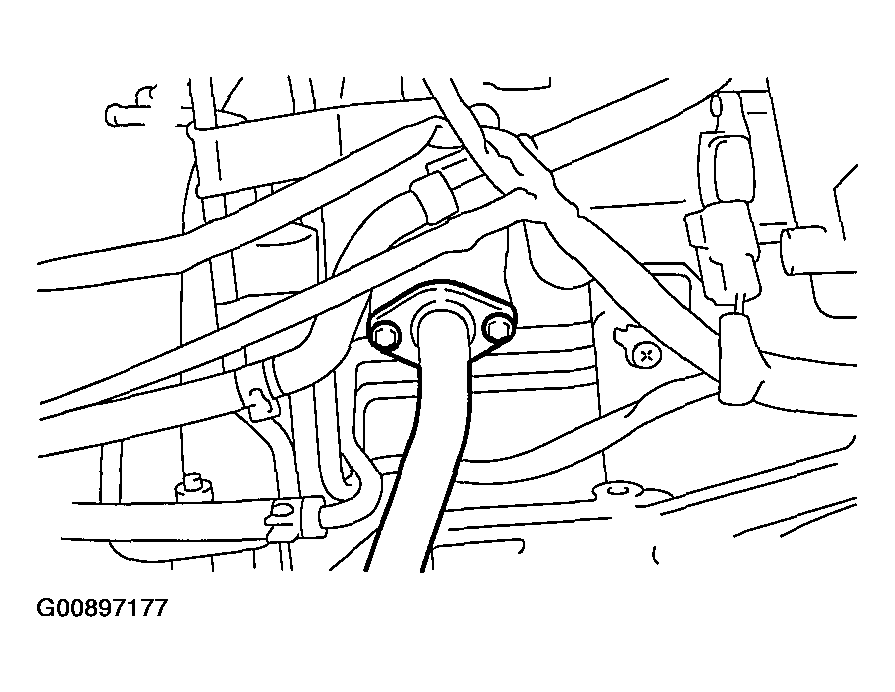

Fig 9: Installing EGR Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect fuel delivery hose, return hose and evaporation hose. Refer to INSTALLATION , Fuel Delivery, Return and Evaporation Lines.

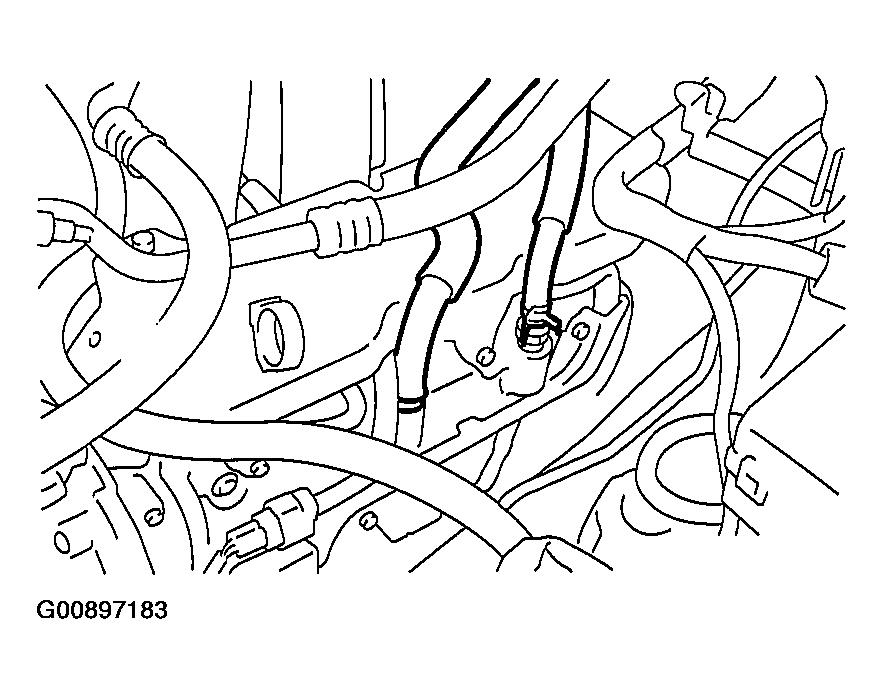

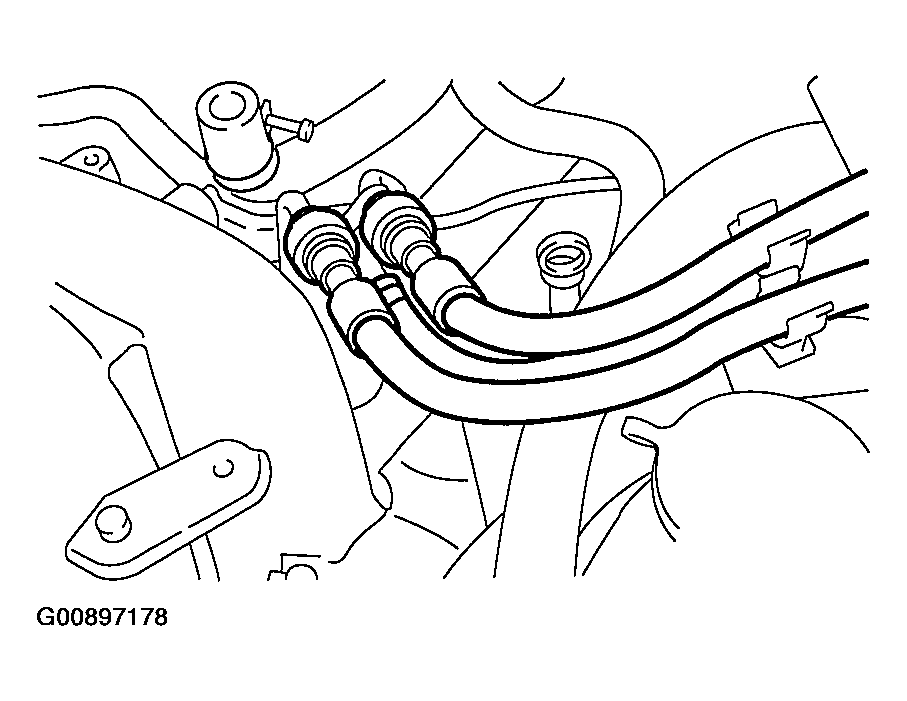

Fig 10: Connecting Fuel Delivery Hose, Return Hose And Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect engine ground cable to intake manifold.

Fig 11: Connecting Engine Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Connect engine harness connectors to bulkhead connectors.

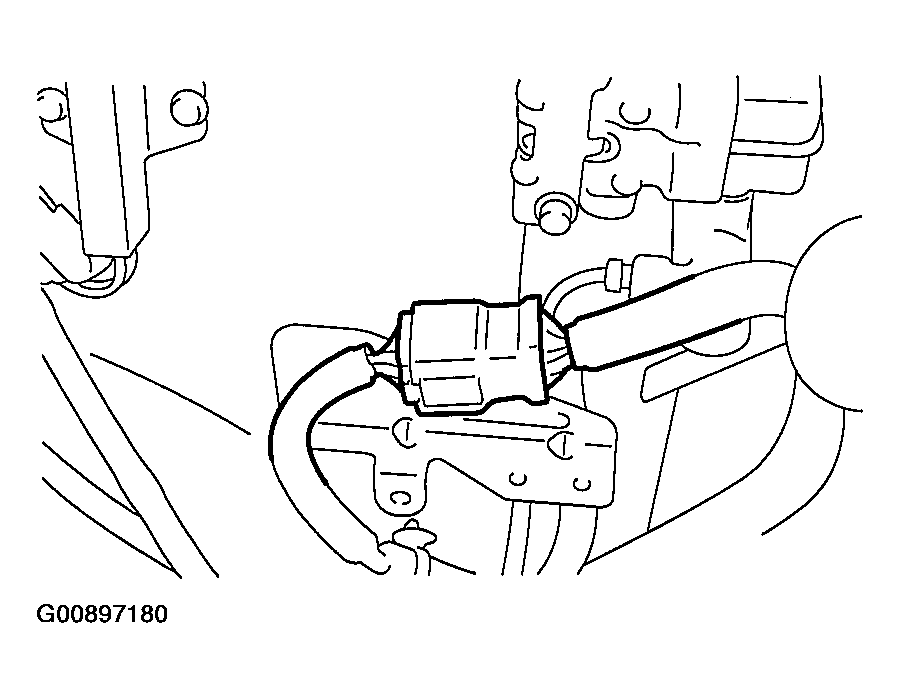

Fig 12: Connecting Engine Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.
Connect brake booster hose.

Fig 13: Connecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect engine coolant hose to throttle body.

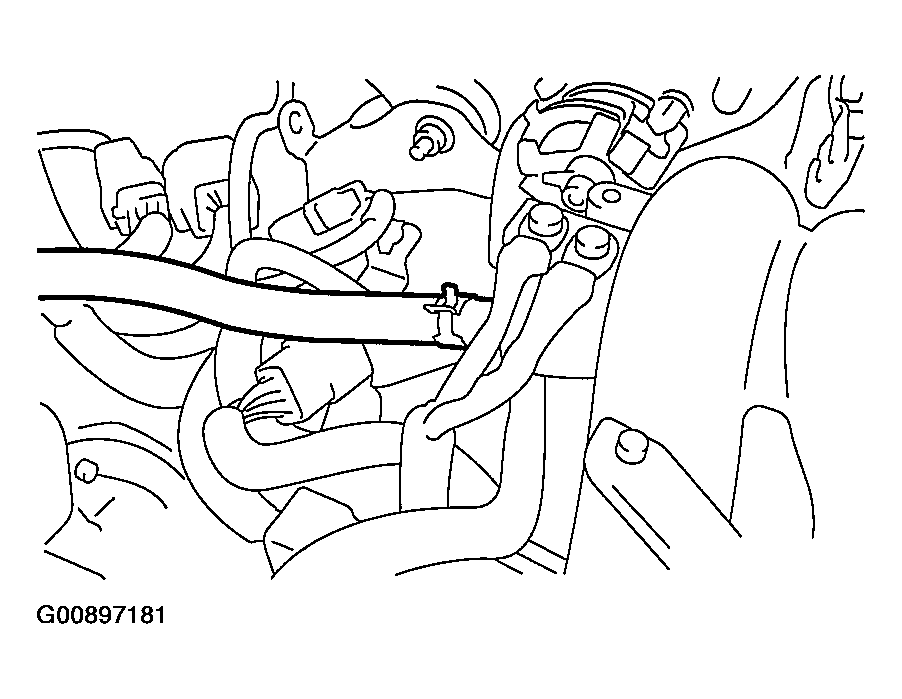

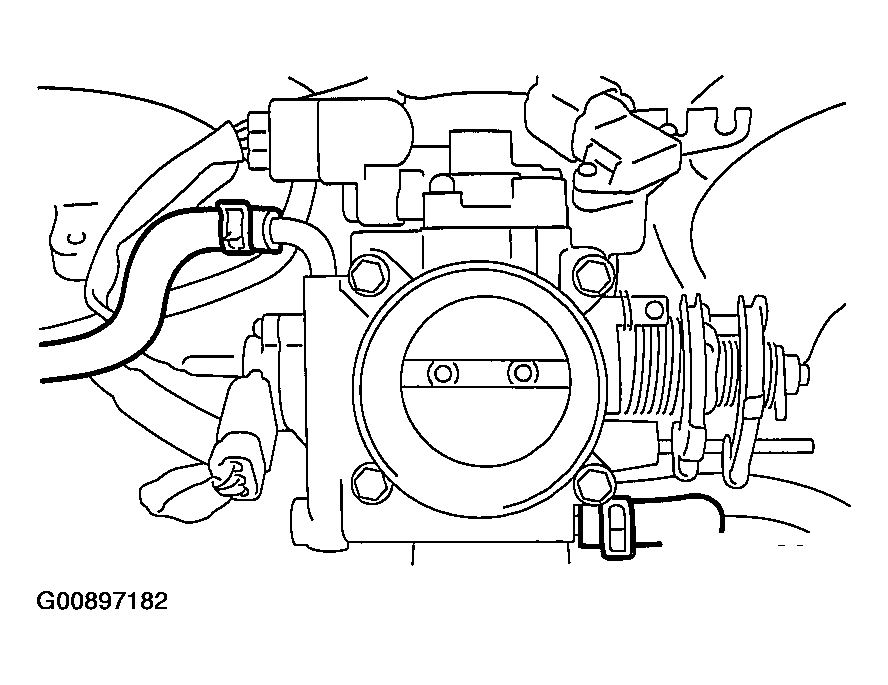

Fig 14: Connecting Engine Coolant Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect PCV hose to cylinder head cover.

Fig 15: Connecting PCV Hose
Courtesy of SUBARU OF AMERICA, INC.
Install power steering pump and tank on brackets.
1. Install power steering tank on bracket.

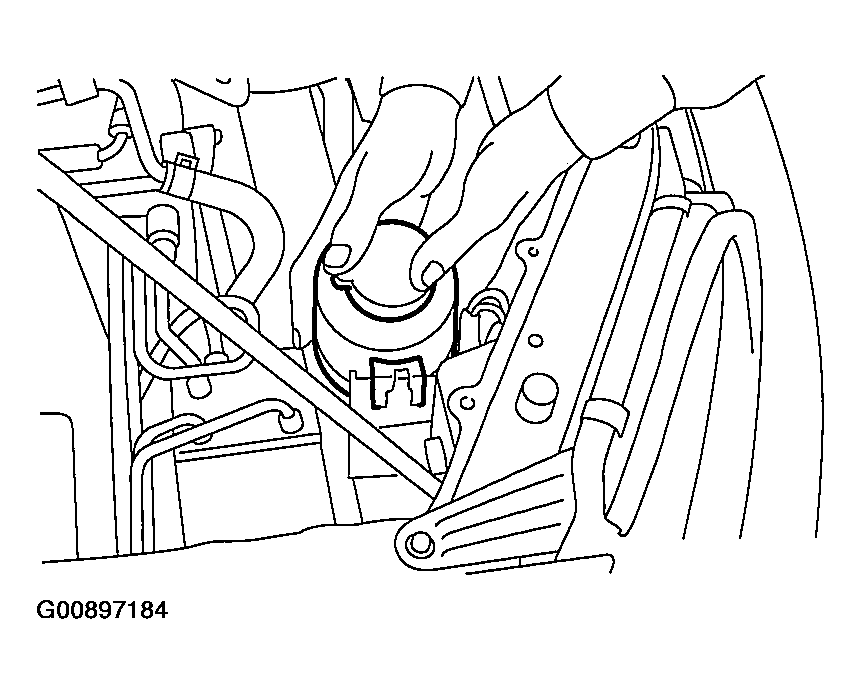

  Fig 16: Installing Power Steering Tank
  Courtesy of SUBARU OF AMERICA, INC.
2. Connect connector to power steering pump switch.

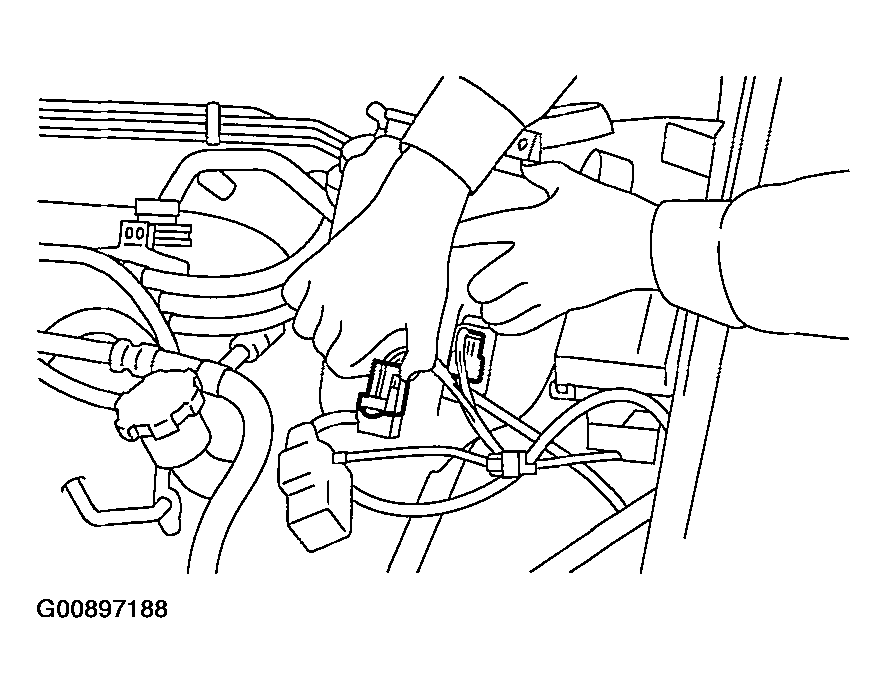

  Fig 17: Connecting Power Steering Pump Switch Connector
  Courtesy of SUBARU OF AMERICA, INC.
3. Tighten bolts which install power steering pump on bracket.
  Tightening torque:
  1. 20.1 N.m (2.05 kgf-m, 14.8 ft-lb)

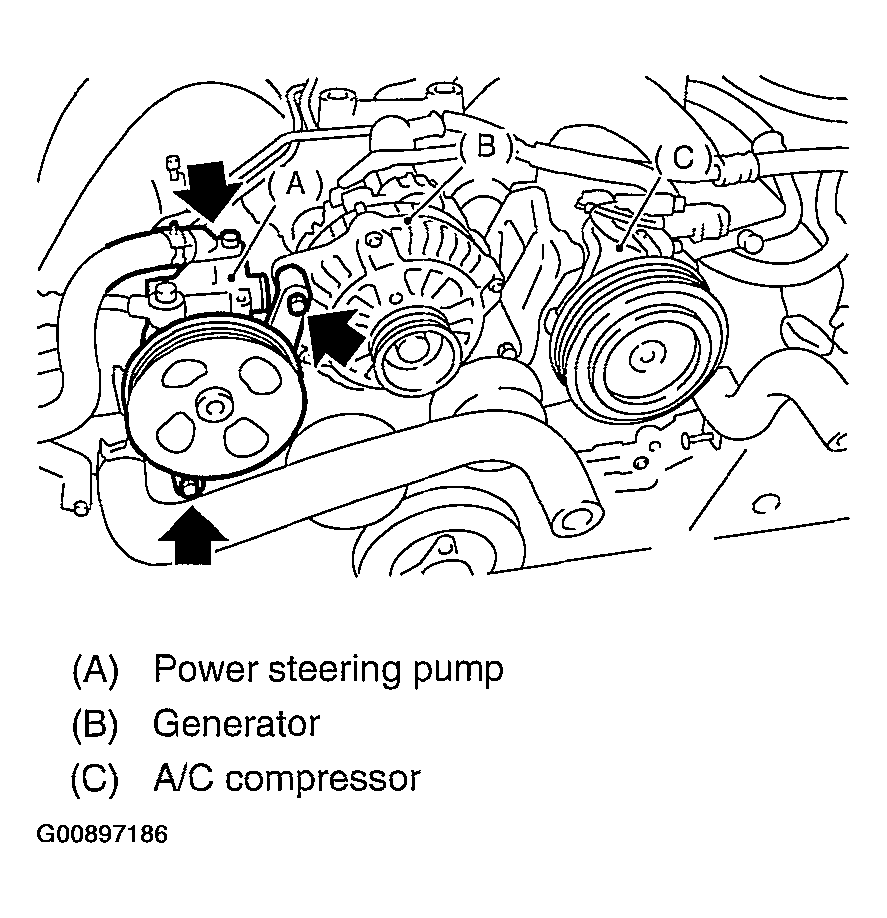

  Fig 18: Identifying Power Steering Pump Bolts
  Courtesy of SUBARU OF AMERICA, INC.
4. Install power steering pipes with bracket.

  Fig 19: Installing Power Steering Pipes
  Courtesy of SUBARU OF AMERICA, INC.
5. Install V-belt. Refer to INSTALLATION , V-belt.
Connect rear window washer hose to washer motor.
Connect front window washer motor connector.
Connect rear window washer motor connector.

Fig 20: Connecting Rear Window Washer Motor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install washer tank on body.

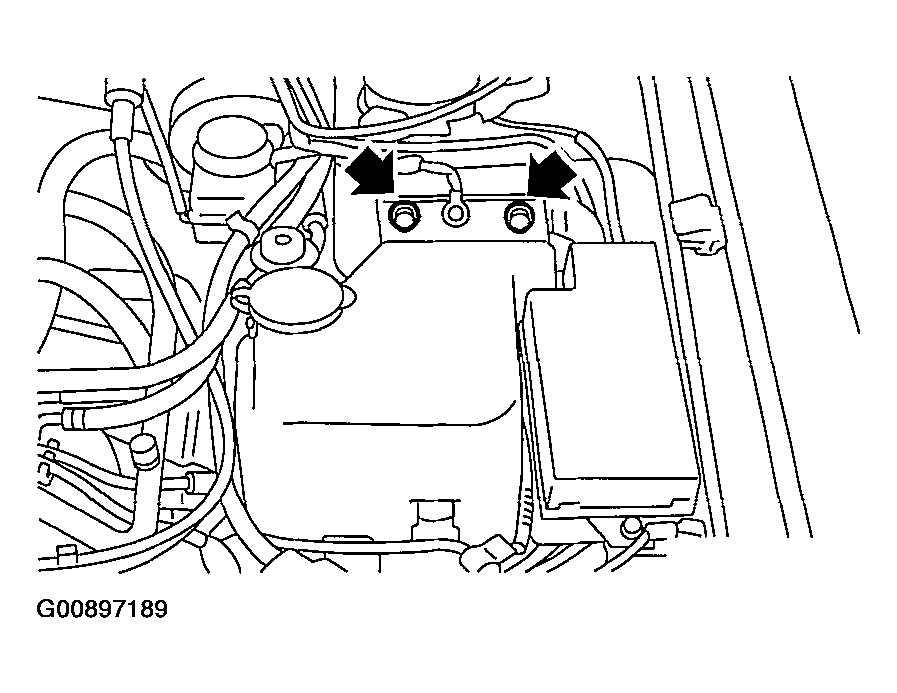

Fig 21: Installing Washer Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect accelerator cable (A).
Connect cruise control cable (B). (With cruise control models)

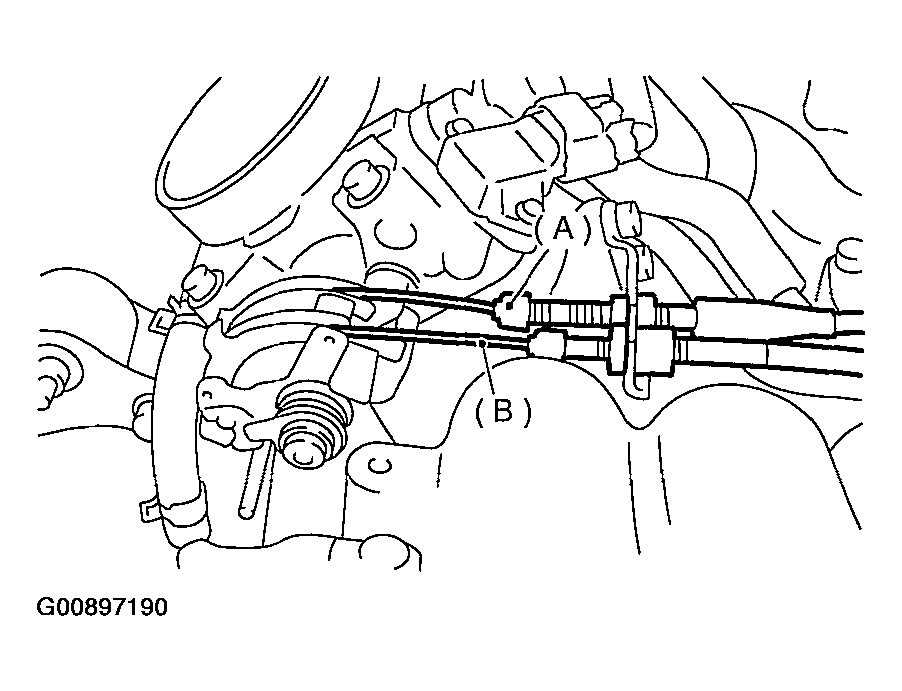

Fig 22: Connecting Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Install air intake duct, air cleaner and air intake chamber. Refer to INSTALLATION , Air Intake Duct and INSTALLATION , Air Cleaner and INSTALLATION , Air Intake Chambers.
Connect connector to fuel pump relay.

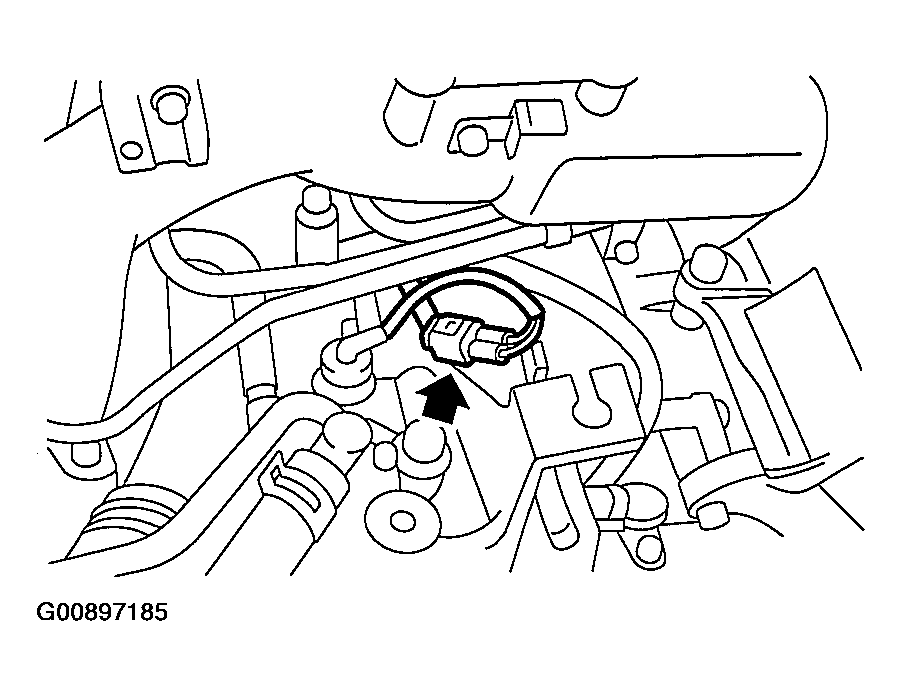

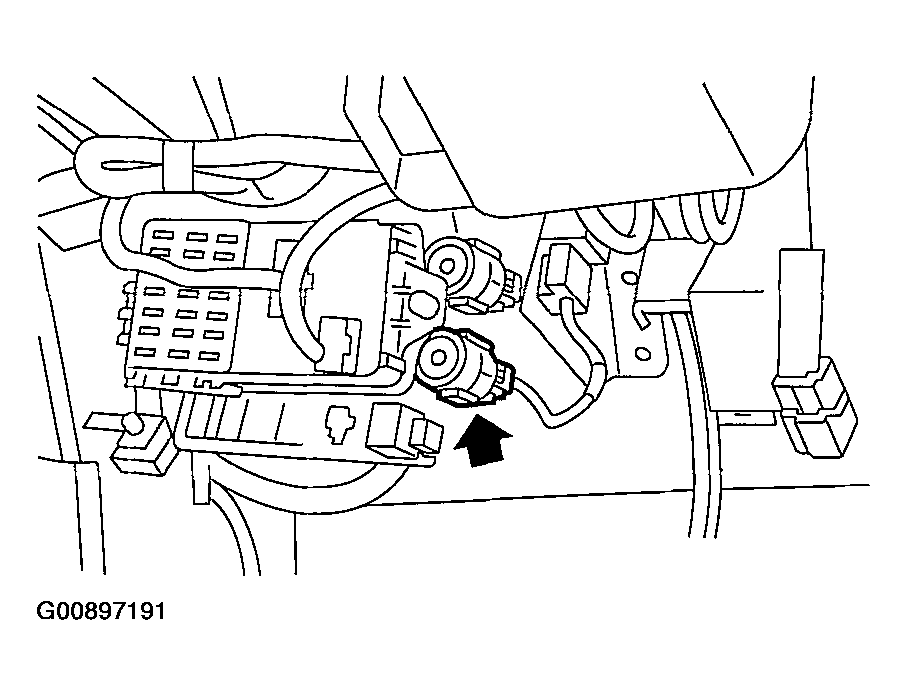

Fig 23: Connecting Fuel Pump Relay Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect battery ground cable.

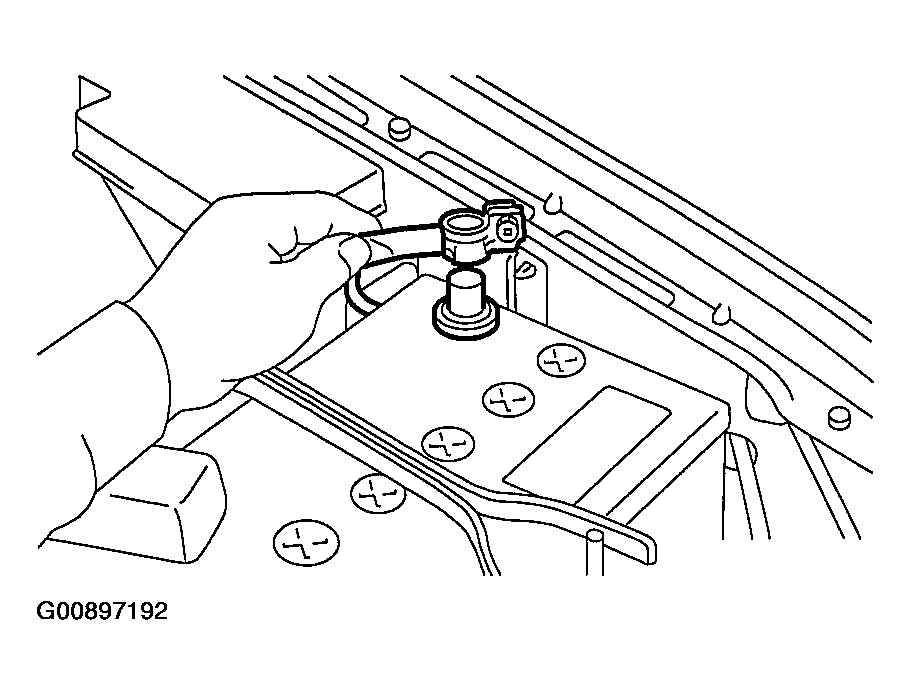

Fig 24: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
