Operating Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Apply grease (SUNLIGHT 2: P/N 003602010) to the contact point of the release lever and operating cylinder.
Install in the reverse order of removal.
Before installing the operating cylinder, apply grease (SUNLIGHT 2: P/N 003602010) to contact point of the release lever and operating cylinder.

Tightening torque:
1. T1: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
2. T2: 37 N.m (3.8 kgf-m, 27.5 ft-lb)
- Non-TURBO model

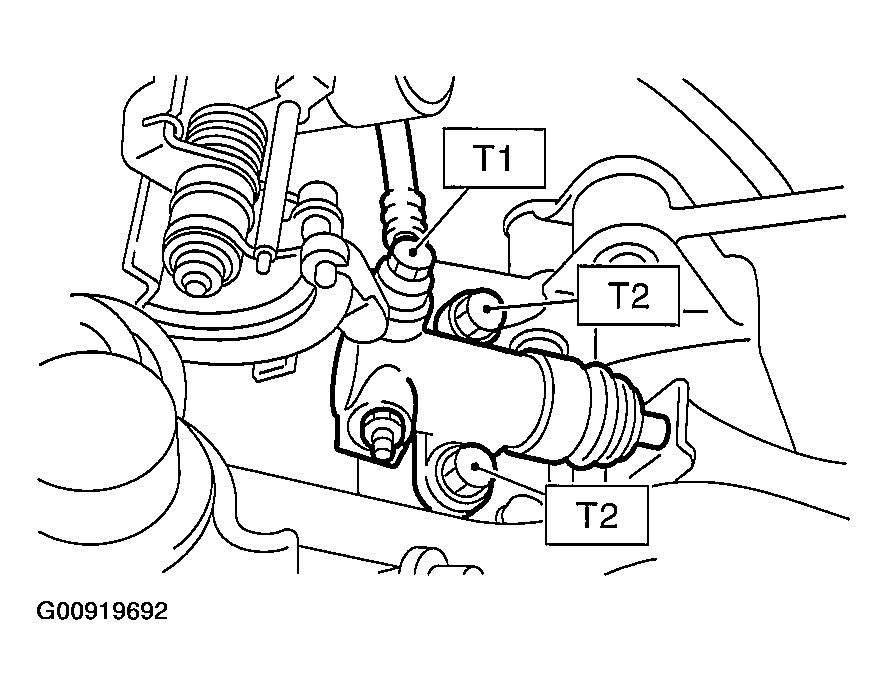

  Fig 1: Installing Clutch Hose To Operating Cylinder (Non-TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO model

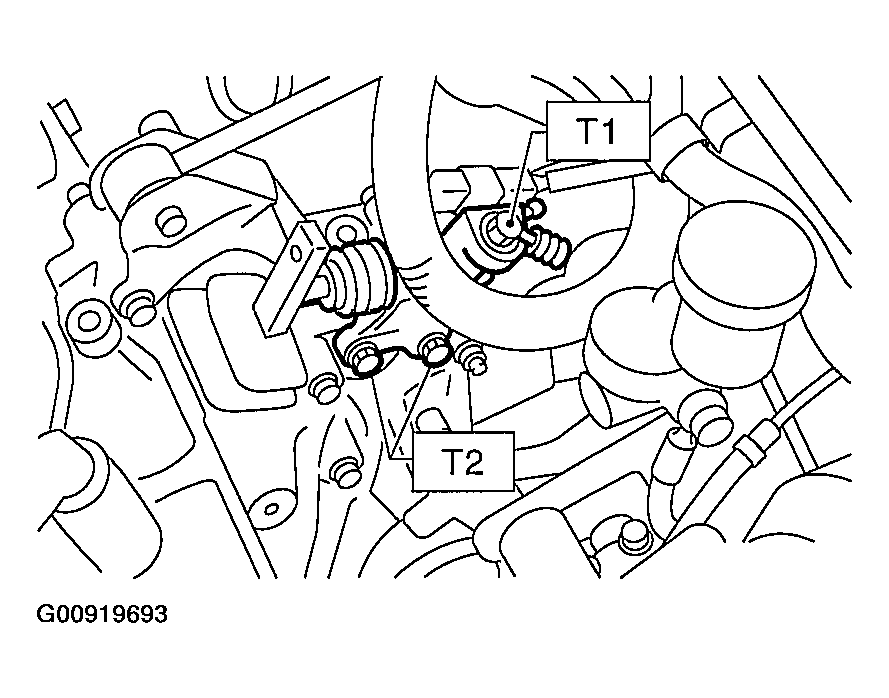

  Fig 2: Installing Clutch Hose To Operating Cylinder (TURBO Model)
  Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the operating cylinder, ensure that clutch operates properly. Refer to CLUTCH FLUID AIR BLEEDING .
