AT Shift Lock System: Schematic

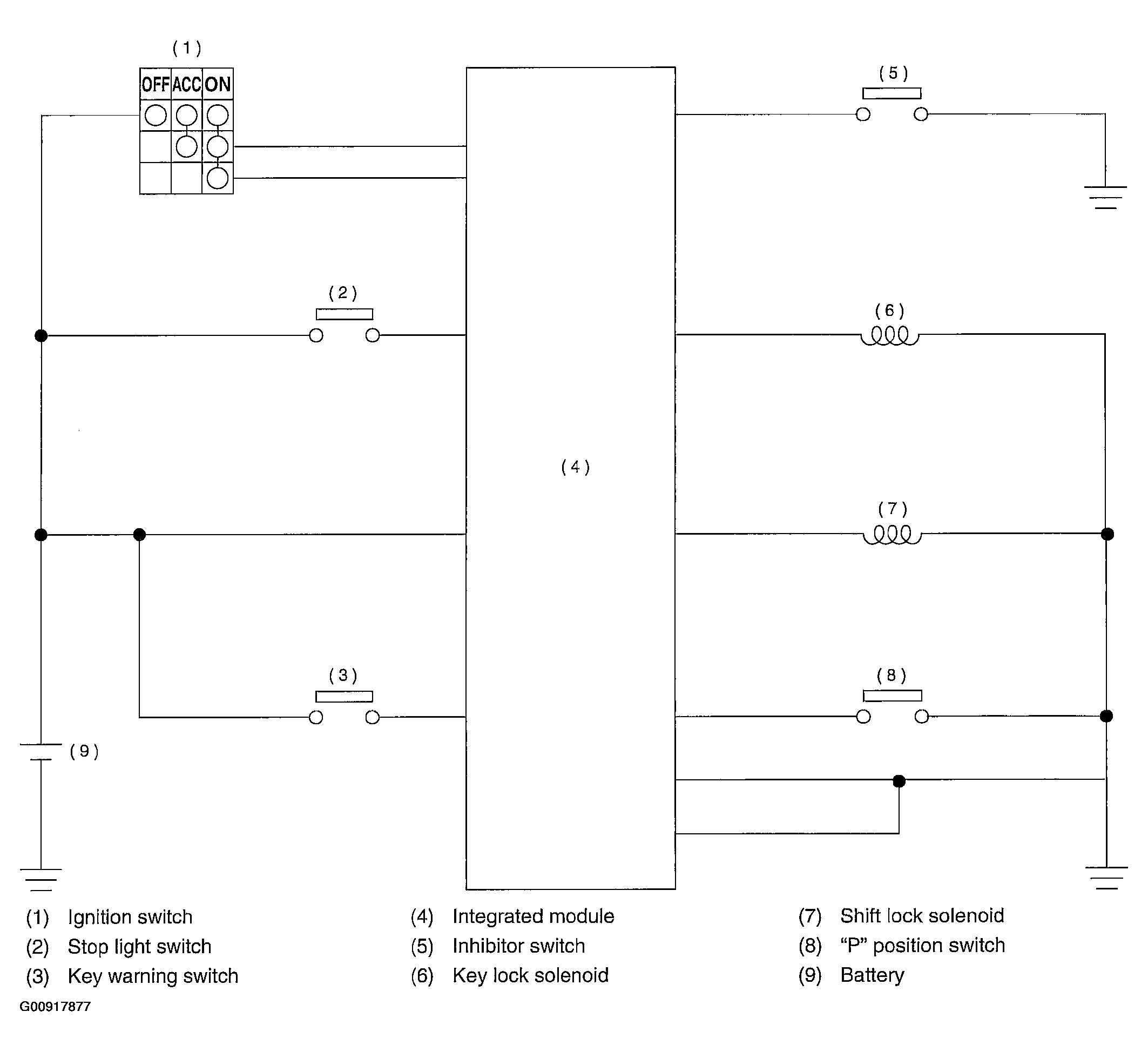

Fig 1: Schematic Diagram

G00917877

Courtesy of SUBARU OF AMERICA, INC.
