Combination Base Switch Assembly: Removal

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag module. < Ref. to REMOVAL , Driver's Airbag Module. >
  2. Remove the steering wheel. < Ref. to REMOVAL , Steering Wheel. >
  3. Remove the screws and remove the steering column lower cover.
    Fig 1: Removing Screws And Steering Column Lower Cover
    G03833534Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the combination switch. < Ref. to , REMOVAL , Combination Switch (Light).> < Ref. to REMOVAL , Combination Switch (Wiper). >
  5. Remove the four screws and remove the roll connector.
  6. Remove the three screws.

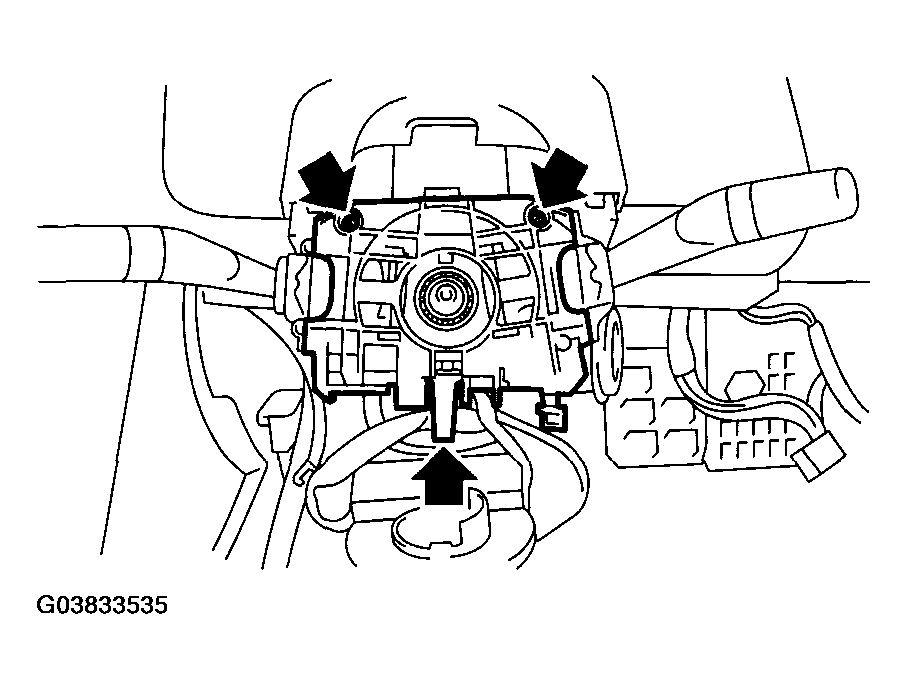

    Fig 2: Removing Three Screws
    G03833535Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connector and remove the combination base switch assembly.
