Outback Model

WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the two clips, and then turn over the lower mud guard.

Fig 1: Removing Two Clips
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the harness connector.
Remove the mounting nuts and clips, and then detach the fog light assembly by pulling it.

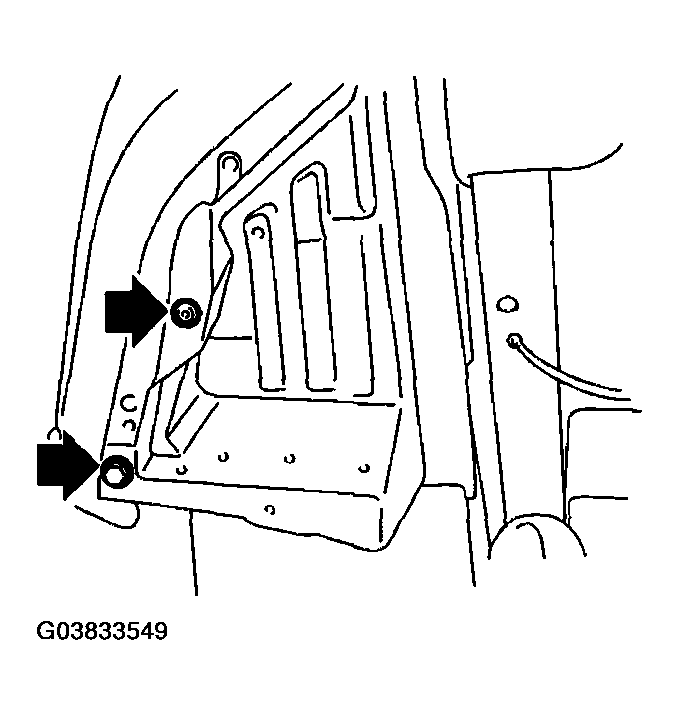

Fig 2: Removing Mounting Nuts And Clips

Courtesy of SUBARU OF AMERICA, INC.
