Stop Light Switch
WARNING: This page is about a different car, the 2005 Subaru Outback and 2005 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

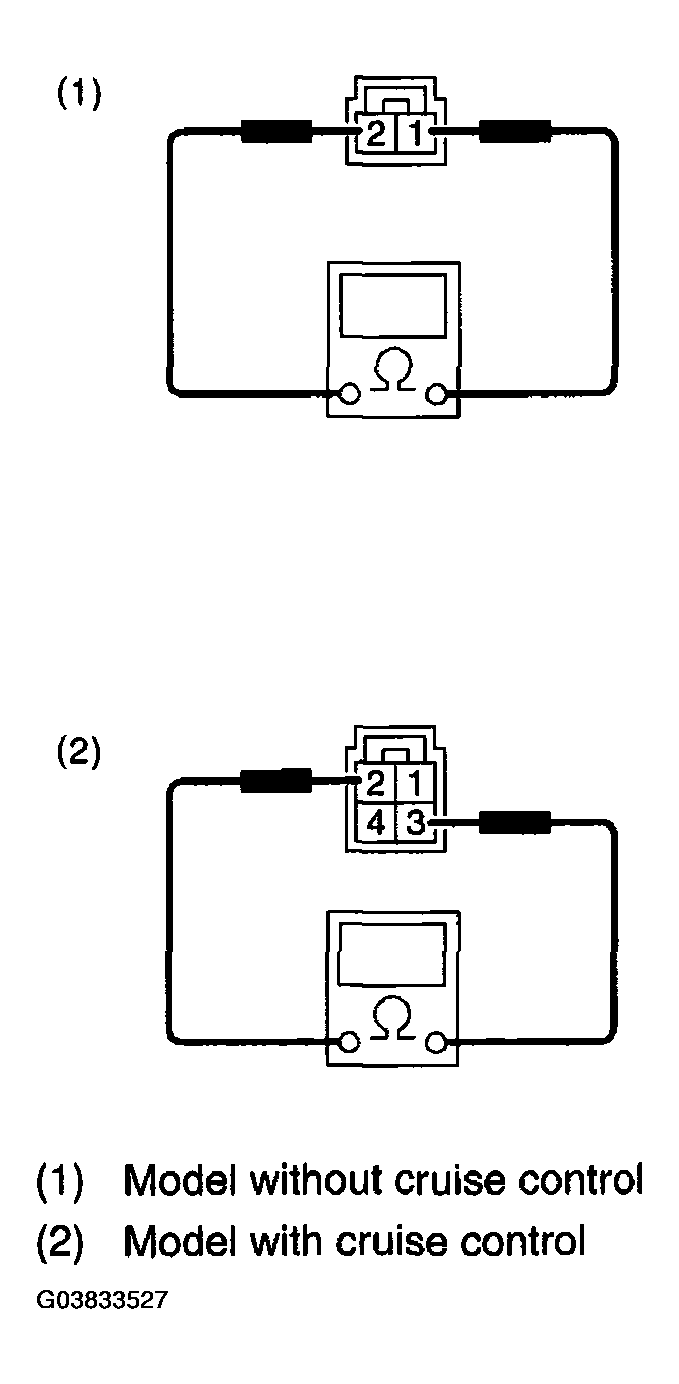

Measure the resistance between stop light switch terminals.
Courtesy of SUBARU OF AMERICA, INC. SWITCH POSITION SPECIFICATION
| Switch position |
Terminal No. |
Standard |
| When break pedal is depressed |
Model without cruise control: 1 and 2
Model with cruise control: 2 and 3 |
Less than 1 |
| When break pedal is released |
More than 1 M |
