Front Bushing

To reassemble, reverse disassembly procedures.

CAUTION: Install front bushing in correct direction, as shown in Fig 1 .

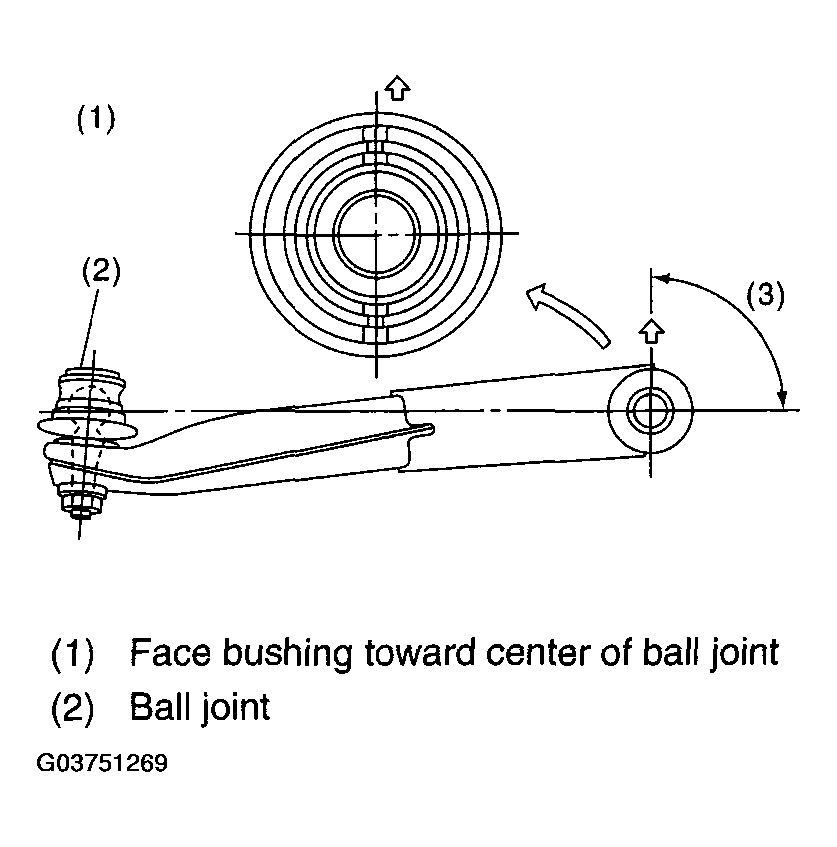

Fig 1: Installing Front Bushing
G03751269Courtesy of SUBARU OF AMERICA, INC.
