Center Structure

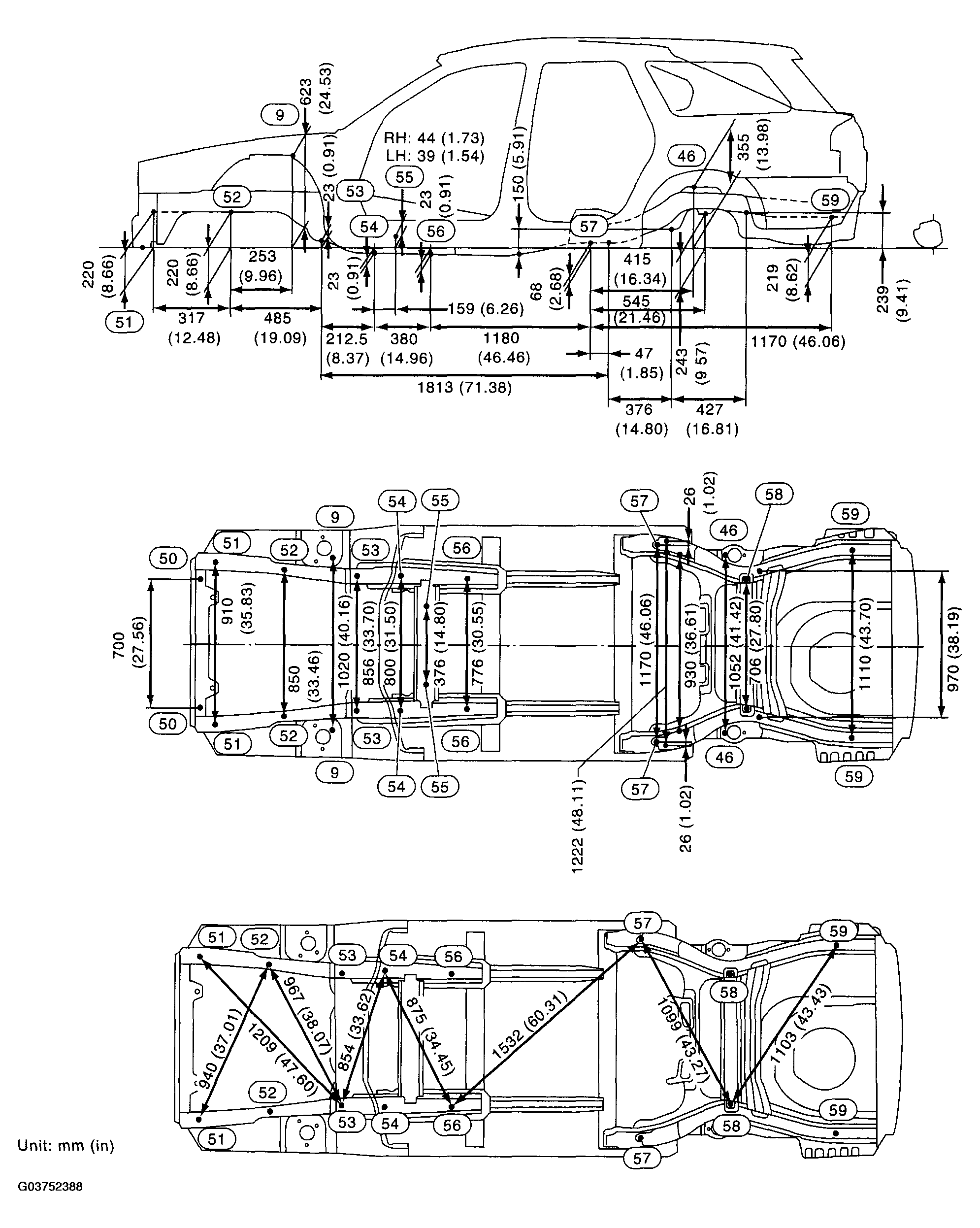

Fig 1: Identifying Center Structure

G03752388

Courtesy of SUBARU OF AMERICA, INC.
