Transfer And Extension Case With MPT

WARNING: This page is about a different variant/trim than selected.

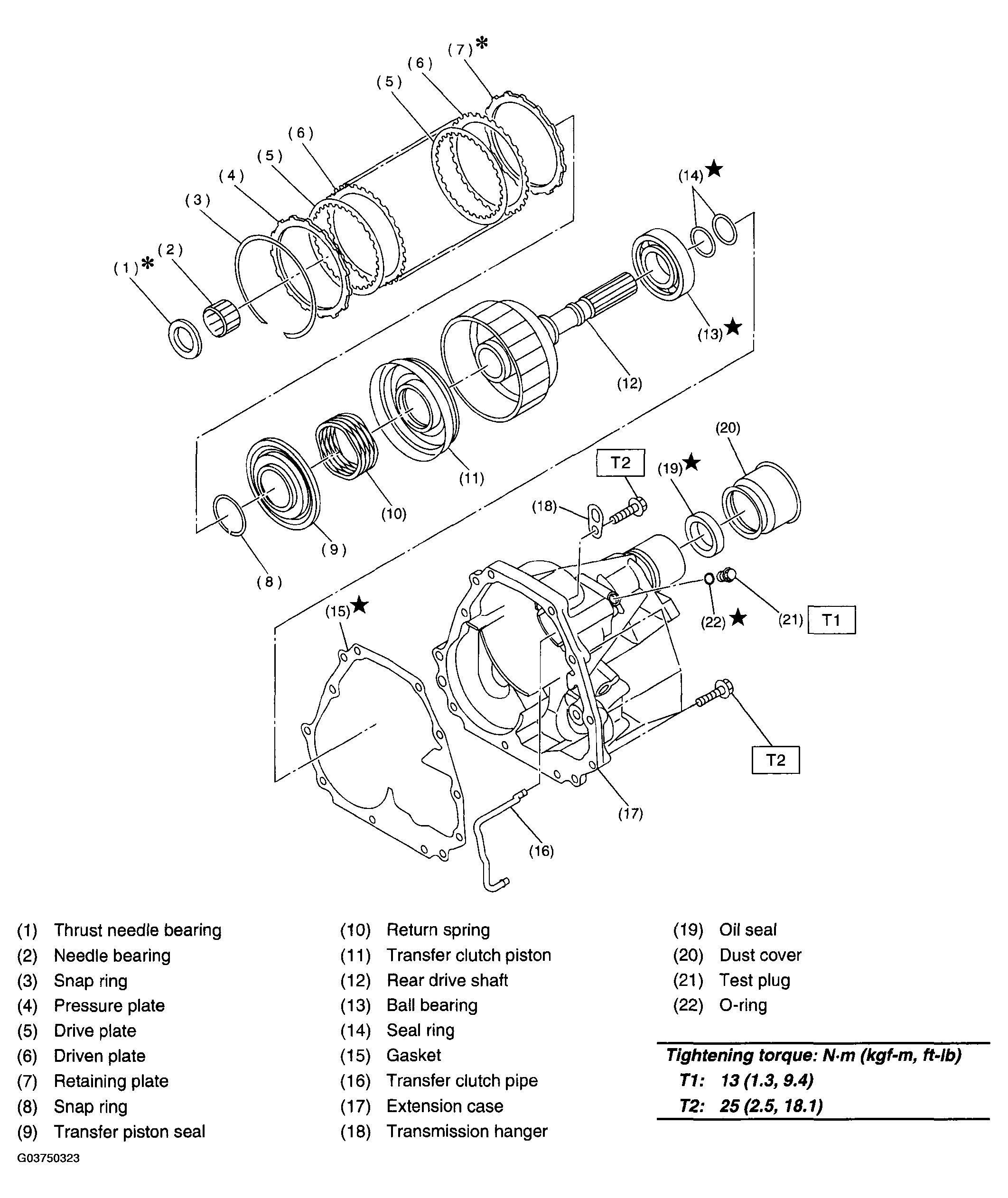

Fig 1: Exploded View Of Transfer And Extension Case With MPT With Torque Specifications
G03750323Courtesy of SUBARU OF AMERICA, INC.
