Steering Wheel And Column

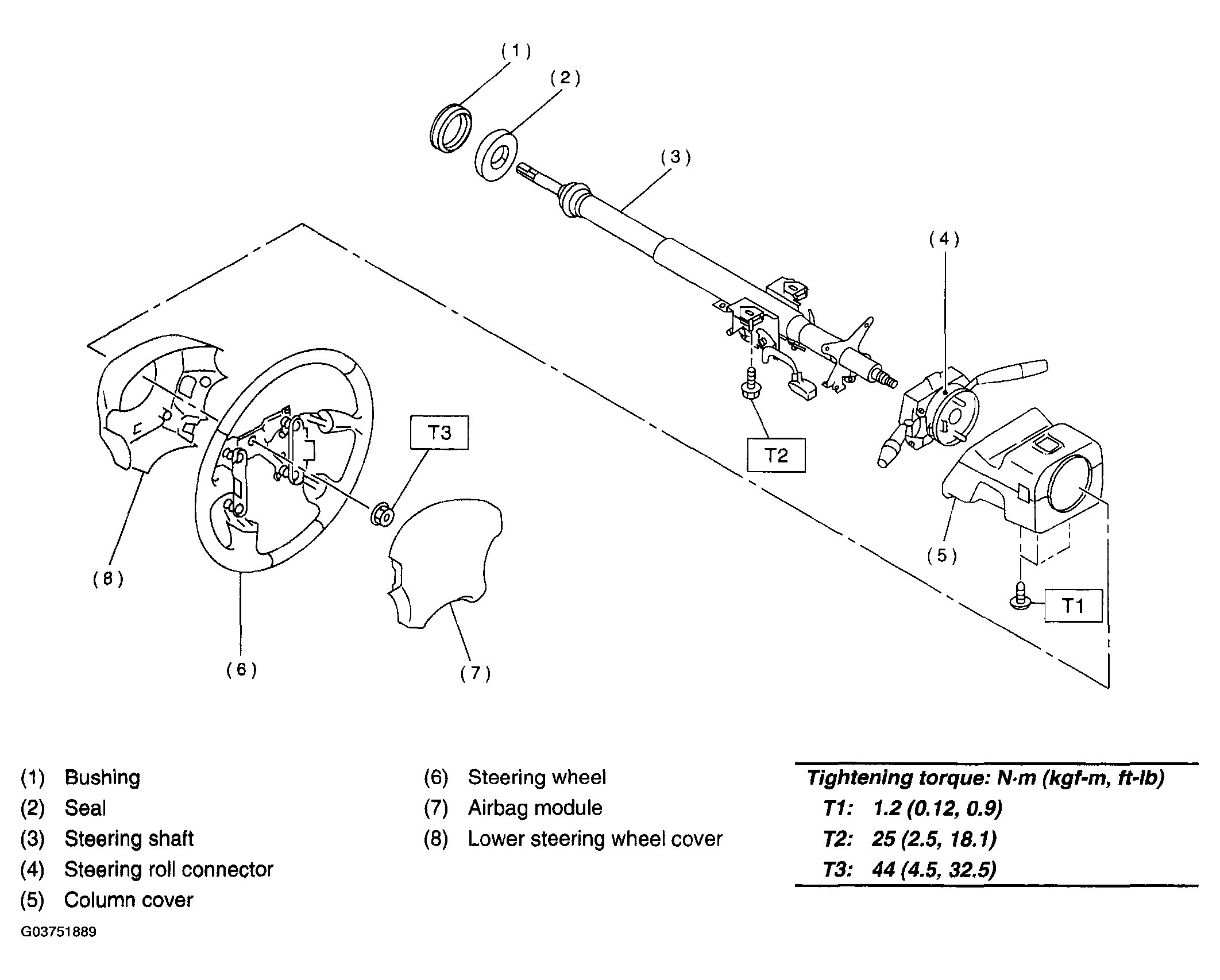

Fig 1: Exploded View Of Steering Wheel And Column Components With Torque Specifications
G03751889Courtesy of SUBARU OF AMERICA, INC.
