Computers and Control Systems: Locations

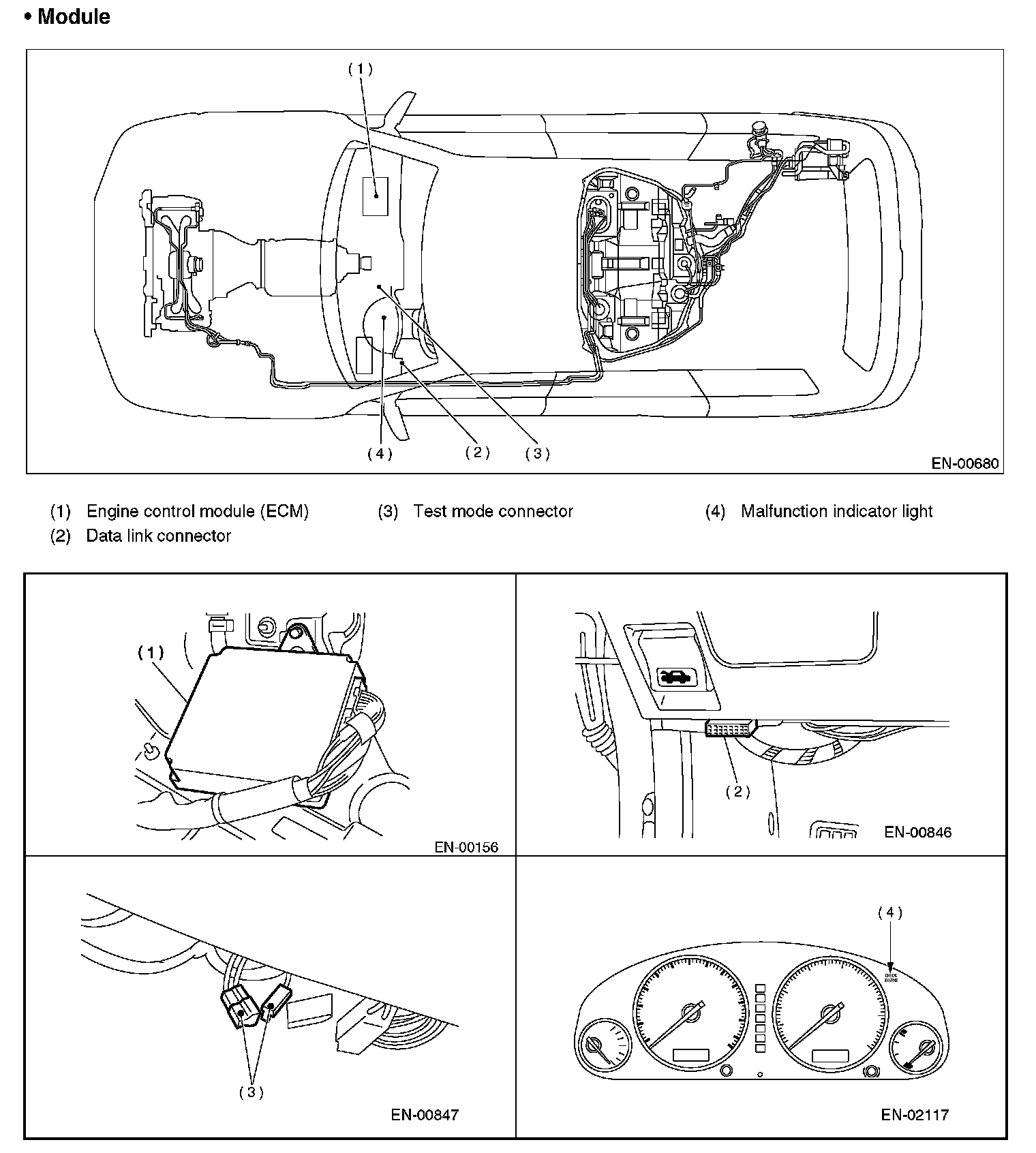

Module

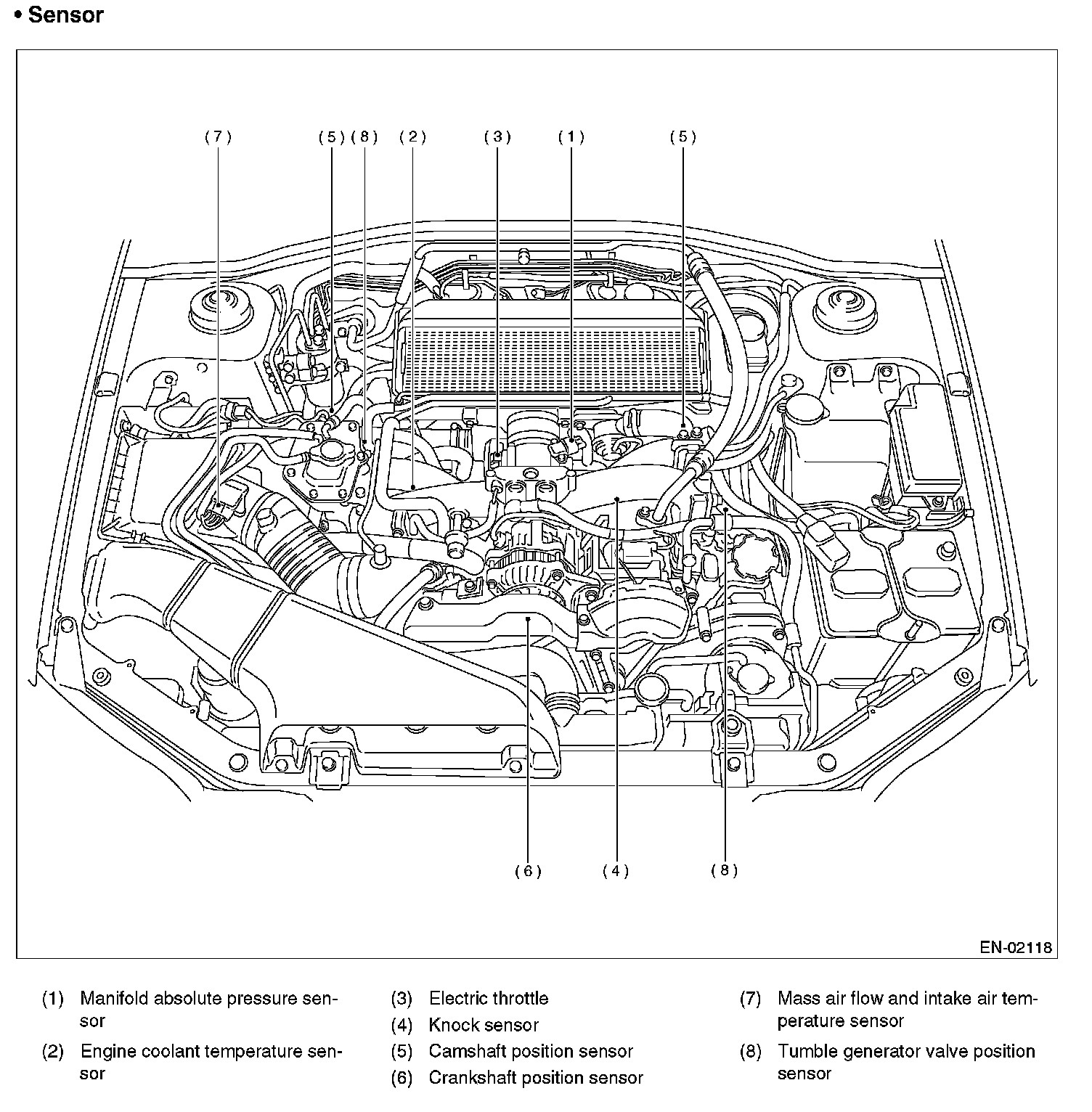

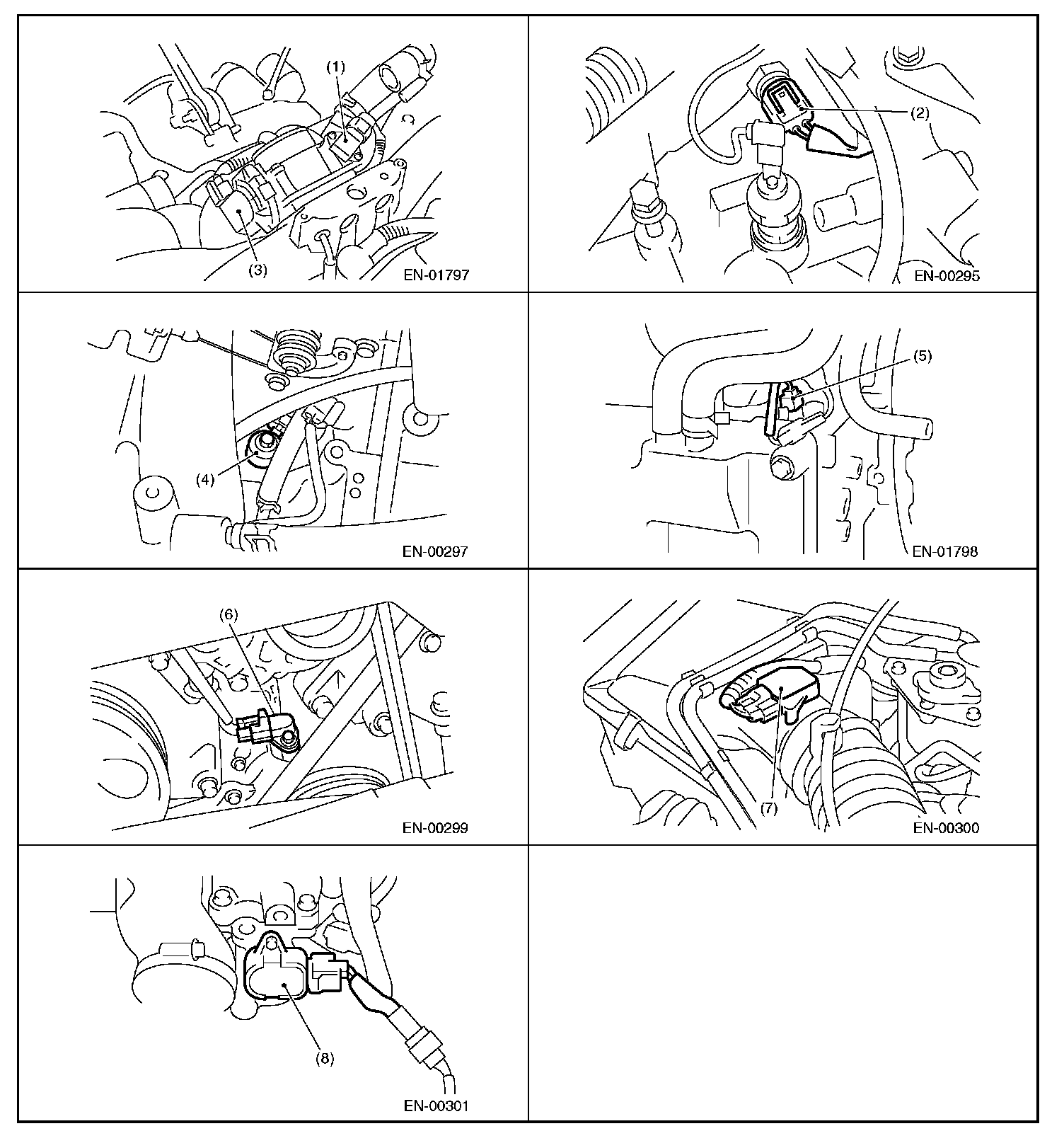

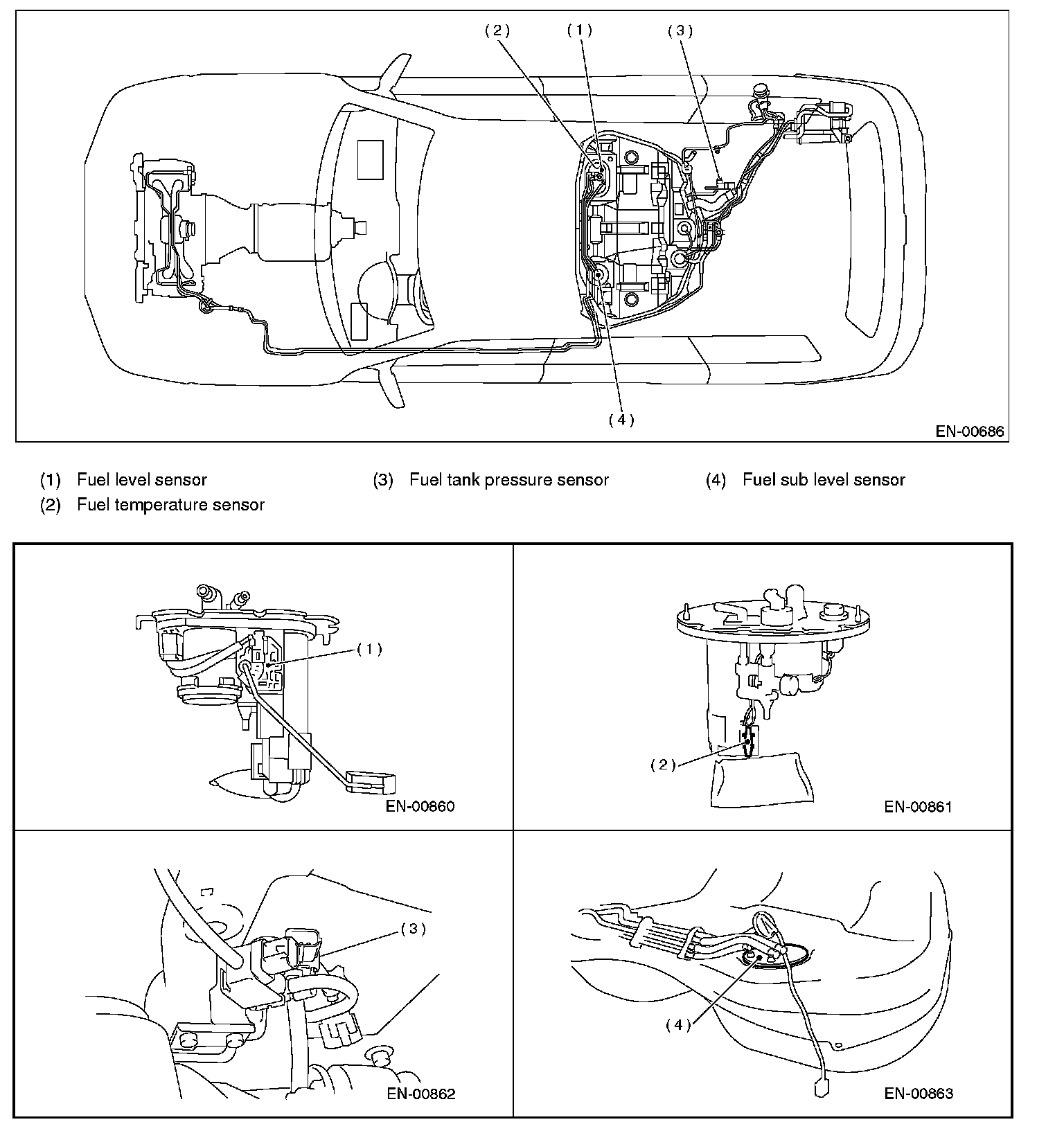

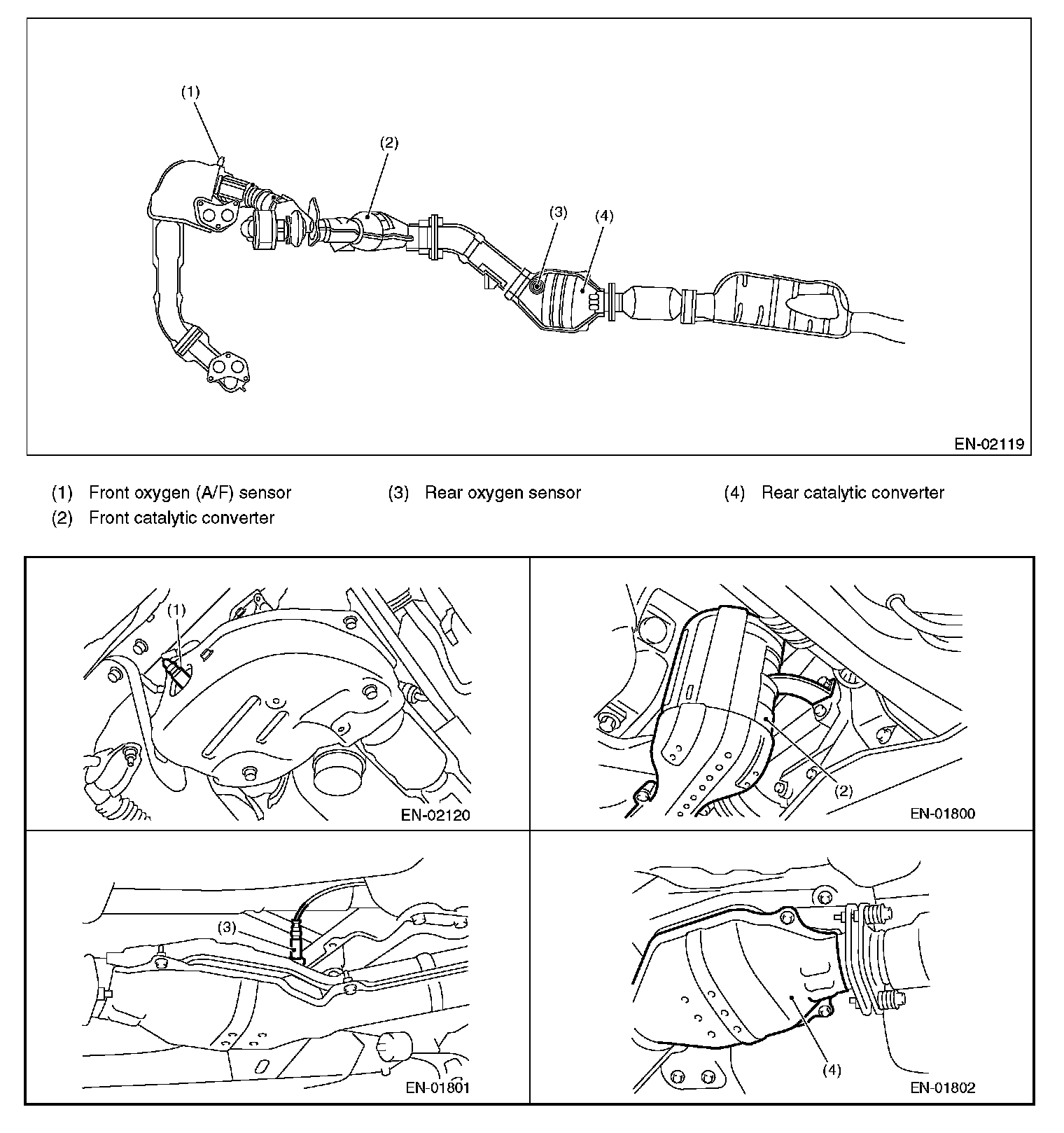

Sensor

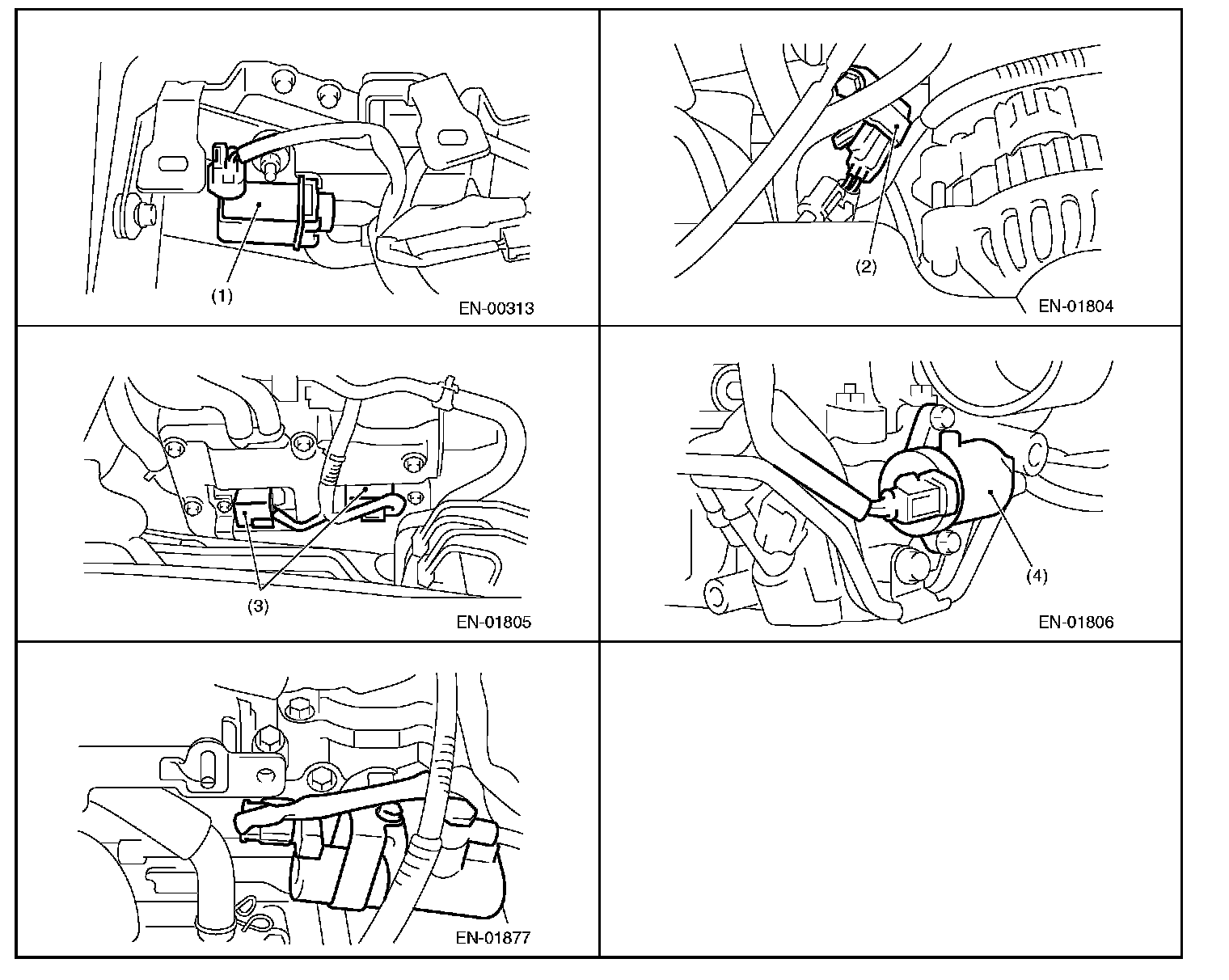

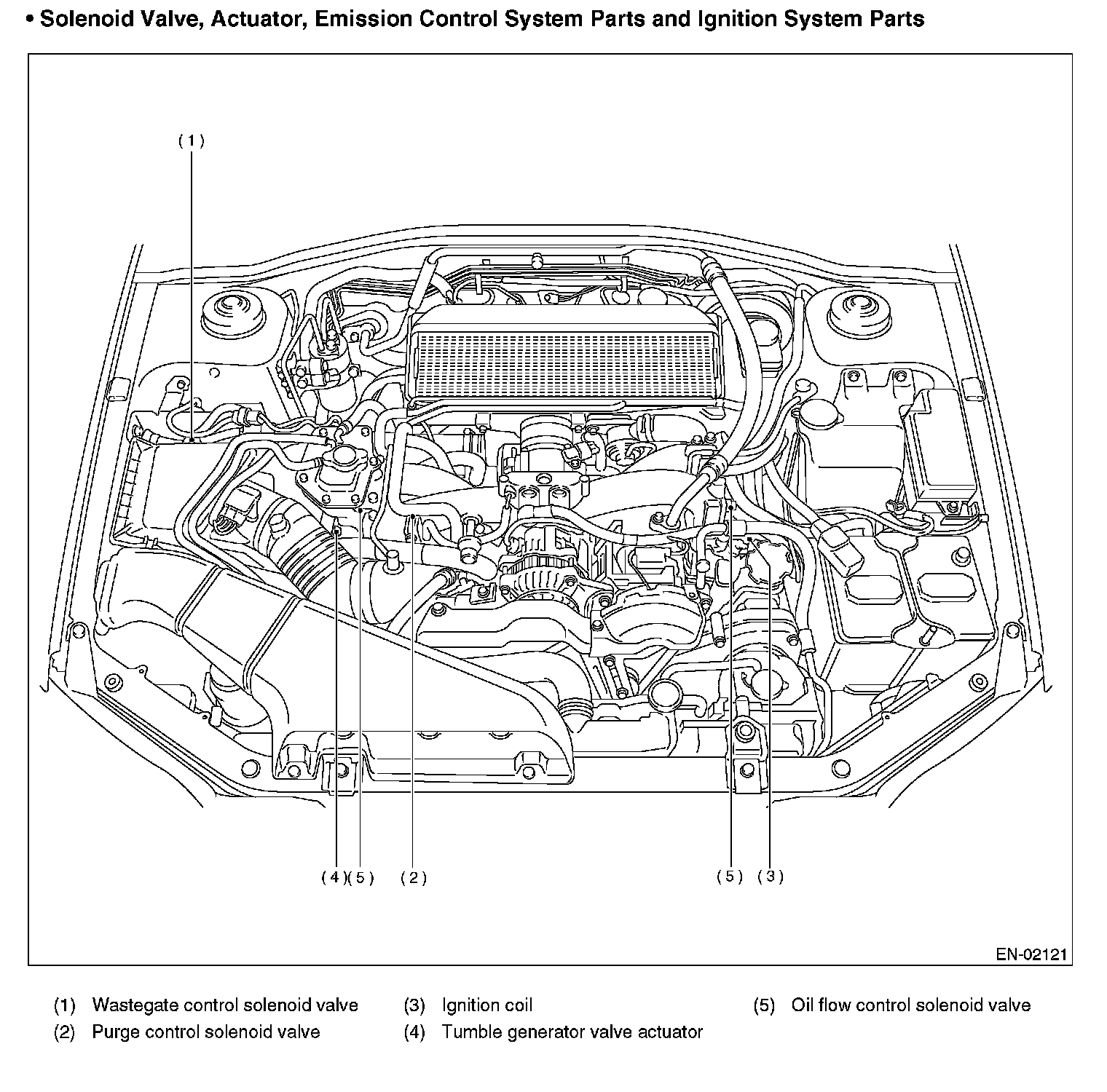

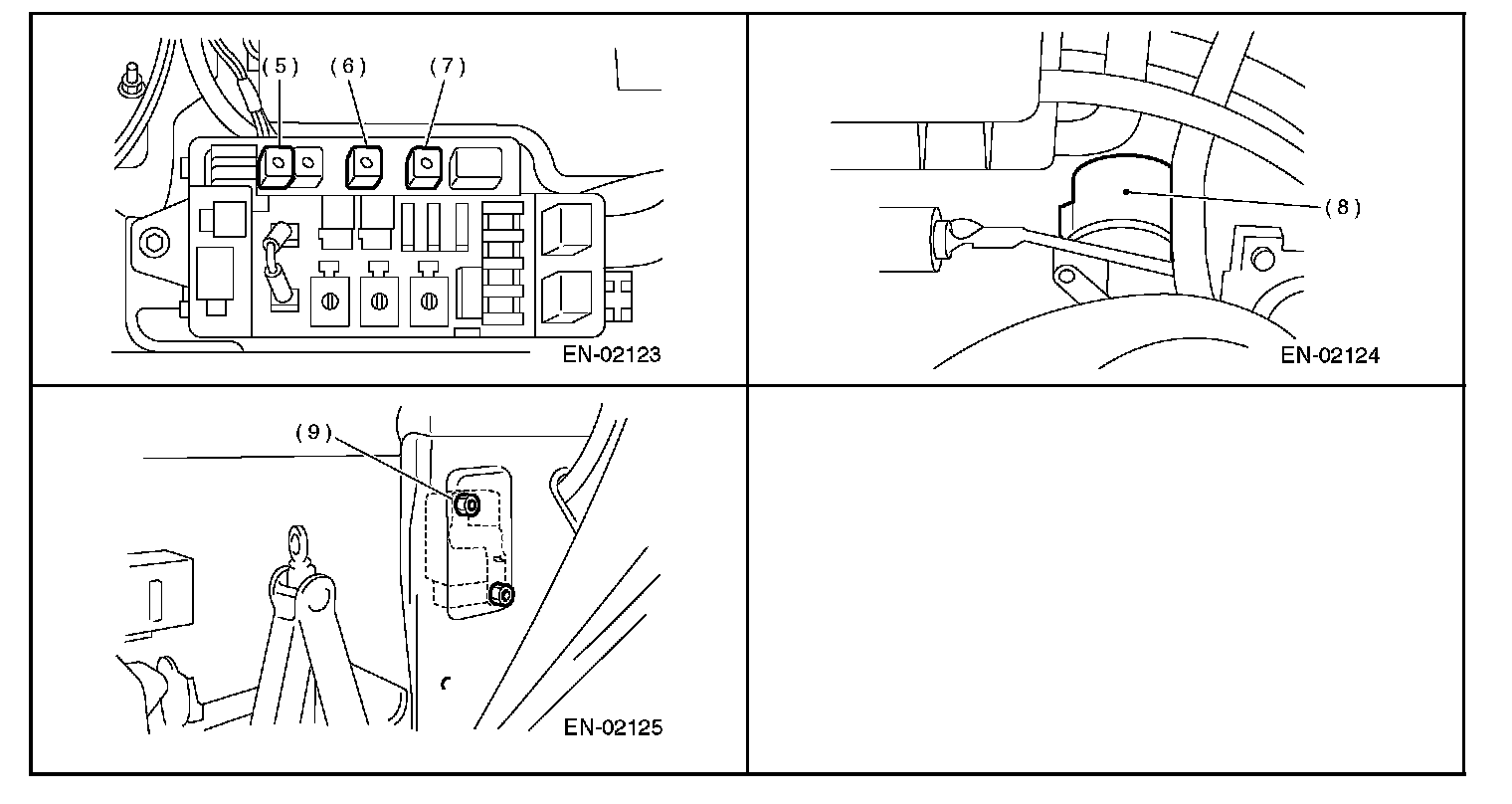

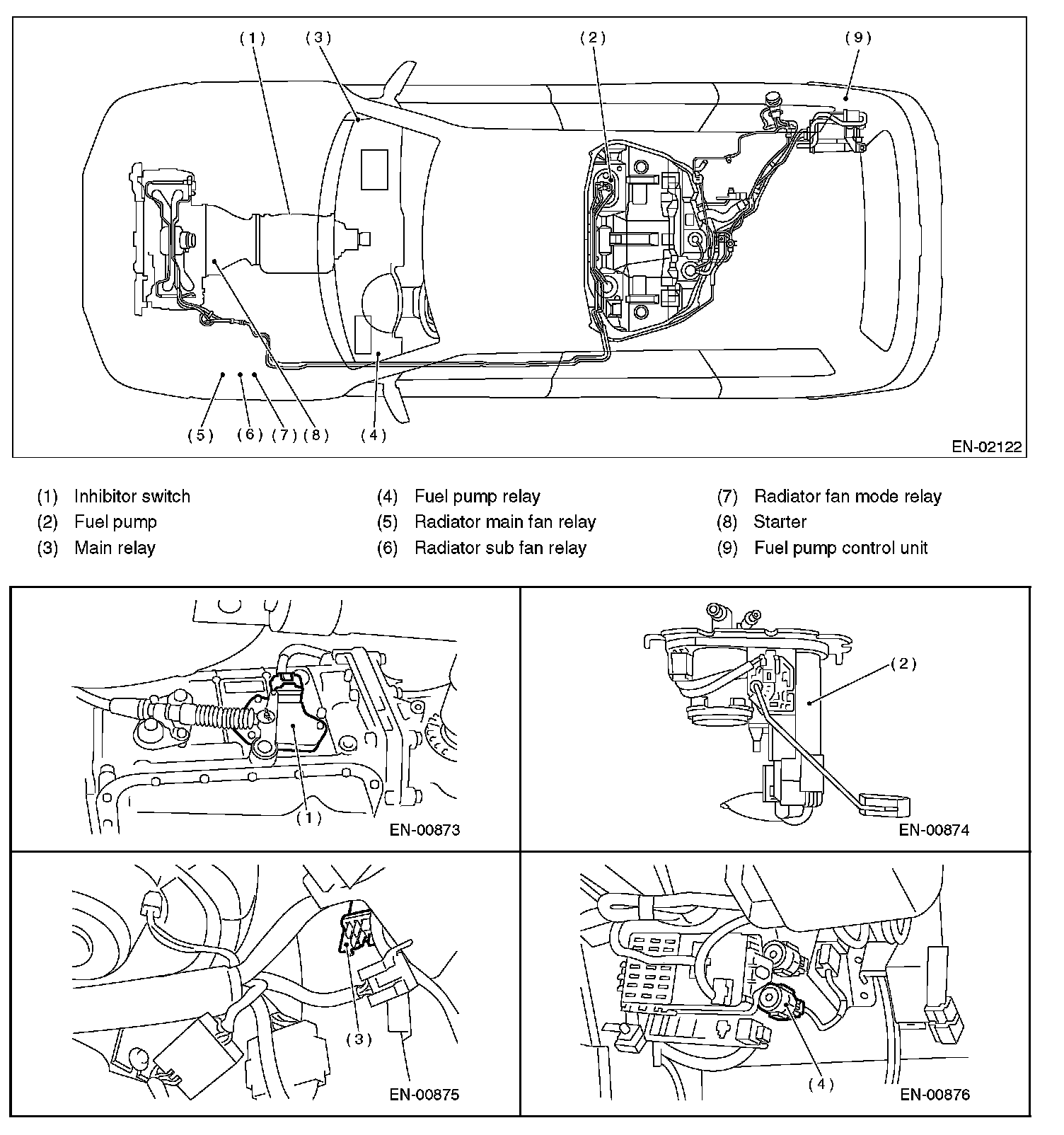

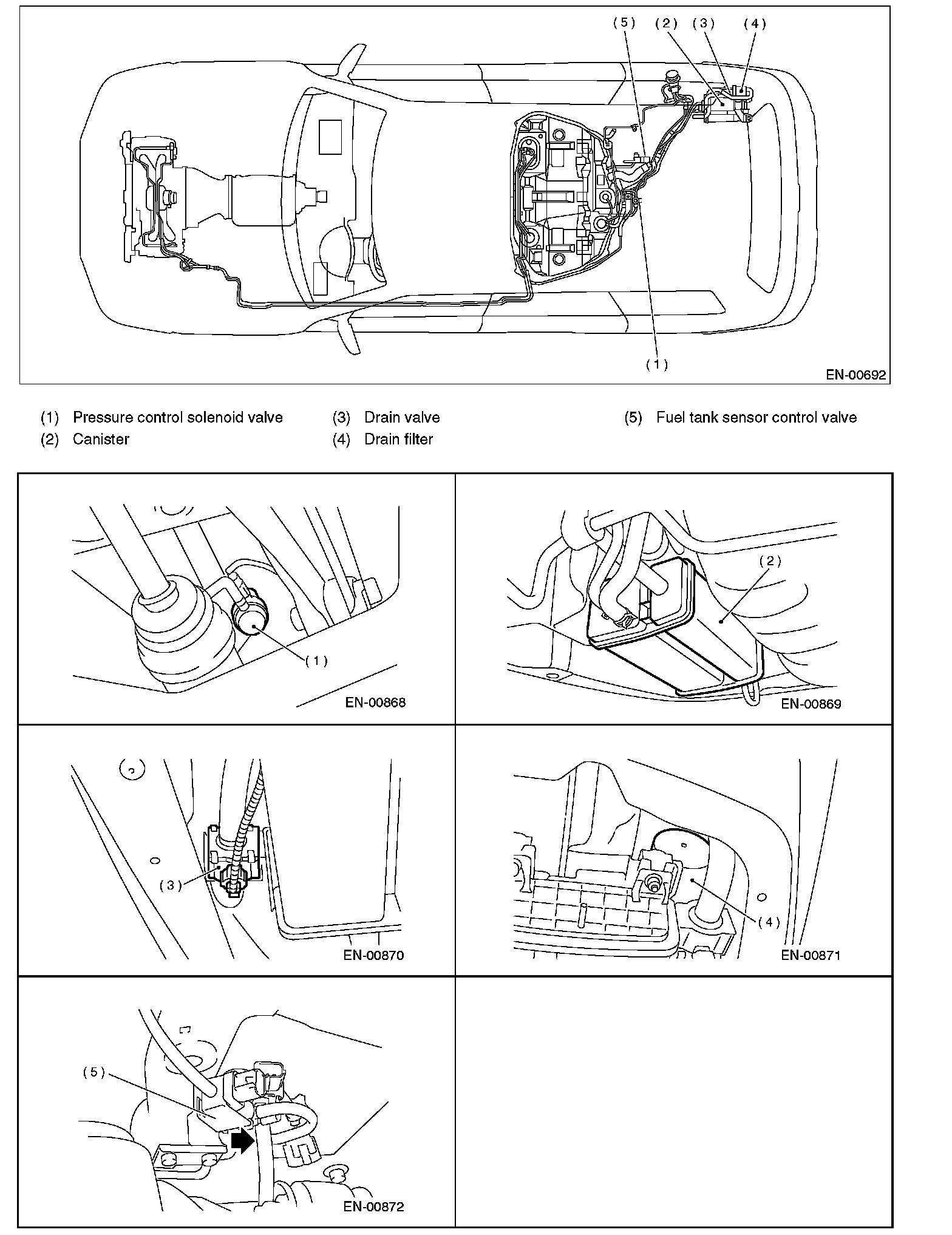

Solenoid Valve, Actuator, Emission Control System Parts and Ignition System Parts
