Diagnostic Procedure For Select Monitor Communication

Diagnostic Procedure for Select Monitor Communication

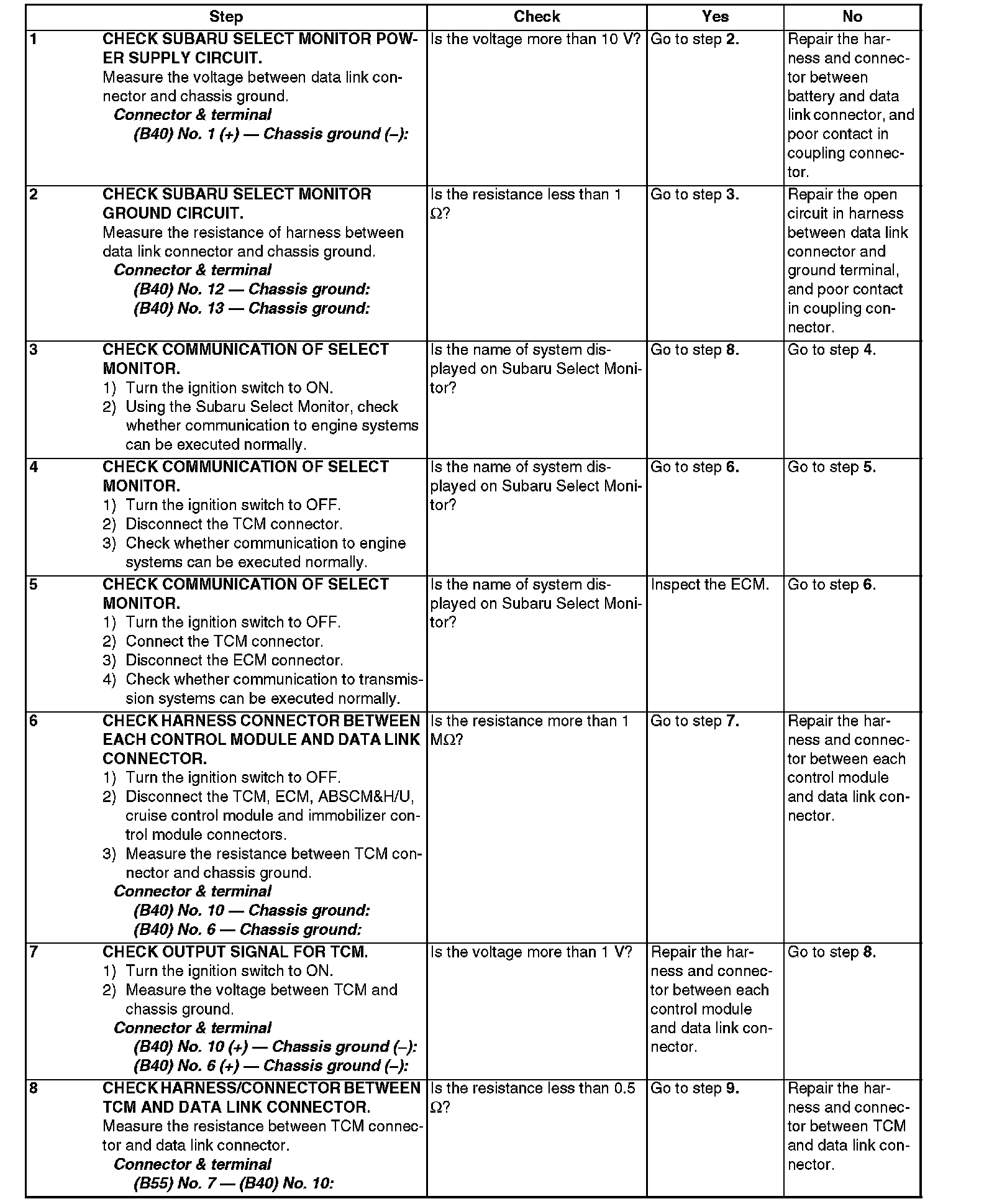

Steps 1 - 8:




Steps 9 - 11:





COMMUNICATION FOR INITIALIZING IMPOSSIBLE
DIAGNOSIS:
^ Faulty harness connector

TROUBLE SYMPTOM:
^ Select monitor communication failure

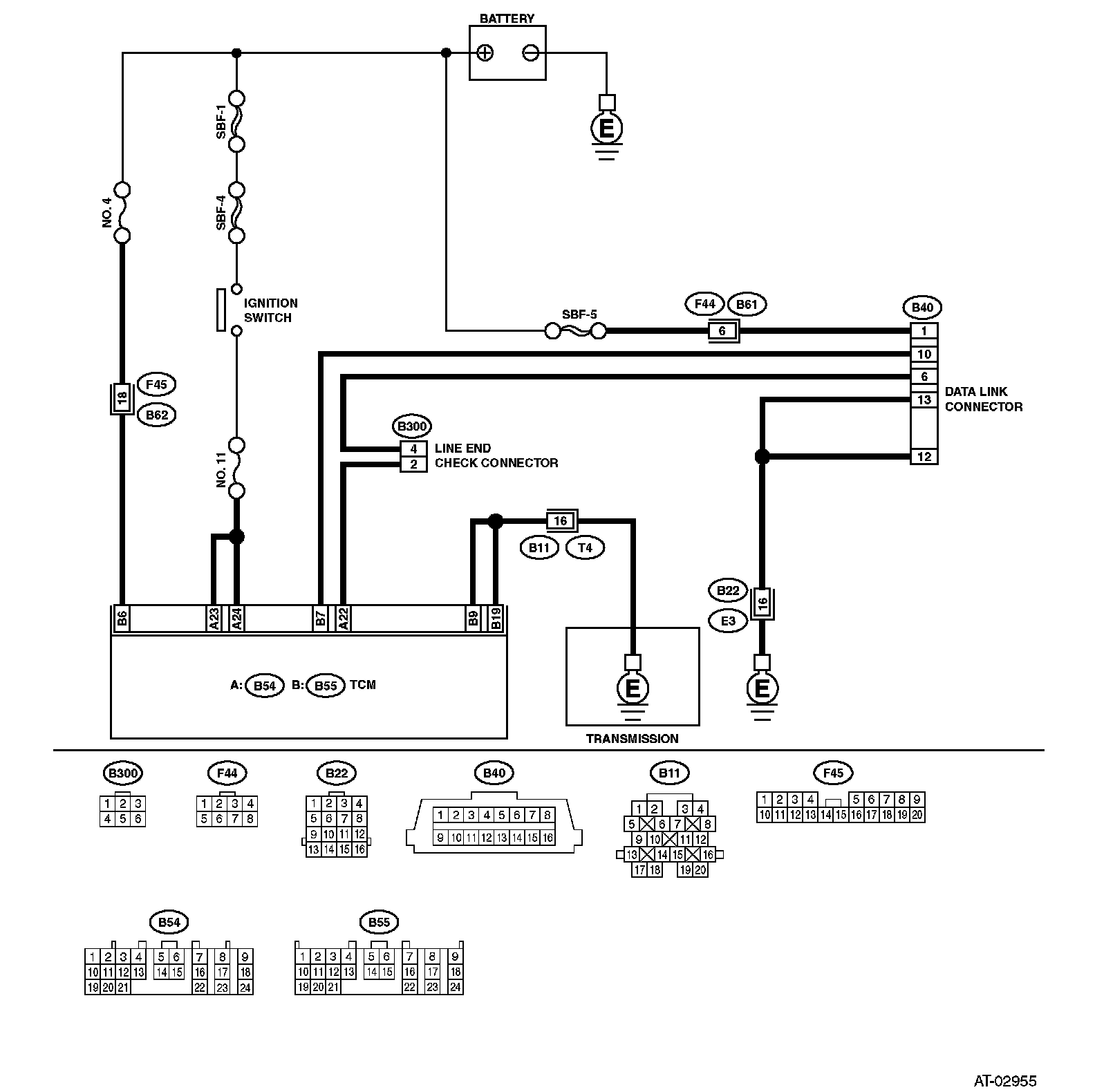

WIRING DIAGRAM
