A/T Select Lever (Except Sport Shift Model)

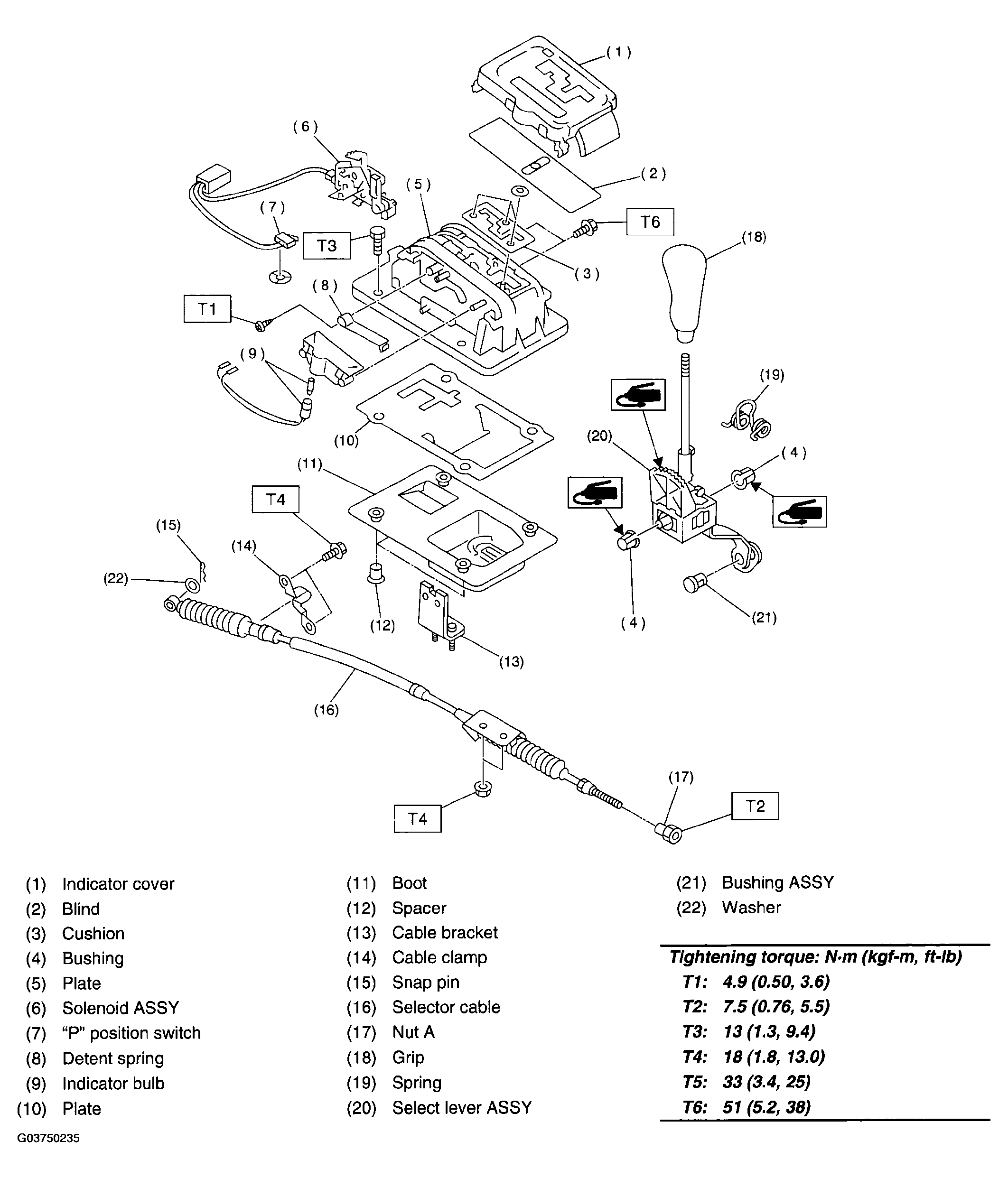

Fig 1: Replacement Components Of A/T Select Lever With Torque Specifications (Except Sport Shift Model)
G03750235Courtesy of SUBARU OF AMERICA, INC.
