Ignition Control System

IGNITION CONTROL SYSTEM

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.
Clearing Diagnostic Trouble Codes
Initial Inspection

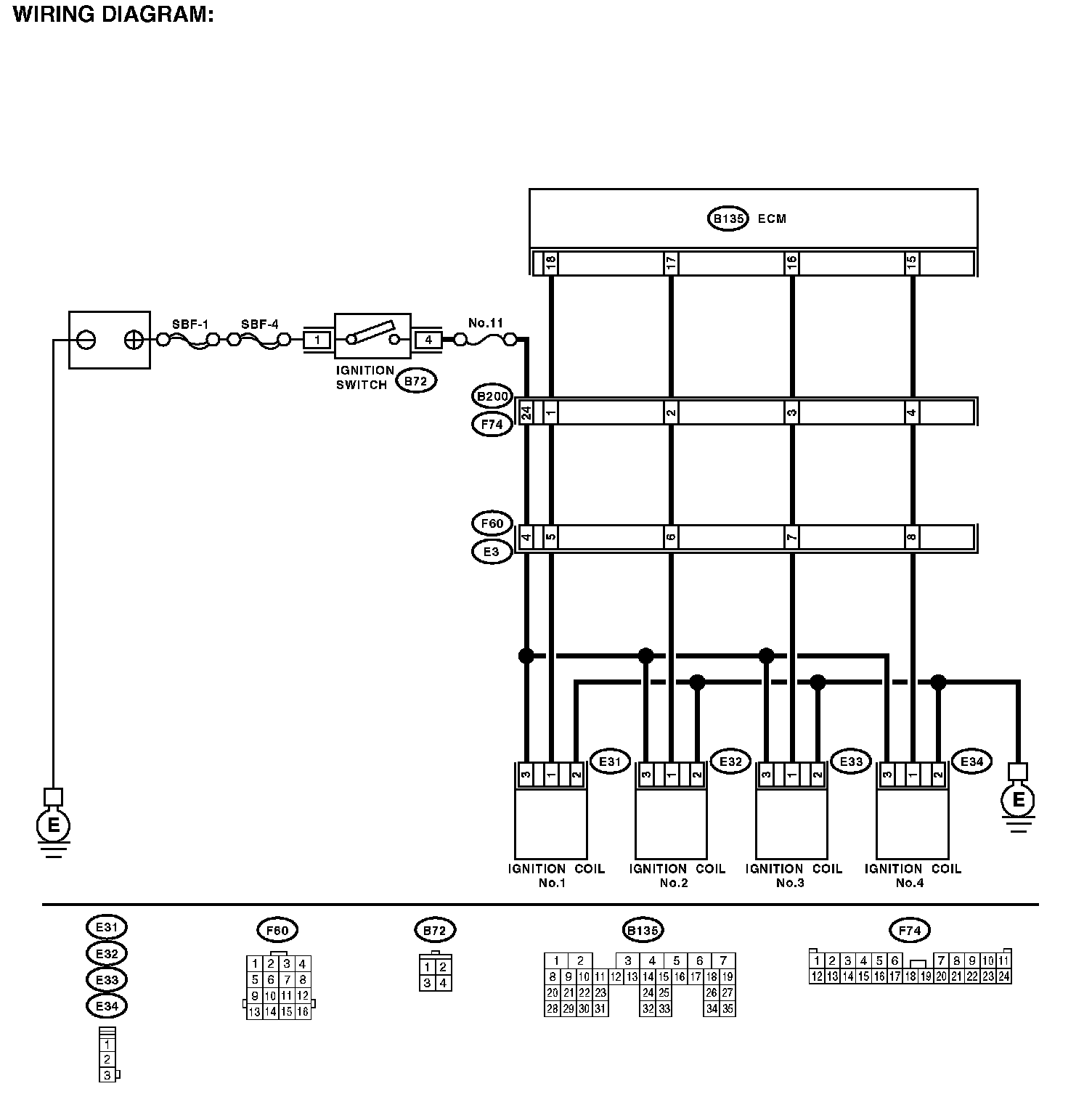

Wiring Diagram:

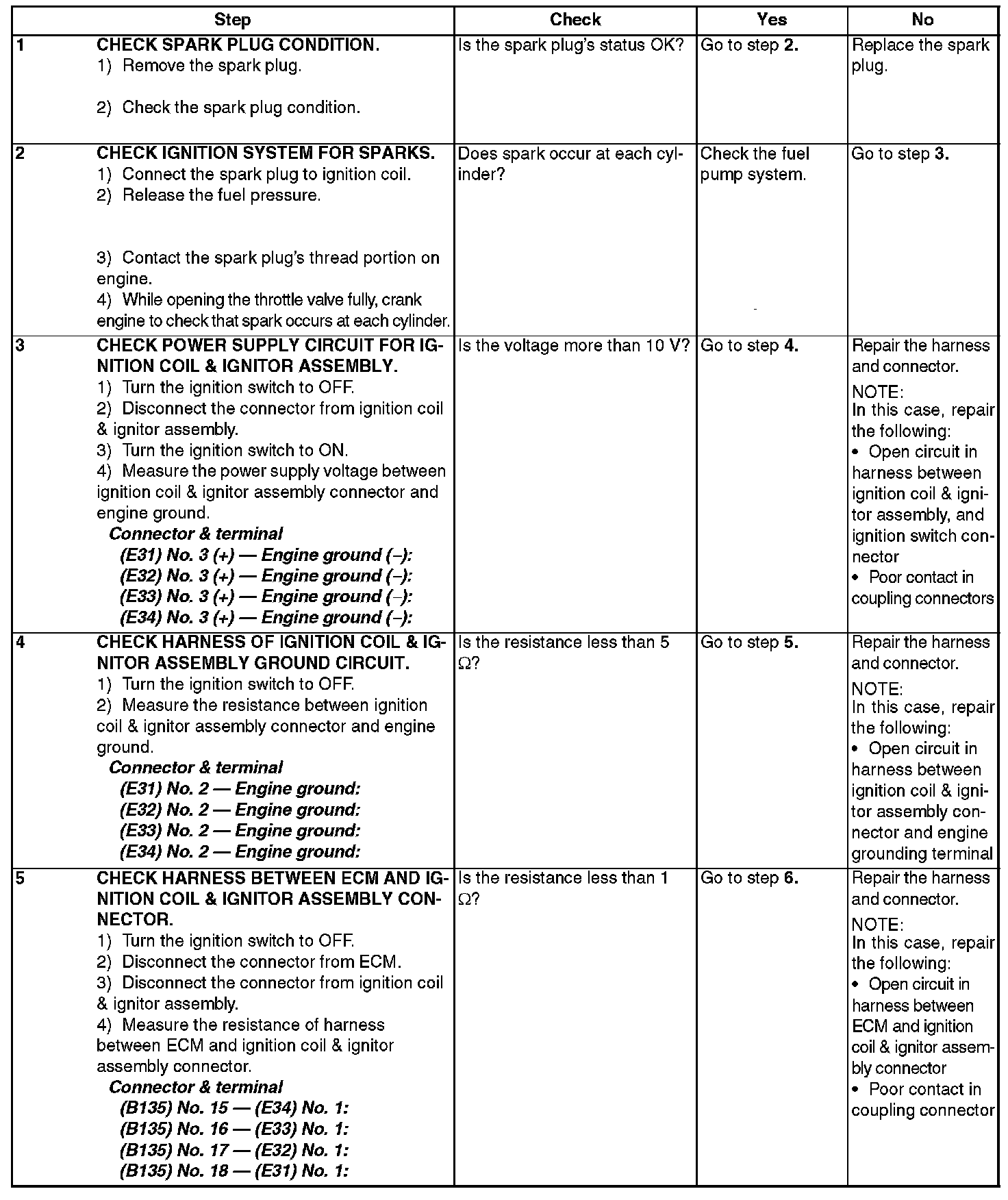

Step 1 - 5:




Step 6 - 7:
