Fuel Level Sensor

Fuel Level Sensor

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill the fuel.

NOTE: Fuel level sensor is built in fuel pump assembly.

1. Remove the fuel pump assembly.

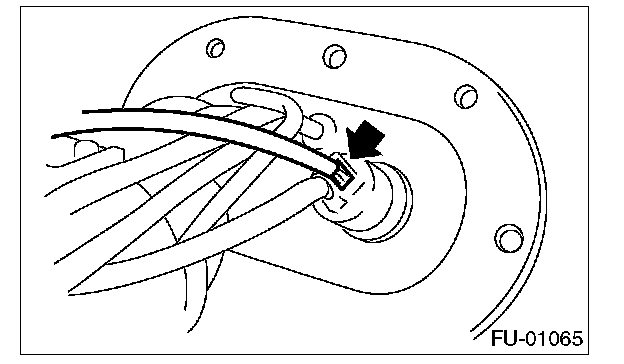

2. Disconnect the connector from the fuel pump bracket.

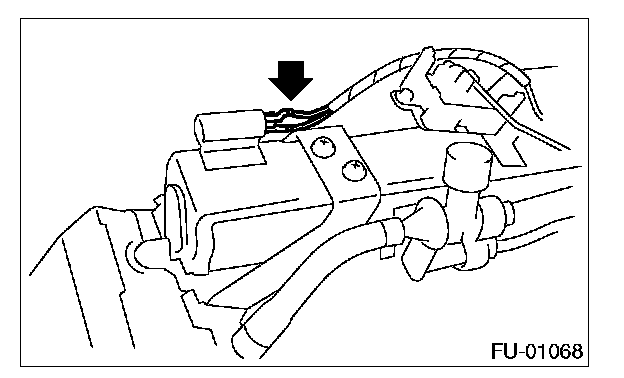

3. Remove the fuel temperature sensor.

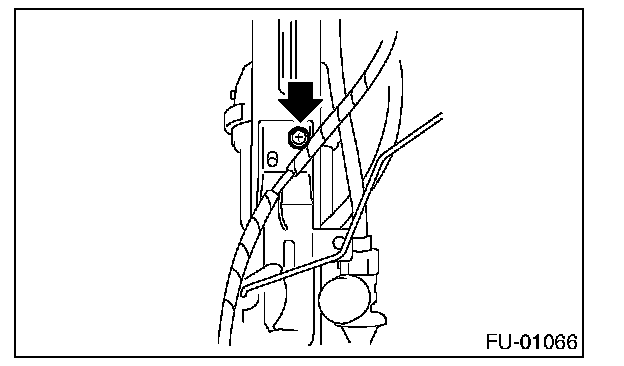

4. Remove the bolt which installs the fuel level sensor on mounting bracket.

INSTALLATION
Install in the reverse order of removal.
