Ignition (H4SO): General Description: Components

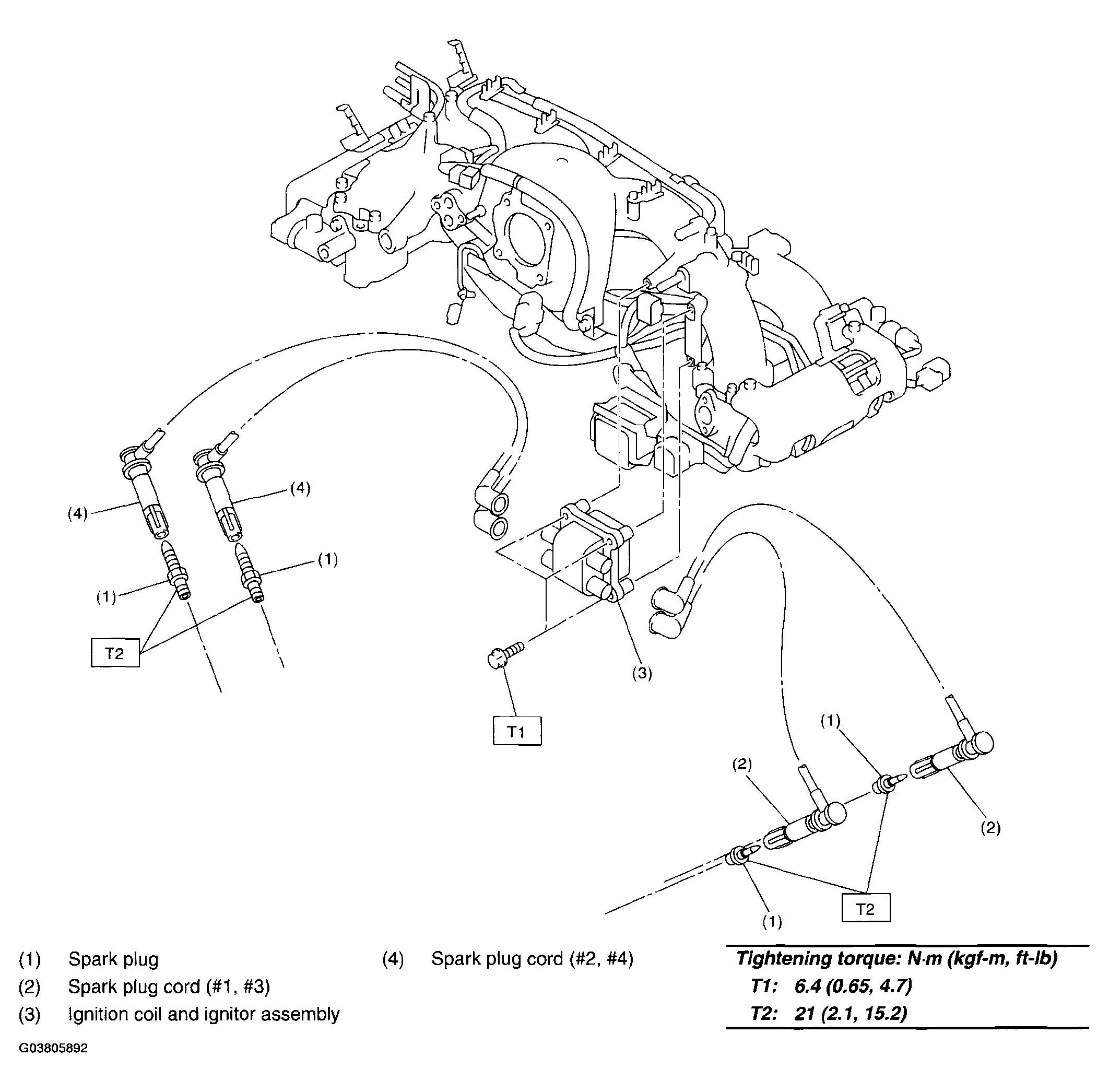

Fig 1: Ignition System Replacement Components With Torque Specifications
G03805892Courtesy of SUBARU OF AMERICA, INC.
