Conditions For Abs Sequence Control

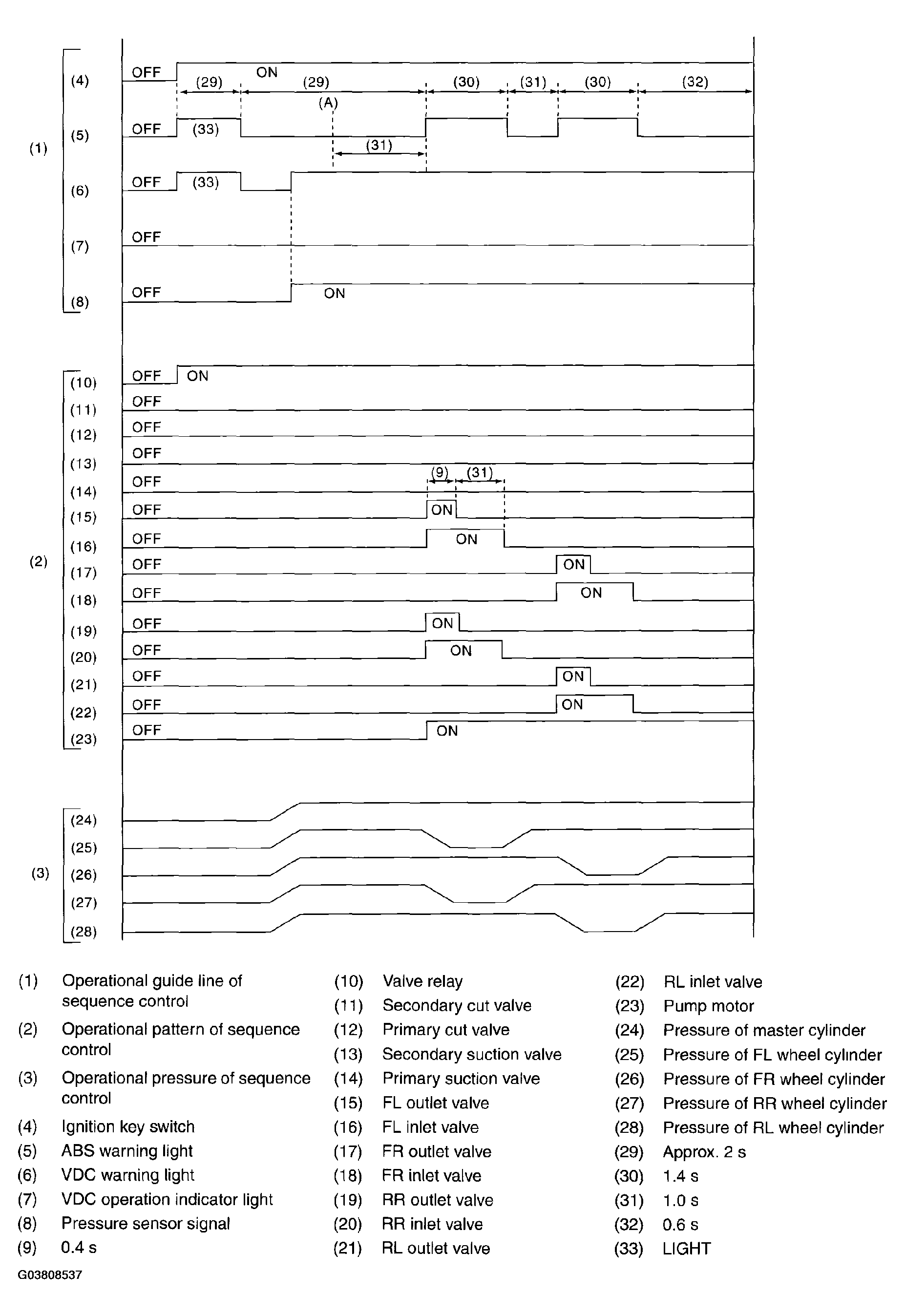

Fig 1: Identifying Conditions For ABS Sequence Control
G03808537Courtesy of SUBARU OF AMERICA, INC.
NOTE: Sequence control operation starts at point (A).
