Camshaft Position Sensor: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G03806343Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the camshaft position sensor RH.
  3. Remove the camshaft position sensor RH from the backside of cylinder head.

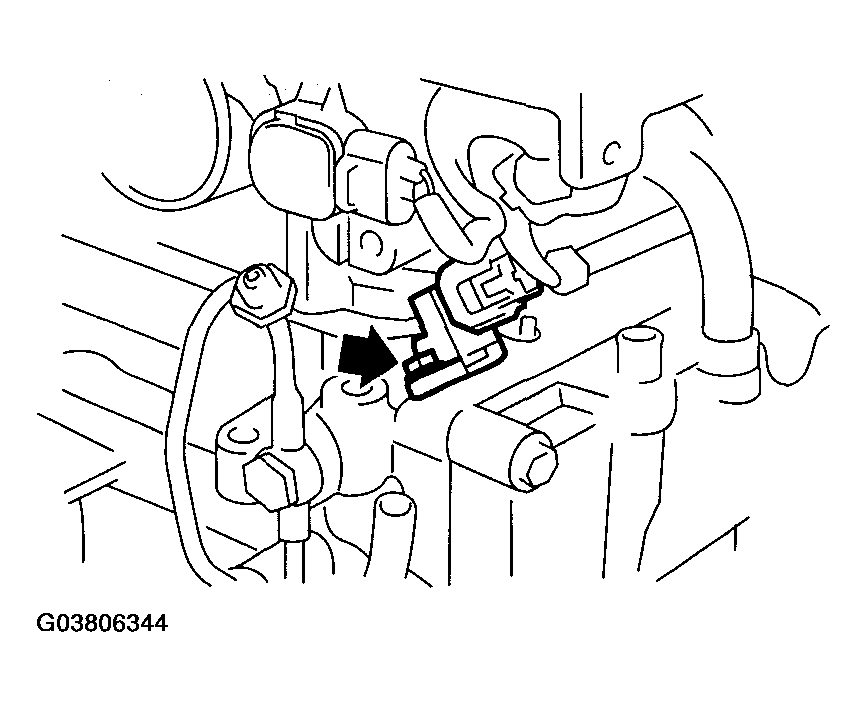

    Fig 2: Removing Camshaft Position Sensor RH
    G03806344Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the camshaft position sensor LH same as RH side.
