Knock Sensor: Installation

Install the knock sensor to the cylinder block.
Tightening torque:

24 N.m (2.4 kgf-m, 17.4 ft-lb)

NOTE: Extraction area of the knock sensor cord must be positioned at a 60° angle relative to the engine rear.

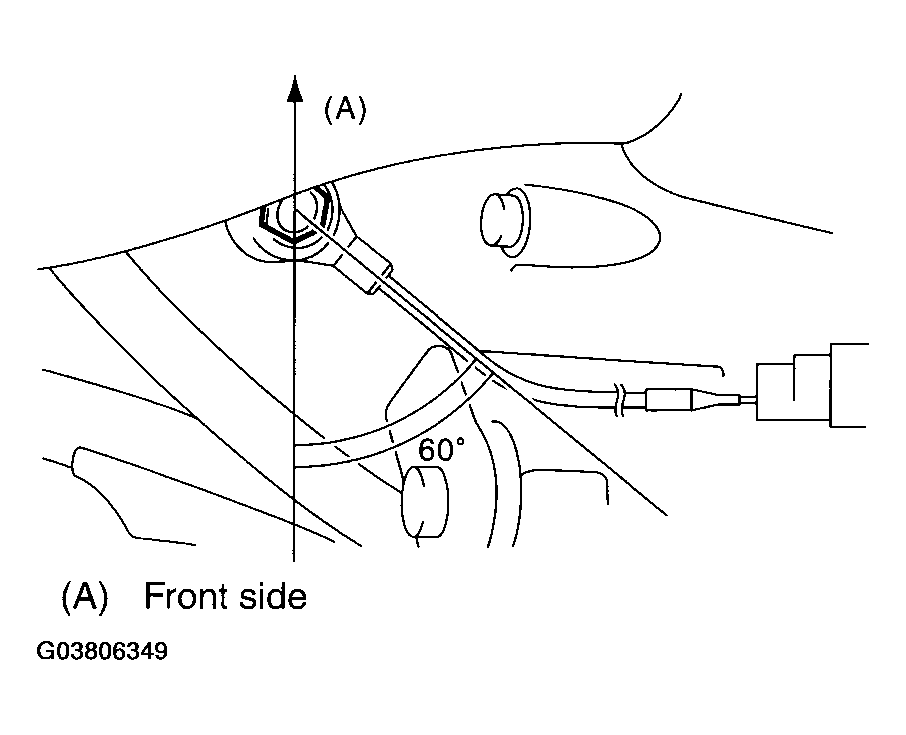

Fig 1: Installing Knock Sensor To Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
Connect the knock sensor connector.

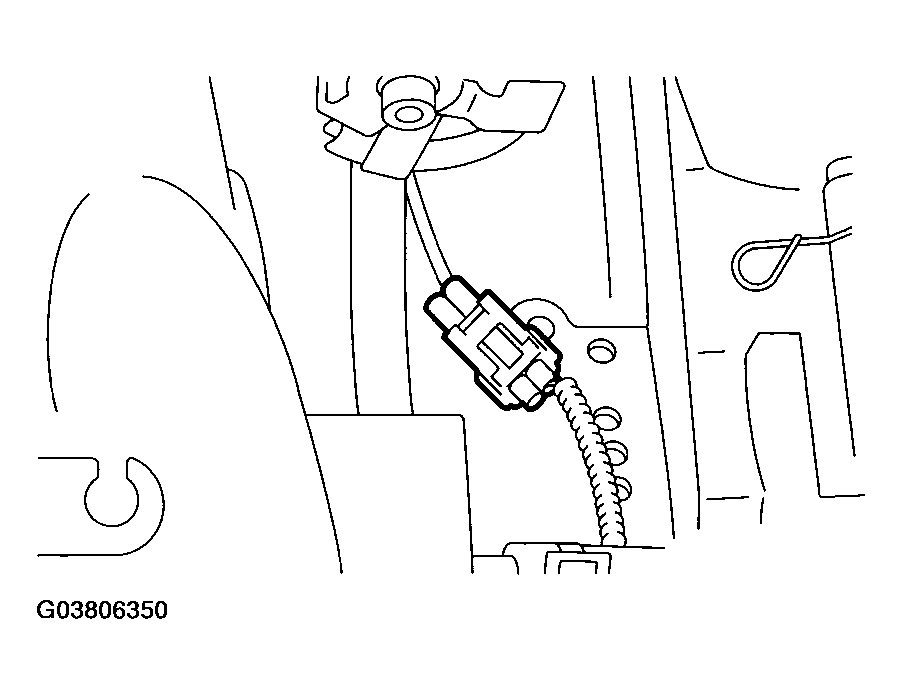

Fig 2: Connecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. < Ref. to INSTALLATION , Intercooler. >
Connect the battery ground cable to battery.

Fig 3: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
