Rear Oxygen Sensor: Installation

Before installing rear oxygen sensor, apply anti-seize compound only to the threaded portion of rear oxygen sensor to make the next removal easier.
CAUTION: Never apply anti-seize compound to protector of rear oxygen sensor.

Anti-seize compound:

SS-30 JET LUBE
Install the rear oxygen sensor.
Tightening torque:

21 N.m (2.1 kgf-m, 15.2 ft-lb)

Fig 1: Installing Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
- AT model

  Fig 2: Installing Rear Oxygen Sensor (AT Model)
  Courtesy of SUBARU OF AMERICA, INC.
- MT model

  Fig 3: Installing Rear Oxygen Sensor (MT Model)
  Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the rear oxygen sensor.

Fig 4: Connecting Connector To Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the clip to the crossmember.

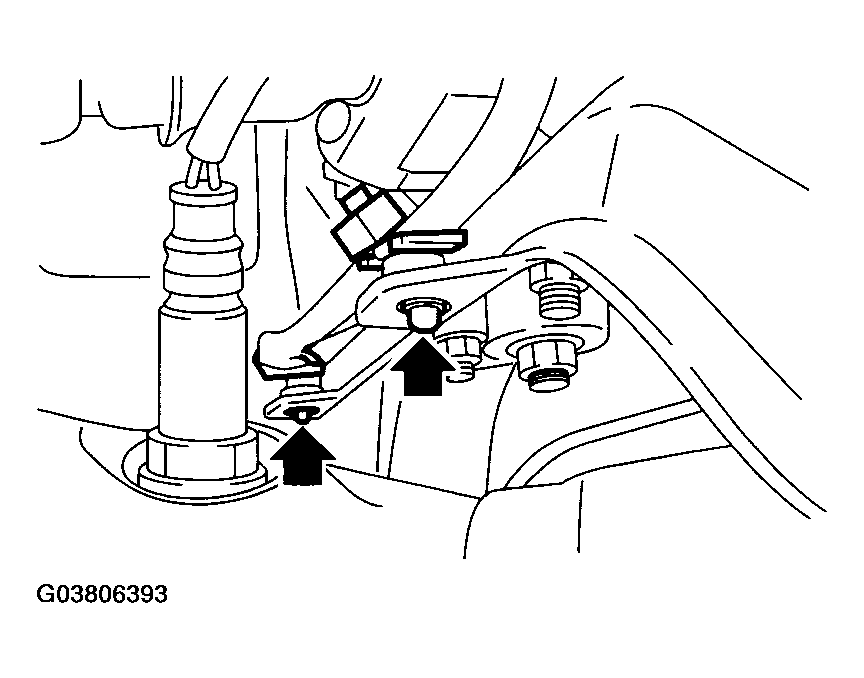

Fig 5: Connecting Clip To Crossmember
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect the battery ground cable to battery.

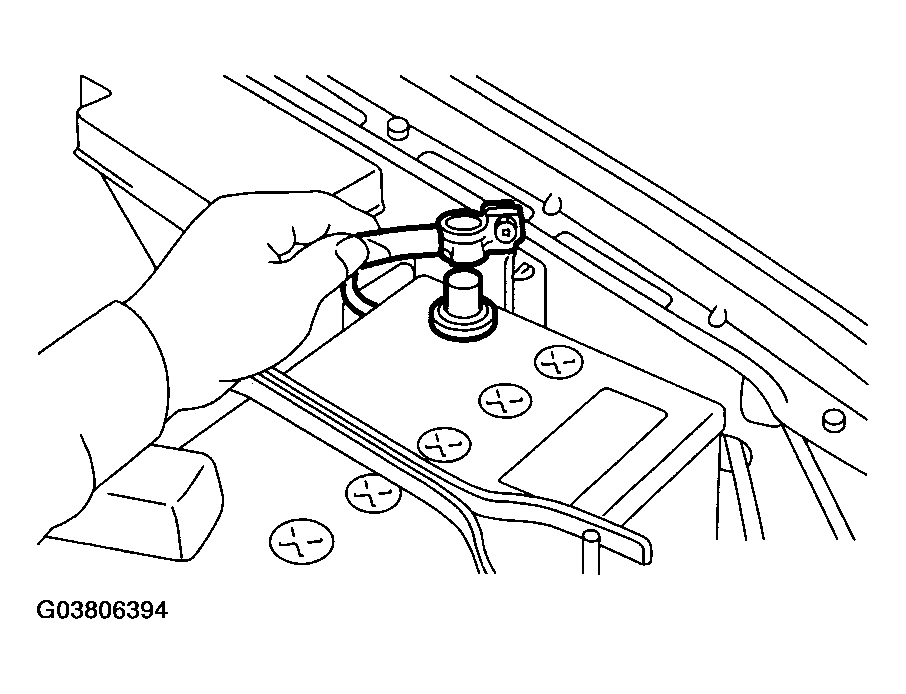

Fig 6: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
