Throttle Body: Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < Ref. to REMOVAL , Intercooler. >
Disconnect the connector from the throttle position sensor (A) and manifold absolute pressure sensor (B).

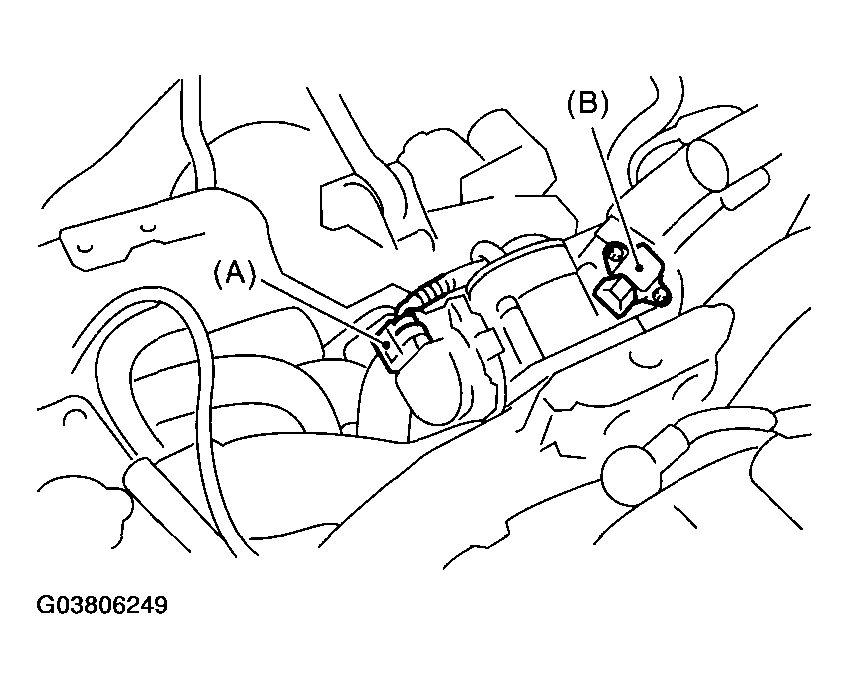

Fig 2: Disconnecting Connector From Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hoses from the throttle body.

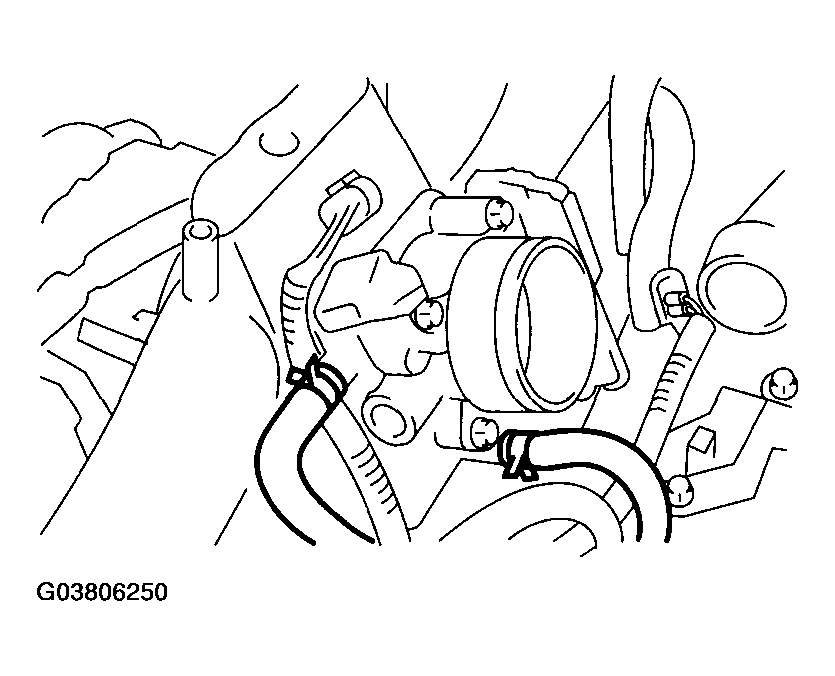

Fig 3: Disconnecting Engine Coolant Hoses From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the throttle body to intake manifold.
