Front Differential Assembly: Installation

Install the differential assembly to the converter case.
CAUTION: Pay special attention not to damage the inside of the converter case (particularly, the differential side retainer contact surface).

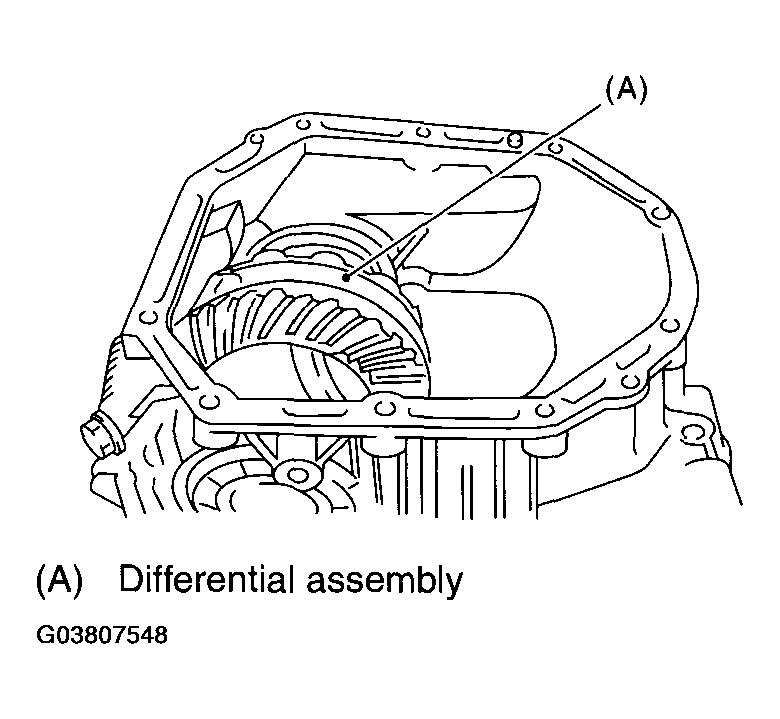

Fig 1: Installing Differential Assembly To Converter Case
Courtesy of SUBARU OF AMERICA, INC.
Install the O-rings from left and right differential side retainer.
Using ST, install the side retainers. < Ref. to REMOVAL , Front Differential Assembly. >
ST 499787000 WRENCH ASSY
Adjust the front differential backlash. < Ref. to ADJUSTMENT , Front Differential Assembly. >
Install the lock plate.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

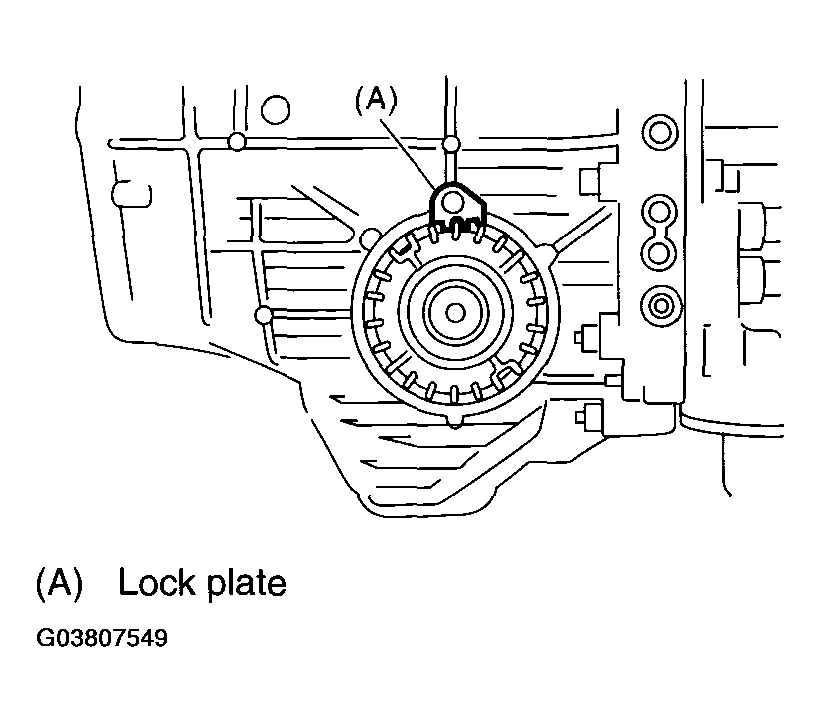

Fig 2: Installing Lock Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the new seal pipe to the converter case.

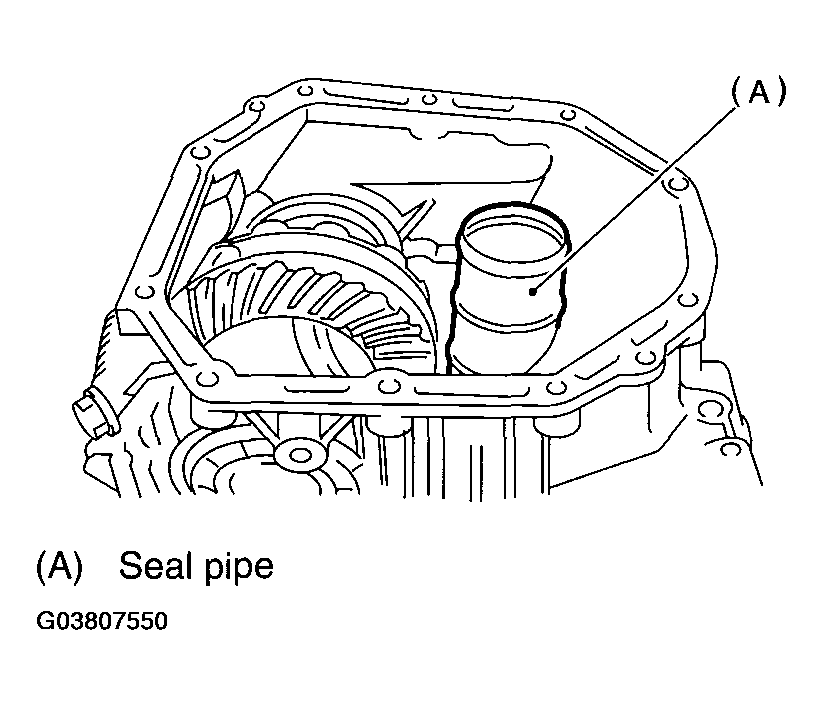

Fig 3: Installing New Seal Pipe To Converter Case
Courtesy of SUBARU OF AMERICA, INC.
Install the converter case to transmission case. < Ref. to INSTALLATION , Converter Case. >
Insert inhibitor switch and transmission connector into stay.

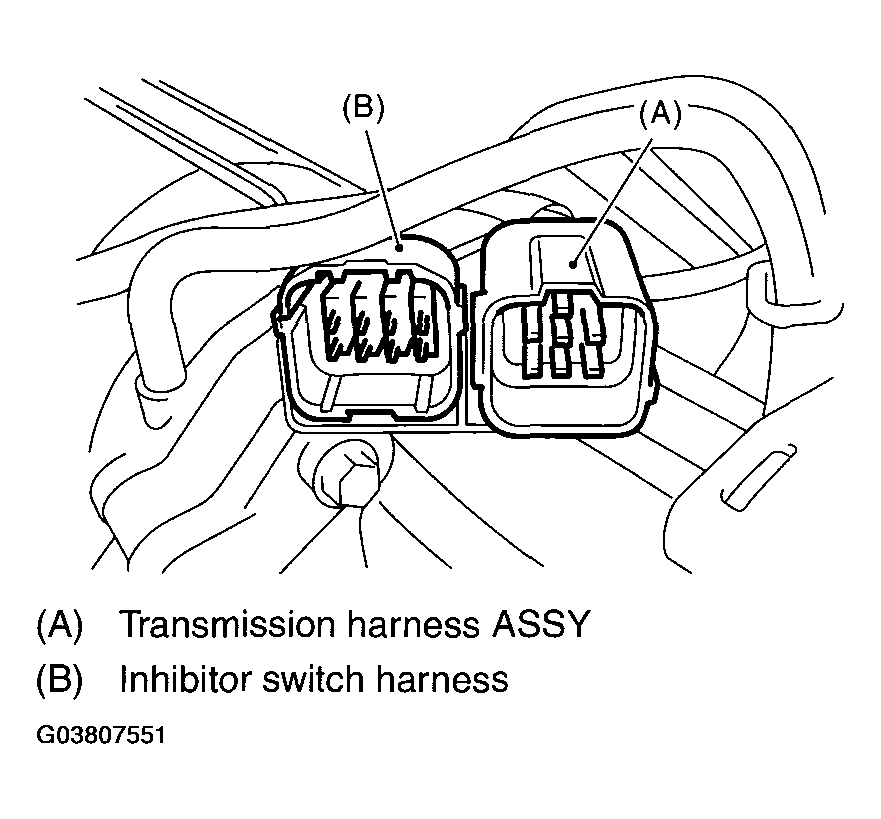

Fig 4: Inserting Inhibitor Switch And Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install ATF cooler pipes. < Ref. to INSTALLATION , ATF Cooler Pipe and Hose. >
Install the oil charge pipe with O-ring < Ref. to INSTALLATION , Oil Charge Pipe. >
Insert the input shaft while turning lightly by hand and verify the protrusion amount.
Normal protrusion A:

50 - 55 mm (1.97 - 2.17 in)

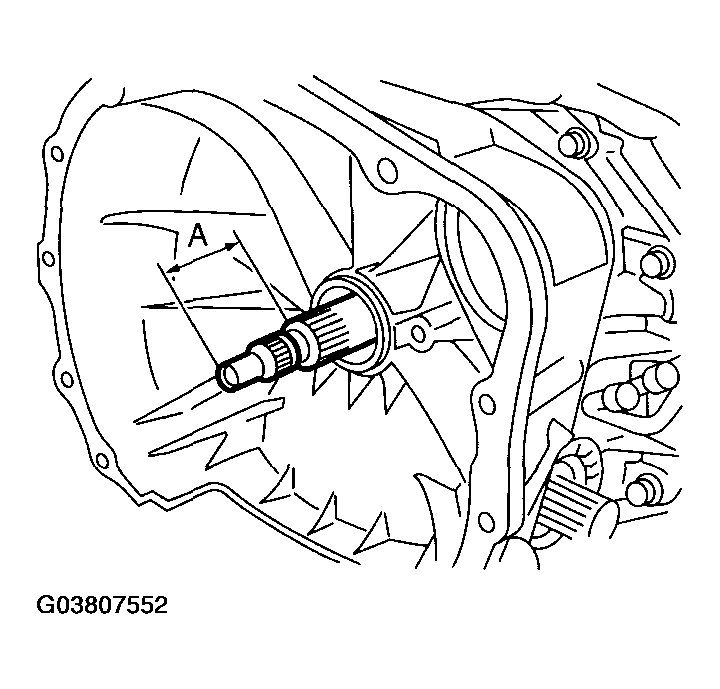

Fig 5: Identifying Normal Protrusion A
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. < Ref. to INSTALLATION , Torque Converter Clutch Assembly. >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
