Transmission Case And Control Device

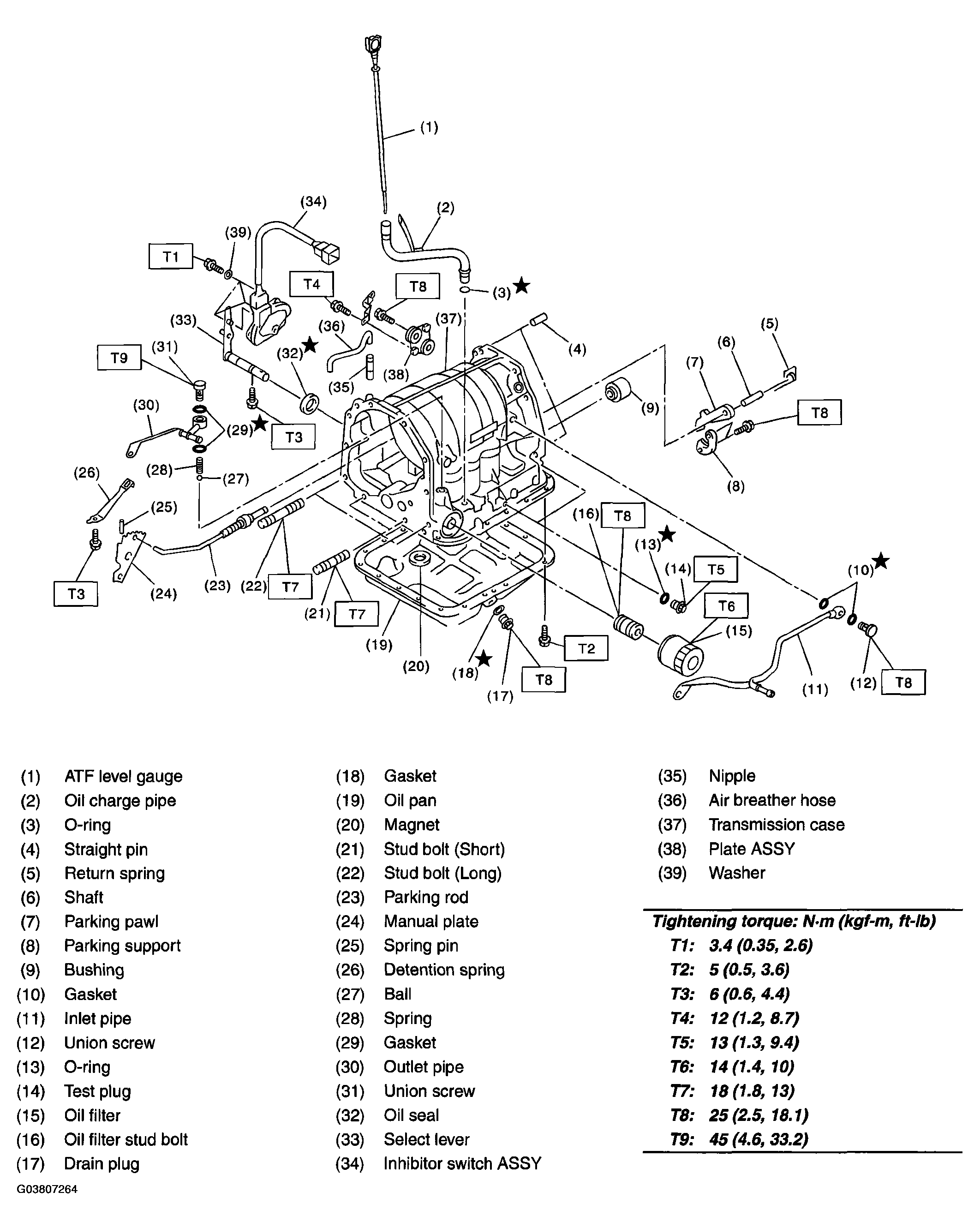

Fig 1: Exploded View Of Transmission Case And Control Device With Torque Specifications
G03807264Courtesy of SUBARU OF AMERICA, INC.
