Key Interlock Does Not Lock Or Release

WIRING DIAGRAM:

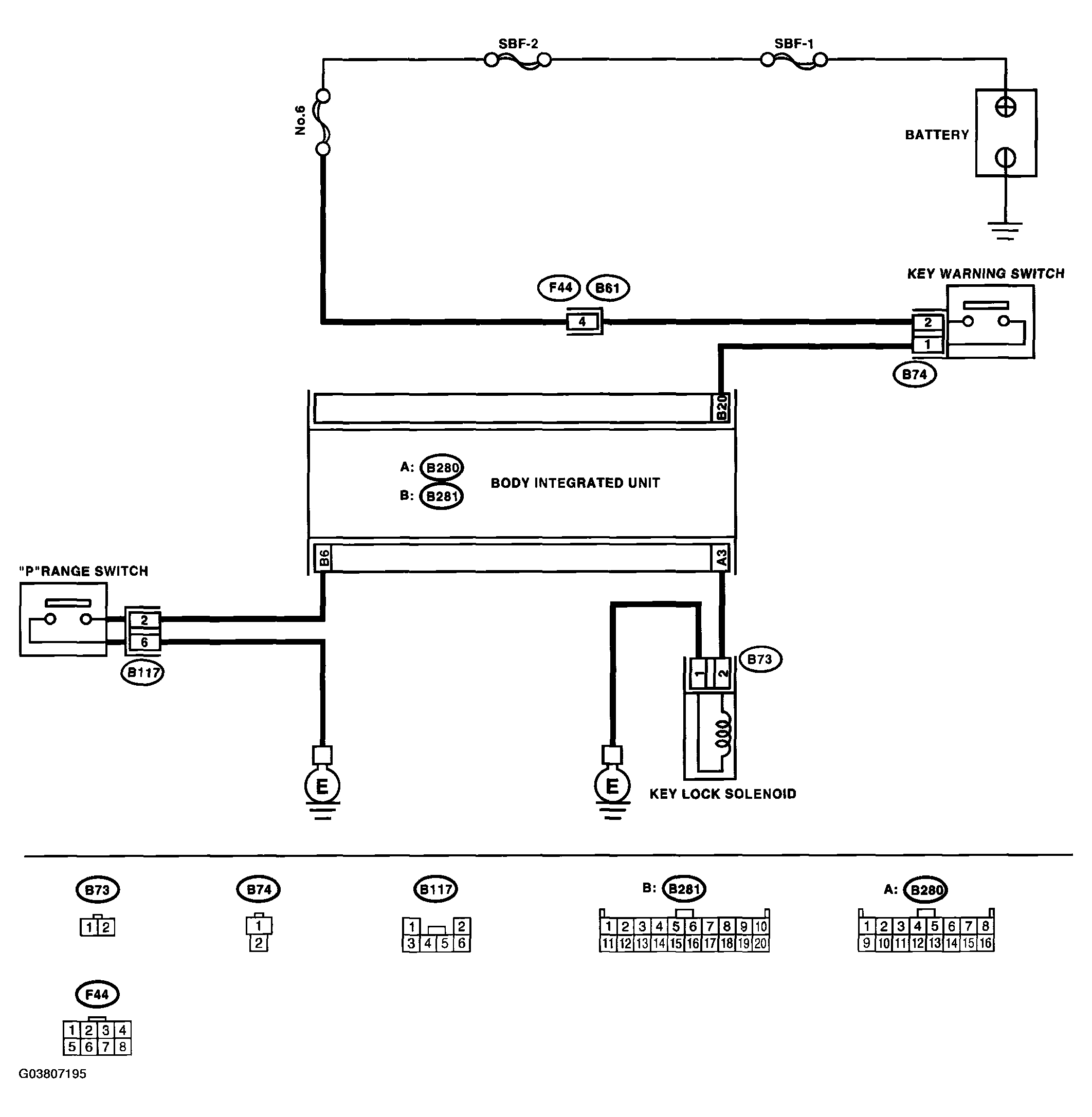

Fig 1: Wiring Diagram - Key Interlock Does Not Lock Or Release
G03807195Courtesy of SUBARU OF AMERICA, INC.
KEY INTERLOCK DOES NOT LOCK OR RELEASE INSPECTION

Step Check Yes No
1 CHECK HARNESS BETWEEN BATTERY AND KEY WARNING SWITCH.
  1. Disconnect the connector key warning switch.
  2. Measure the voltage of harness between key warning switch and chassis ground.

Connector & terminal
(B74) No. 2 (+) - Chassis ground ( ): 		 Is the voltage 9 - 16 V? Go to step 2.  Repair the open or short circuit in harness between battery and key warning switch.
2 CHECK KEY WARNING SWITCH.
Measure the resistance of key warning switch connector terminals.
Terminal
No. 1 - No. 2: 		 Is the resistance more than 1 M : ? Replace the key warning switch. Go to step 3.
3 CHECK KEY WARNING SWITCH.
  1. Remove the key.
  2. Measure the resistance of key warning switch connector terminals.

Terminal
No. 1 - No. 2: 		 Is the resistance more than 1 M : ? Go to step 4.  Replace the key warning switch.
4 CHECK HARNESS BETWEEN AT SHIFT LOCK CONTROL MODULE AND KEY WARNING SWITCH.
  1. Disconnect the body integrated unit connector.
  2. Measure the voltage of harness body integrated unit and chassis ground.

Connector & terminal
(B281) No. 20 (+) - Chassis ground ( ): 		 Is the voltage more than 9 V? Go to step 5.  Repair the open circuit in harness between body integrated unit and key warning switch.
5 CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND KEY LOCK SOLENOID.
  1. Disconnect the connector of key lock solenoid.
  2. Measure the resistance of harness between body integrated unit and key lock solenoid.

Connector & terminal
(B73) No. 2 - (B280) No. 3: 		 Is the resistance more than 1 M : ? Repair the open circuit in harness between body integrated unit and key lock solenoid. Go to step 6.
6 CHECK HARNESS BETWEEN BODY INTEGRATED UNIT AND KEY LOCK SOLENOID.
Measure the resistance of harness between body integrated unit and chassis ground.
Connector & terminal
(B280) No. 3 - Chassis ground: 		 Is the resistance more than 1 : ? Go to step 7.  Repair the short circuit in harness between body integrated unit and key lock solenoid.
7 CHECK HARNESS BETWEEN KEY LOCK SOLENOID AND CHASSIS GROUND.
Measure the resistance of harness between key lock solenoid and chassis ground.
Connector & terminal
(B73) No. 1 - Chassis ground: 		 Is the resistance less than 10 : ? Go to step 8.  Repair the open circuit in harness between key lock solenoid and chassis ground.
8 CHECK KEY LOCK SOLENOID.
Measure the resistance of key lock solenoid connector terminals.
Terminal
No. 1 - No. 2: 		 Is the resistance 4 - 8 : ? Go to step 9.  Replace the key lock solenoid.
9 CHECK HARNESS BETWEEN "P" RANGE SWITCH AND CHASSIS GROUND.
Measure the resistance of harness between "P" range switch and chassis ground.
Connector & terminal
(B117) No. 2 - Chassis ground: 		 Is the resistance less than 1 : ? Go to step 10.  Repair the short circuit in harness between "P" range switch and body integrated unit.
10 CHECK HARNESS BETWEEN AT SHIFT LOCK CONTROL MODULE AND "P" RANGE SWITCH.
  1. Disconnect the connector from "P" range switch.
  2. Measure the resistance of harness between body integrated unit and "P" range switch.

Connector & terminal
(B117) No. 2 - (B281) No. 6: 		 Is the resistance more than 1 M : ? Repair the open circuit in harness between body integrated unit and "P" range switch. Go to step 11.
11 CHECK HARNESS BETWEEN "P" RANGE SWITCH AND CHASSIS GROUND.
Measure the resistance of harness "P" range switch and chassis ground.
Connector & terminal
(B117) No. 6 - Chassis ground: 		 Is the resistance more than 1 M : ? Repair the open circuit in harness between "P" range switch and chassis ground. Go to step 12.
12 CHECK "P" RANGE SWITCH.
  1. Move the select lever to "P" range.
  2. Measure resistance between "P" range switch connector terminals.

Terminal
No. 2 - No. 6: 		 Is the resistance less than 1 : ? Go to step 13.  Replace the "P" range switch.
13 CHECK "P" RANGE SWITCH.
  1. Move the select lever to other than "P" range.
  2. Measure resistance between "P" range switch connector terminals.

Terminal
No. 2 - No. 6: 		 Is the resistance more than 1 M : ? Go to step 14.  Replace the "P" range switch.
14 CHECK OUTPUT SIGNAL FOR BODY INTEGRATED UNIT.
  1. Connect all connectors.
  2. Turn the ignition switch to ON (engine OFF).
  3. Move the select lever to "P" range.
  4. Press the brake pedal.
  5. Measure the voltage between body integrated unit connector and chassis ground.

Connector & terminal
(B280) No. 3 (+) - Chassis ground ( ): 		 Is the voltage 7.5 - 16 V? Go to step 15.  Replace the body integrated unit.
15 CHECK POOR CONTACT.  Is there poor contact in connector? Repair the poor contact. Replace the body integrated unit.
