Relay Box
- Disconnect the ground cable from battery.
- Remove the air intake duct from engine compartment to facilitate removal of relay box.
- Disconnect the connector from relay box.
- Unlock the cable clip.

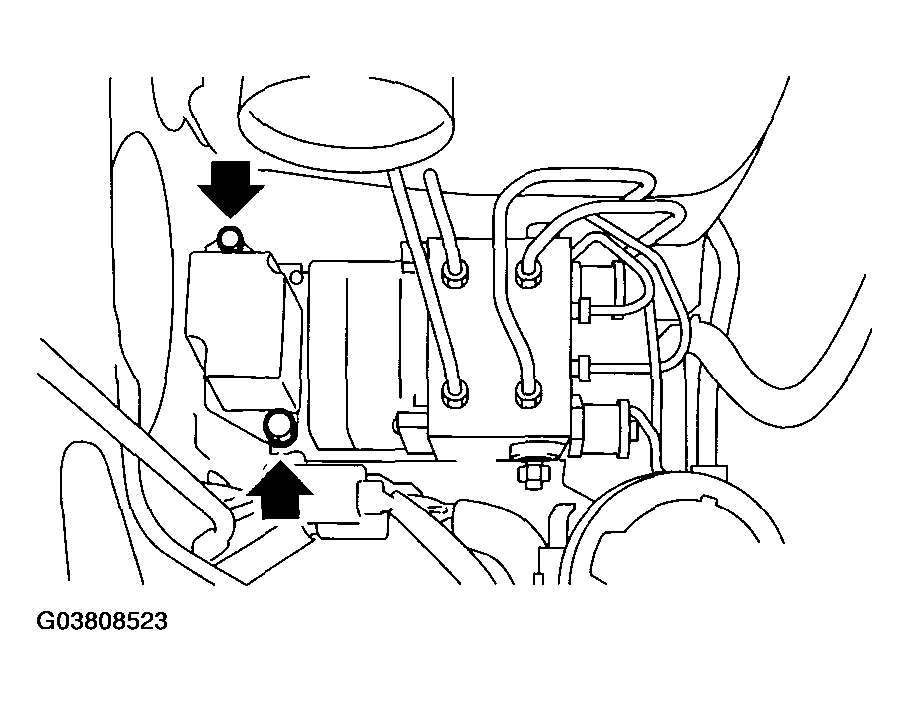

- Remove the bolts which secure relay box, and remove the relay box and connector bracket.
Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Do not drop or bump the relay box.
