Starting System & Charging System (H4SO): General Description: Components: Generator

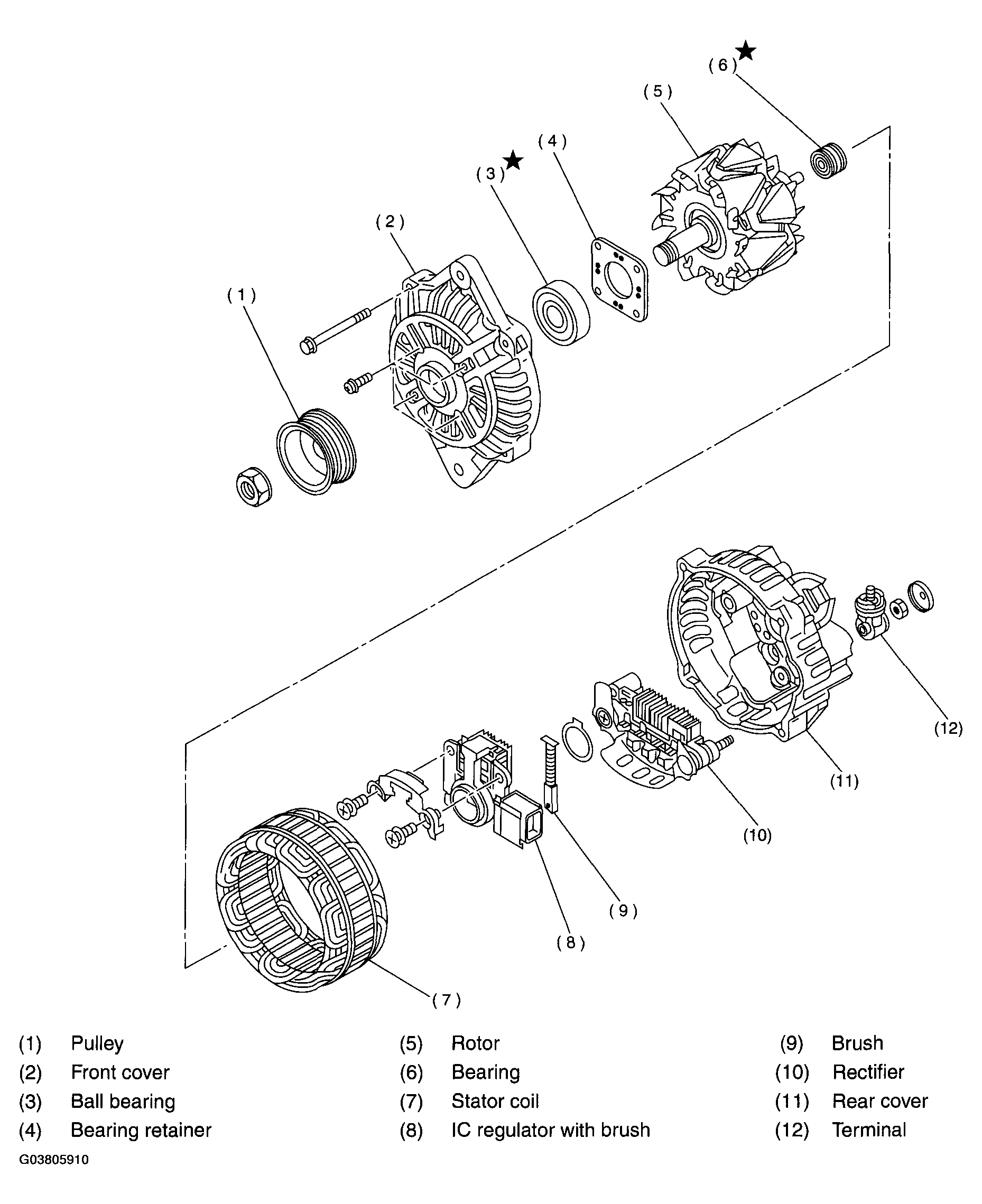

Fig 1: Exploded View Of Generator Assembly Components
G03805910Courtesy of SUBARU OF AMERICA, INC.
