Starting System & Charging System (H4SO): Generator: Disassembly

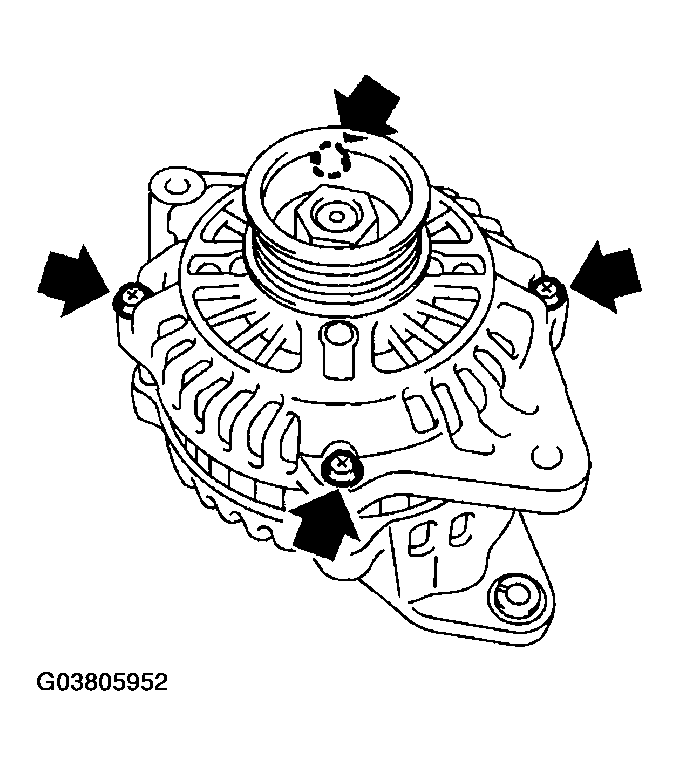

Remove the four through-bolts.

Fig 1: Removing Through-Bolts
Courtesy of SUBARU OF AMERICA, INC.

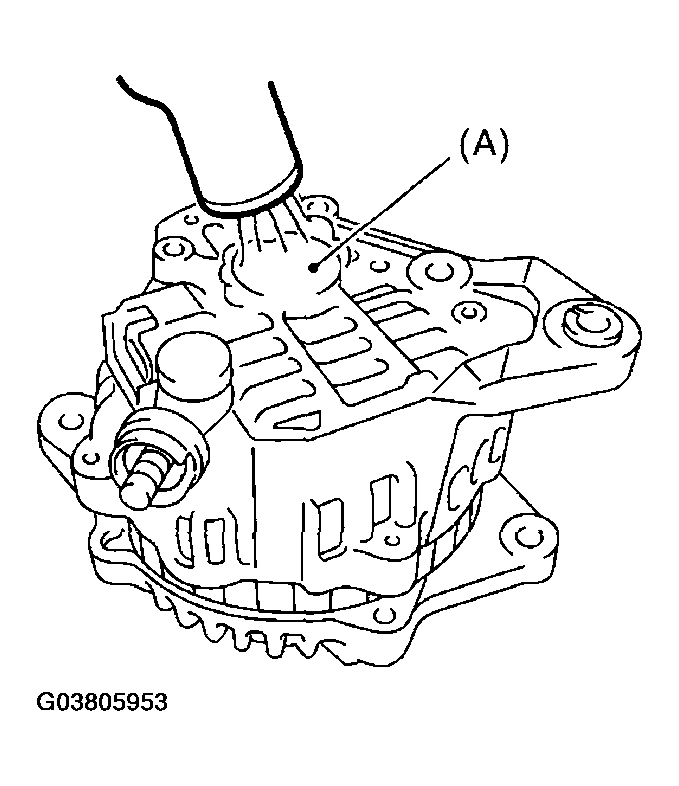

Heat the portion (A) of rear cover to 50°C (122°F) with heater drier.

Fig 2: Heating Rear Cover
Courtesy of SUBARU OF AMERICA, INC.

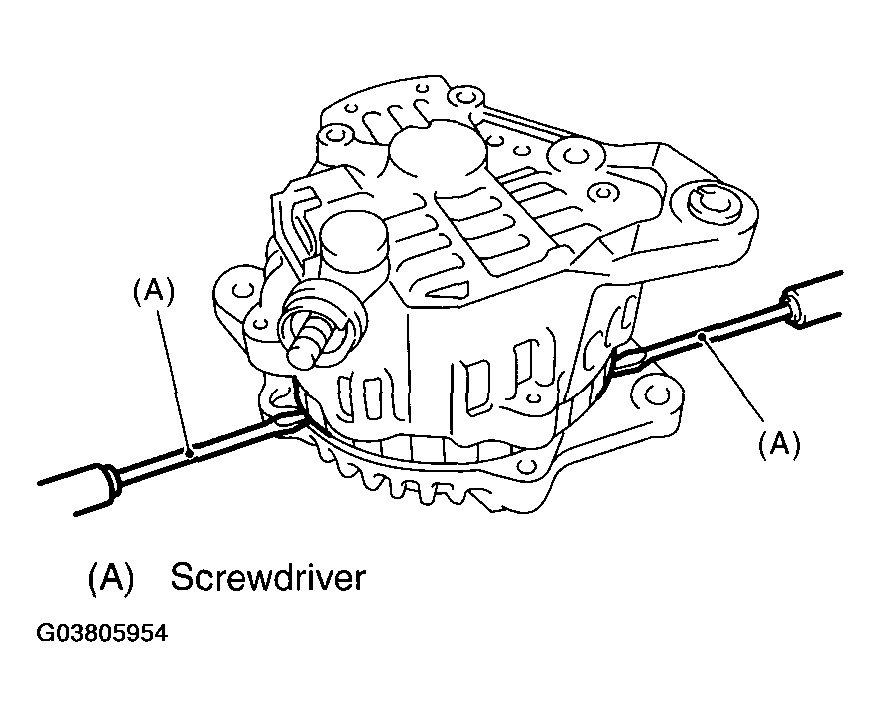

Then insert the tip of a flat tip screwdriver into the gap between stator core and front cover. Pry them apart to disassemble.

Fig 3: Prying Rear Cover
Courtesy of SUBARU OF AMERICA, INC.

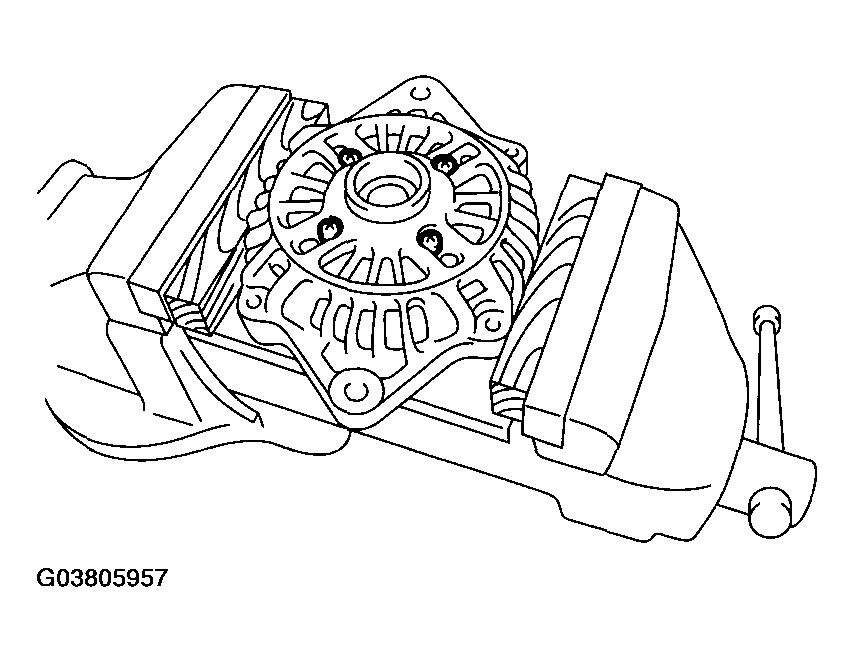

Hold the rotor with a vise and remove pulley nut.

Fig 4: Removing Pulley Nut
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: When holding the rotor with vise, insert aluminum plates or wood pieces on the contact surfaces of vise to prevent rotor from damage.

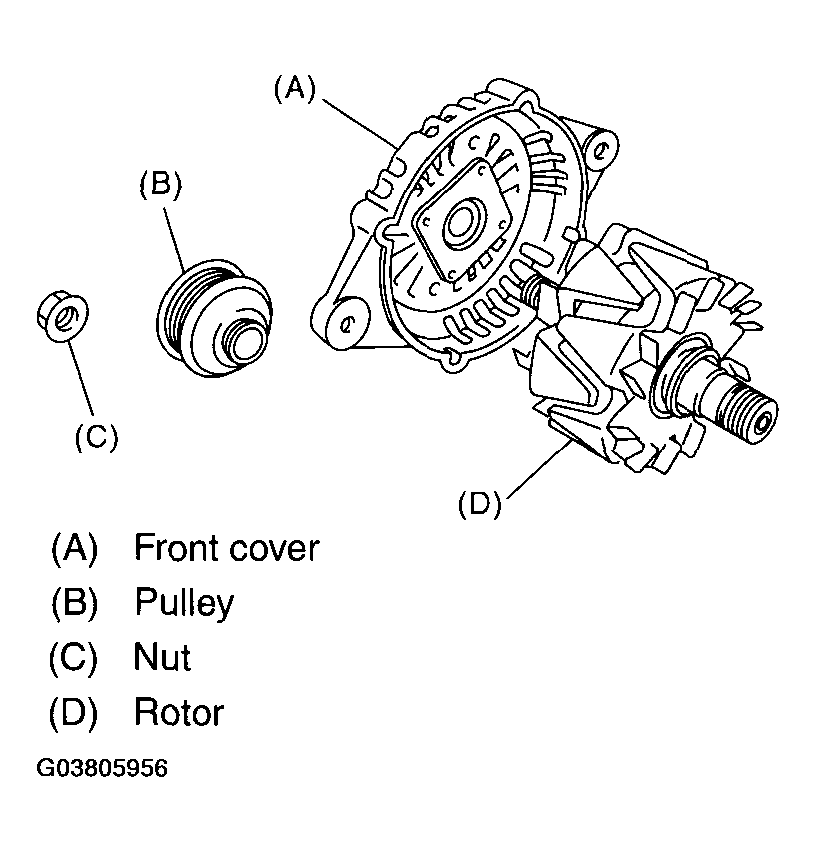

Fig 5: Identifying Front Cover, Pulley, Nut And Rotor
Courtesy of SUBARU OF AMERICA, INC.
Remove the ball bearing as follows.
1. Remove the bolt, and then remove the bearing retainer.

  Fig 6: Removing Bearing Retainer
  Courtesy of SUBARU OF AMERICA, INC.
2. Firmly install an appropriate tool (such as a fit socket wrench) to bearing inner race.

  Fig 7: Installing Tool To Bearing Inner Race
  Courtesy of SUBARU OF AMERICA, INC.
3. Push the ball bearing off the front cover using a press.
Remove the bearing from rotor using a bearing puller.

Fig 8: Removing Bearing From Rotor
Courtesy of SUBARU OF AMERICA, INC.
Unsolder connection between rectifier and stator coil to remove the stator coil.
CAUTION: Do not allow the 180 - 270 W solding bit to contact the terminals for more than 5 seconds at a time because the rectifier cannot withstand heat very well.

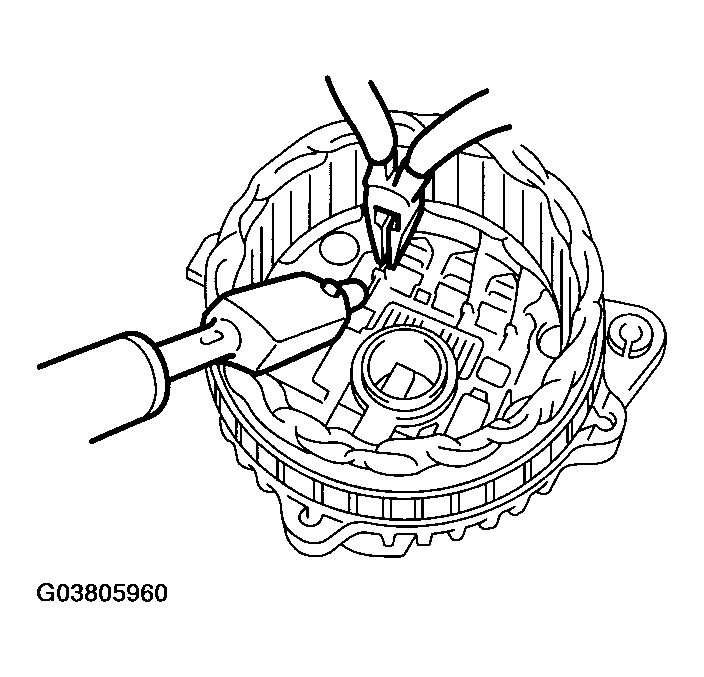

Fig 9: Unsoldering Connection Between Rectifier And Stator Coil
Courtesy of SUBARU OF AMERICA, INC.
Remove the IC regulator as follows.
1. Remove the screws which secure IC regulator to rear cover.

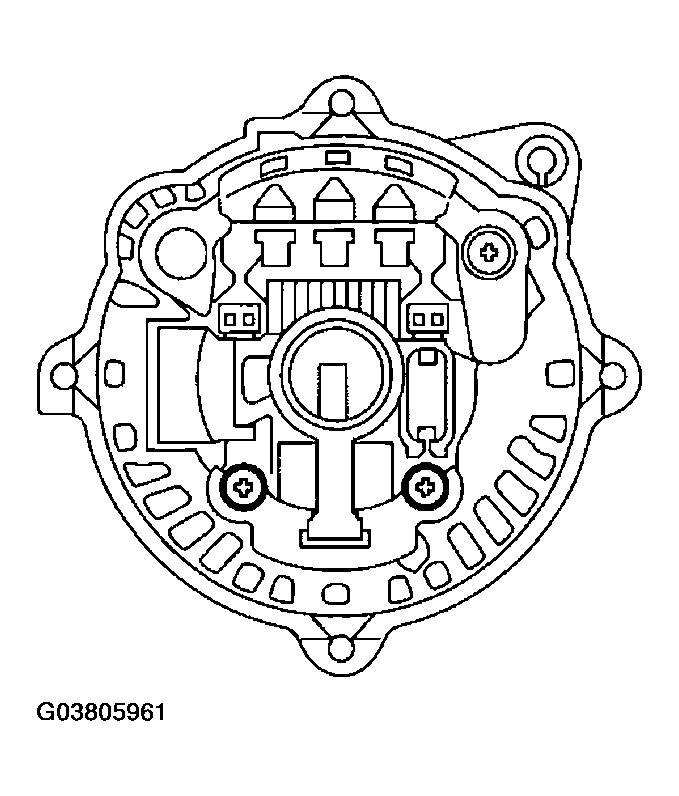

  Fig 10: Removing Screws Securing IC Regulator To Rear Cover
  Courtesy of SUBARU OF AMERICA, INC.

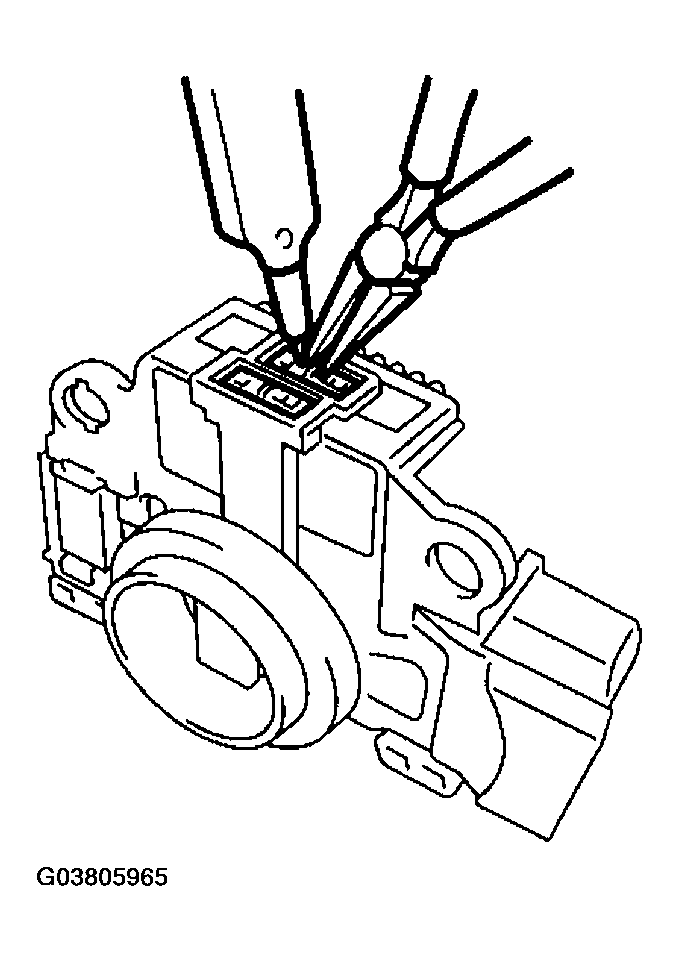

2. Unsolder the connection between IC regulator and rectifier to remove the IC regulator.

  Fig 11: Unsoldering Connection Between IC Regulator And Rectifier
  Courtesy of SUBARU OF AMERICA, INC.
Remove the brush as follows.
1. Remove cover A.

  Fig 12: Removing Cover A
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the cover B.

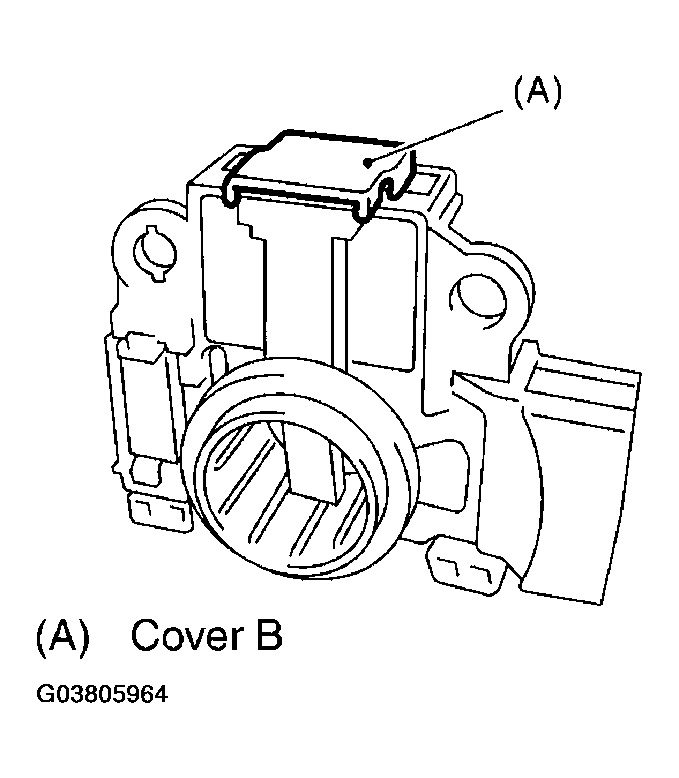

  Fig 13: Removing Cover B
  Courtesy of SUBARU OF AMERICA, INC.
3. Separate the brush from connection to remove.

  Fig 14: Separating Brush From Connection
  Courtesy of SUBARU OF AMERICA, INC.
Remove the rectifier as follows.
1. Remove the bolts which secure the rectifier.

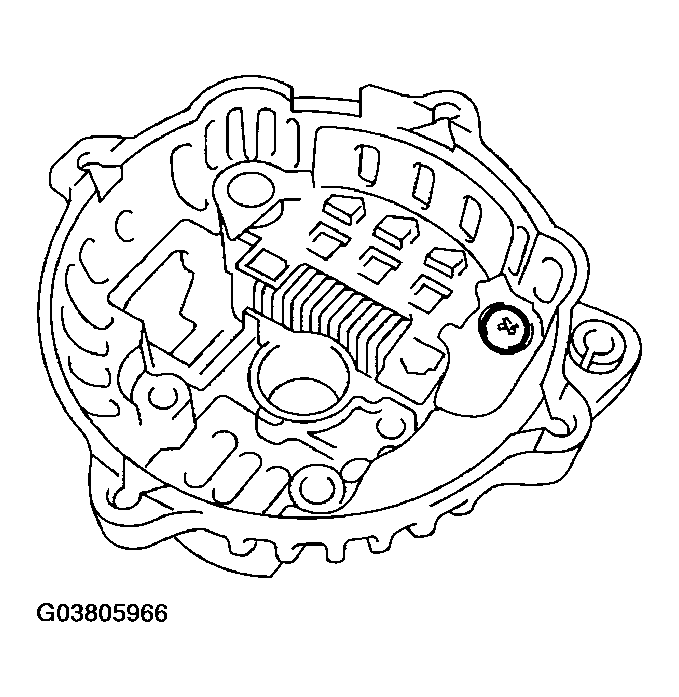

  Fig 15: Removing Bolts Securing Rectifier
  Courtesy of SUBARU OF AMERICA, INC.

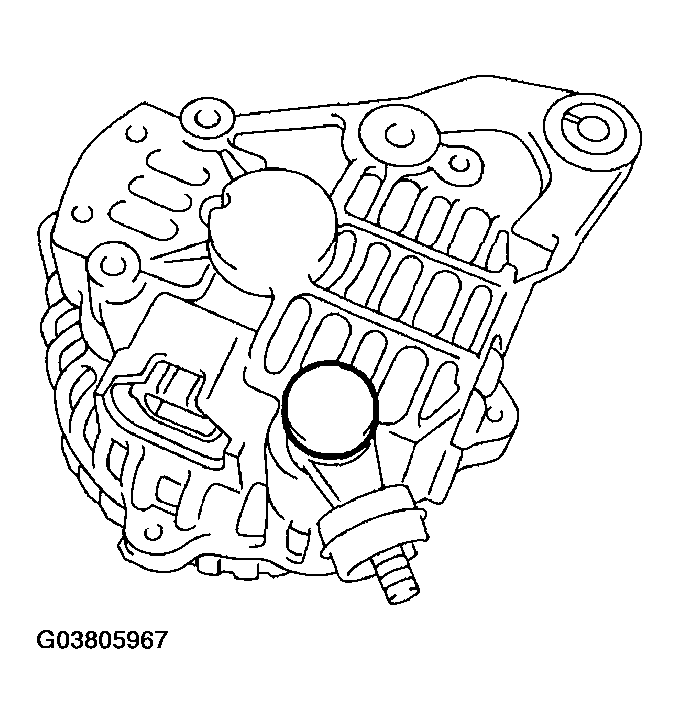

2. Remove the cover of terminal B.

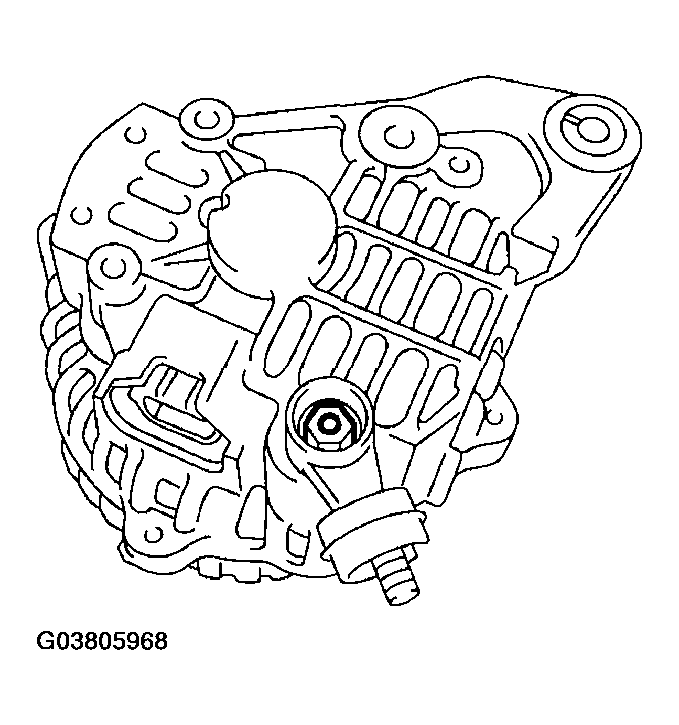

  Fig 16: Removing Terminal B Cover
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the nut of terminal B, and then remove the rectifier.

  Fig 17: Removing Terminal B Nut And Rectifier
  Courtesy of SUBARU OF AMERICA, INC.
