A/T & M/T Control Systems: Electrical Component Location: Location

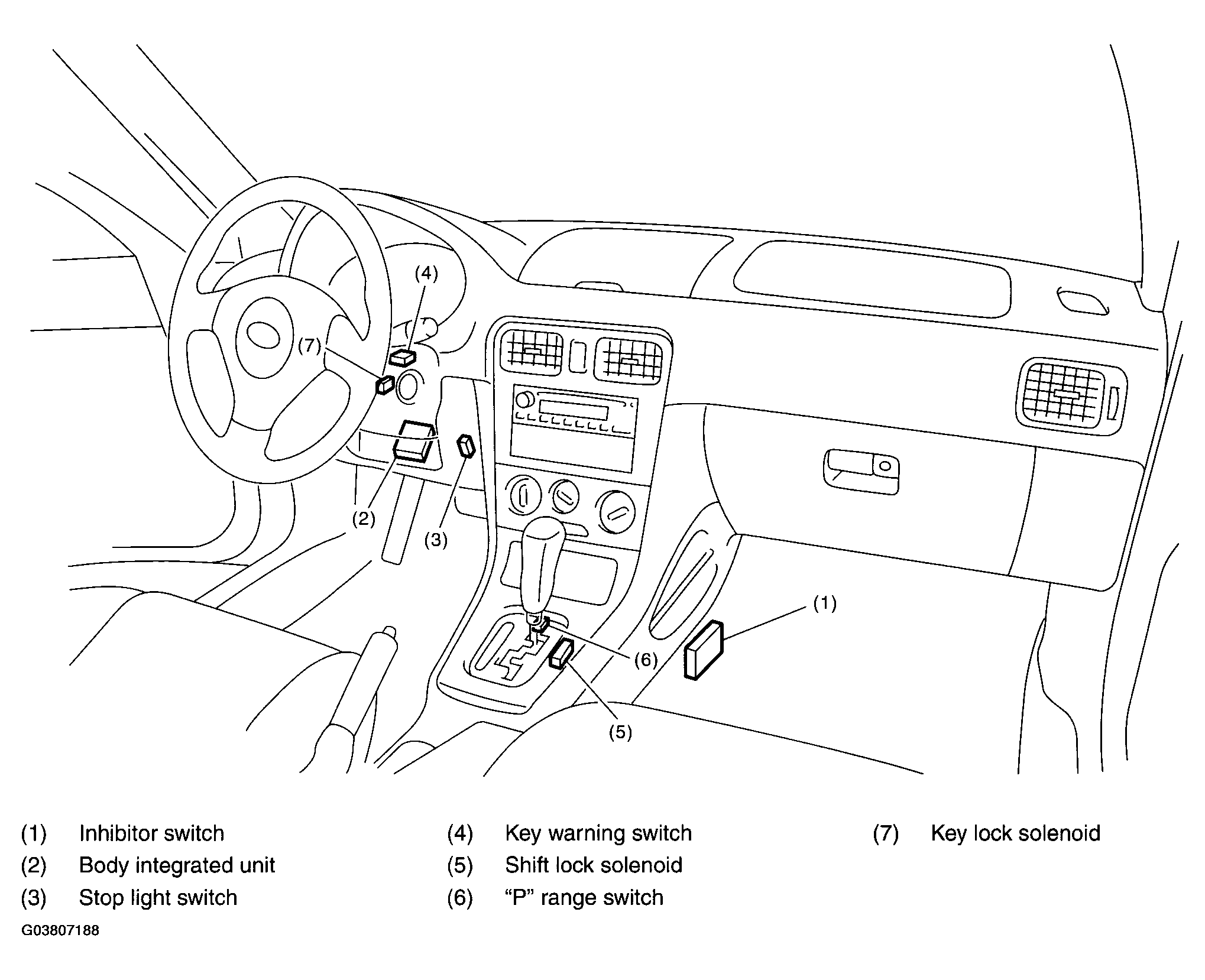

Fig 1: Identifying Electrical Components Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

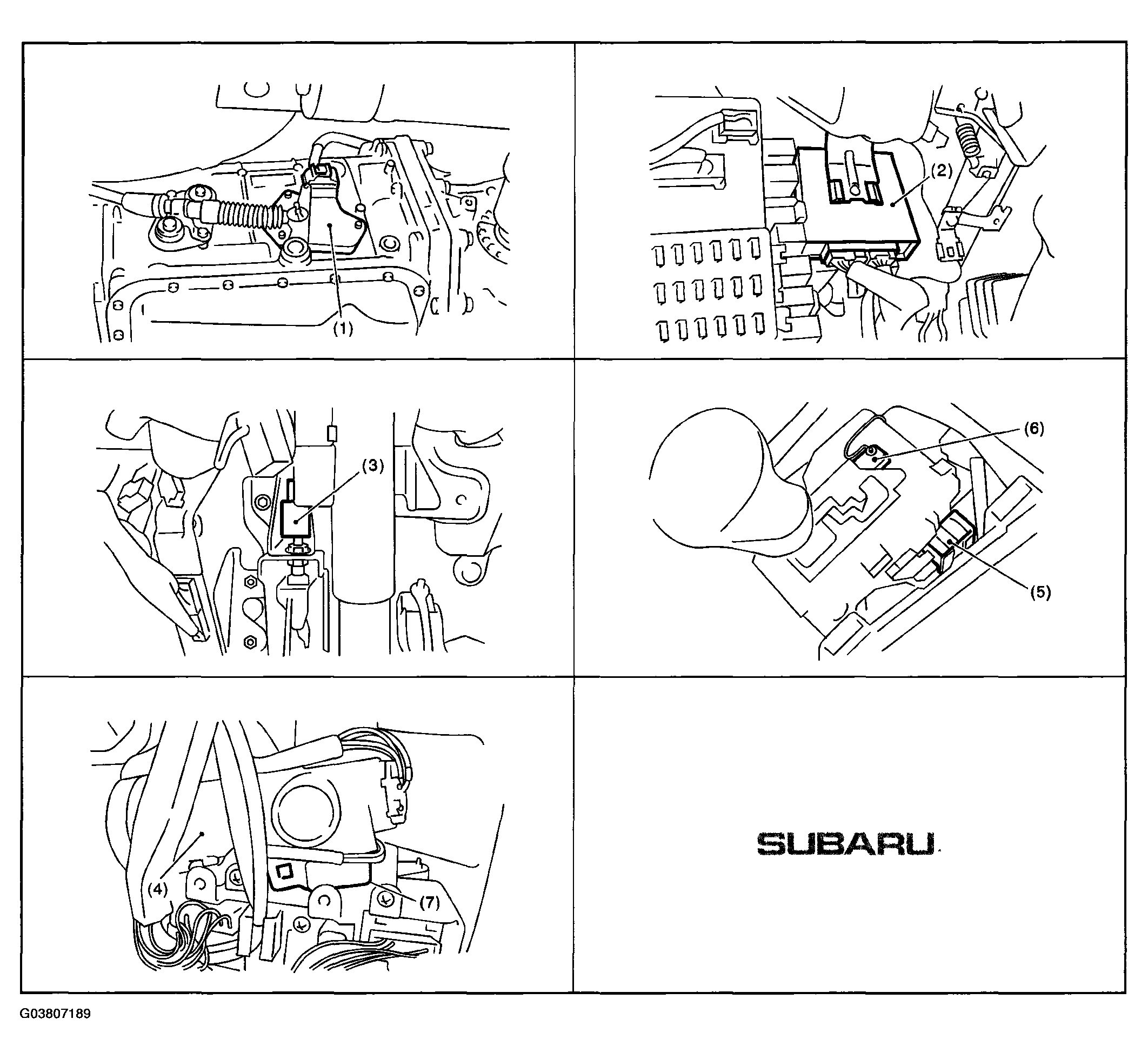

Fig 2: Identifying Electrical Components Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
