MT Gear Shift Lever: Disassembly

Disassemble the lock wire.

Fig 1: Disassembling Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the boss from rod COMPL.

Fig 2: Removing Boss From Rod COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod COMPL from lever COMPL.

Fig 3: Removing Rod COMPL From Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.

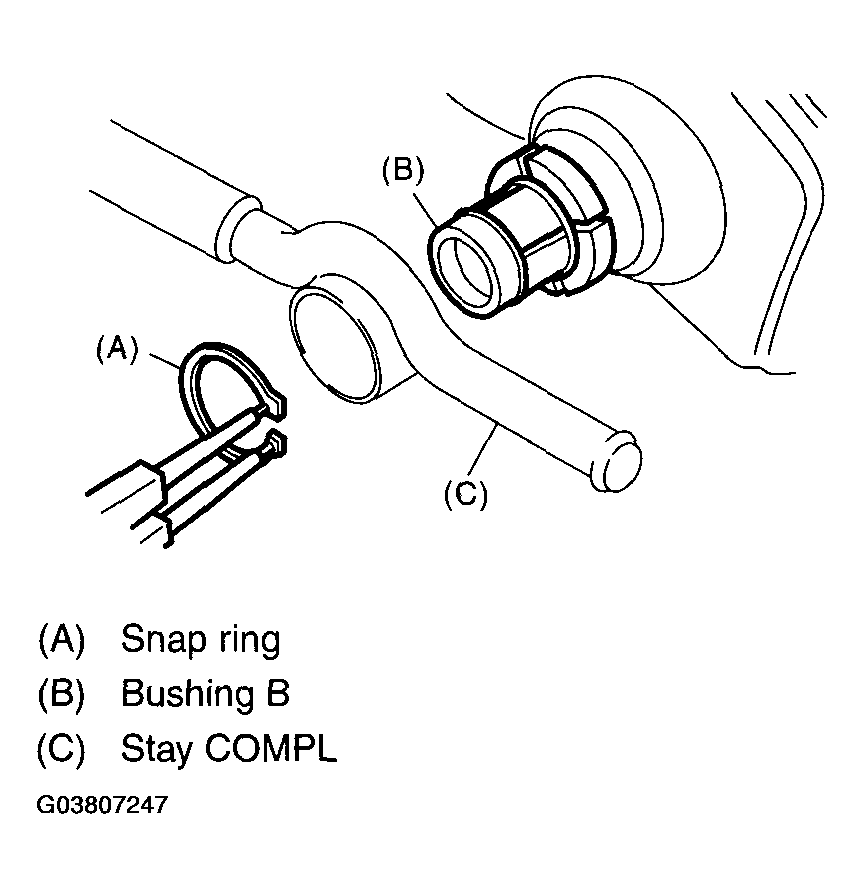

Remove the snap ring from bushing B, and then disconnect the stay COMPL.

Fig 4: Disconnecting Stay COMPL
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot from gear shift lever.
Remove the bushing and spacer from boss.

Fig 5: Removing Bushing And Spacer From Boss
Courtesy of SUBARU OF AMERICA, INC.
Remove the stay bushing and cushion rubber from stay COMPL.

Fig 6: Removing Stay Bushing And Cushion Rubber From Stay COMPL
Courtesy of SUBARU OF AMERICA, INC.

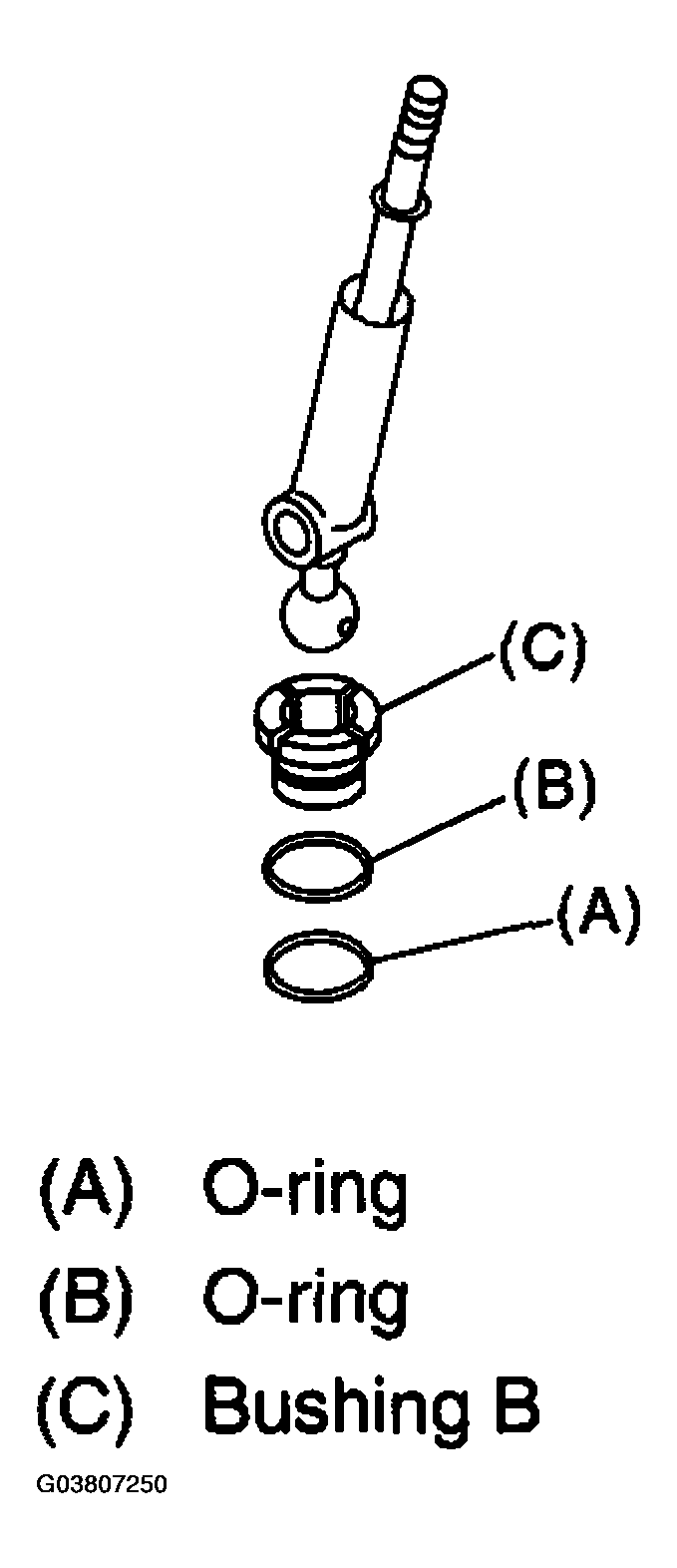

Remove O-ring, and then disconnect the bushing B.

Fig 7: Disconnecting Bushing B
Courtesy of SUBARU OF AMERICA, INC.

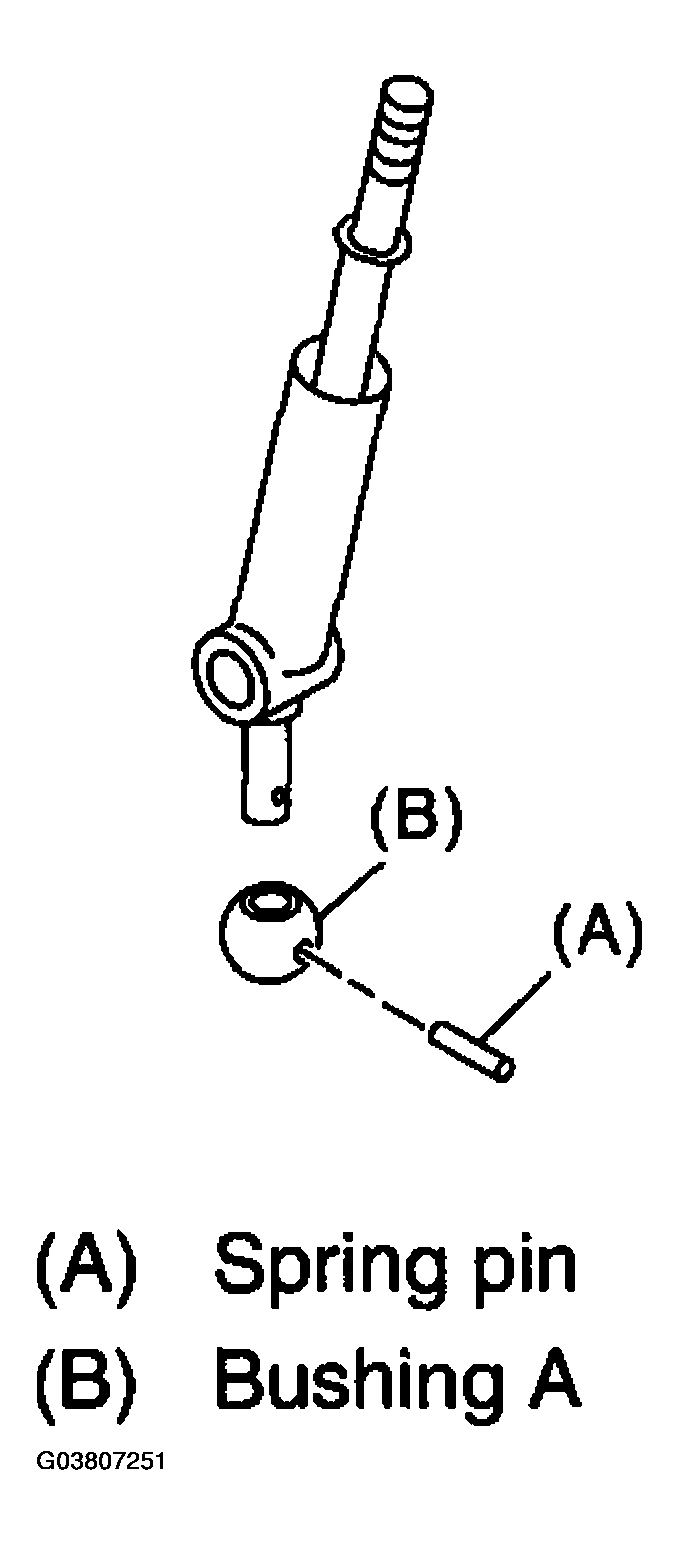

Draw out the spring pin, and then remove the bushing A from gear shift lever.

Fig 8: Removing Bushing A From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
