Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

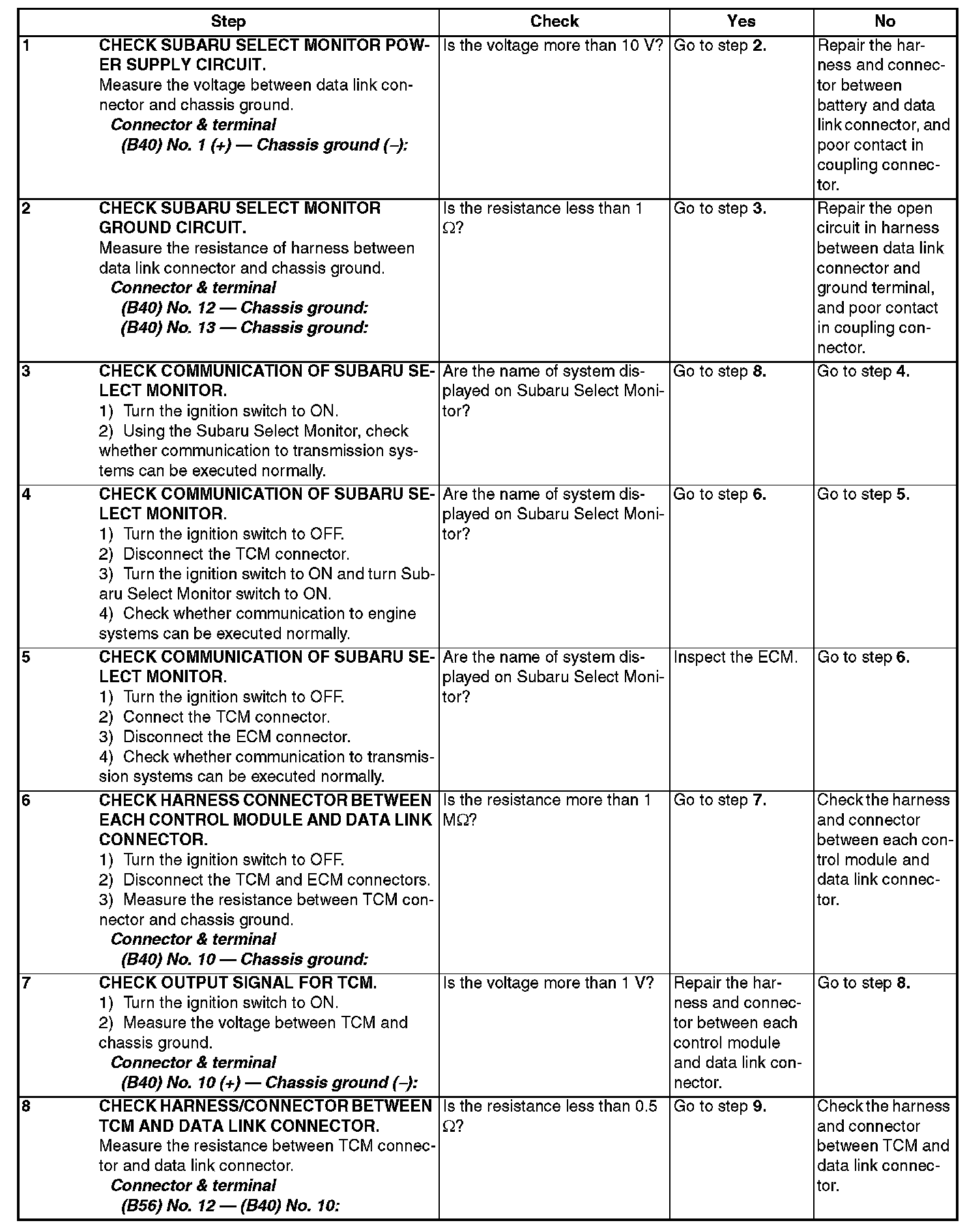

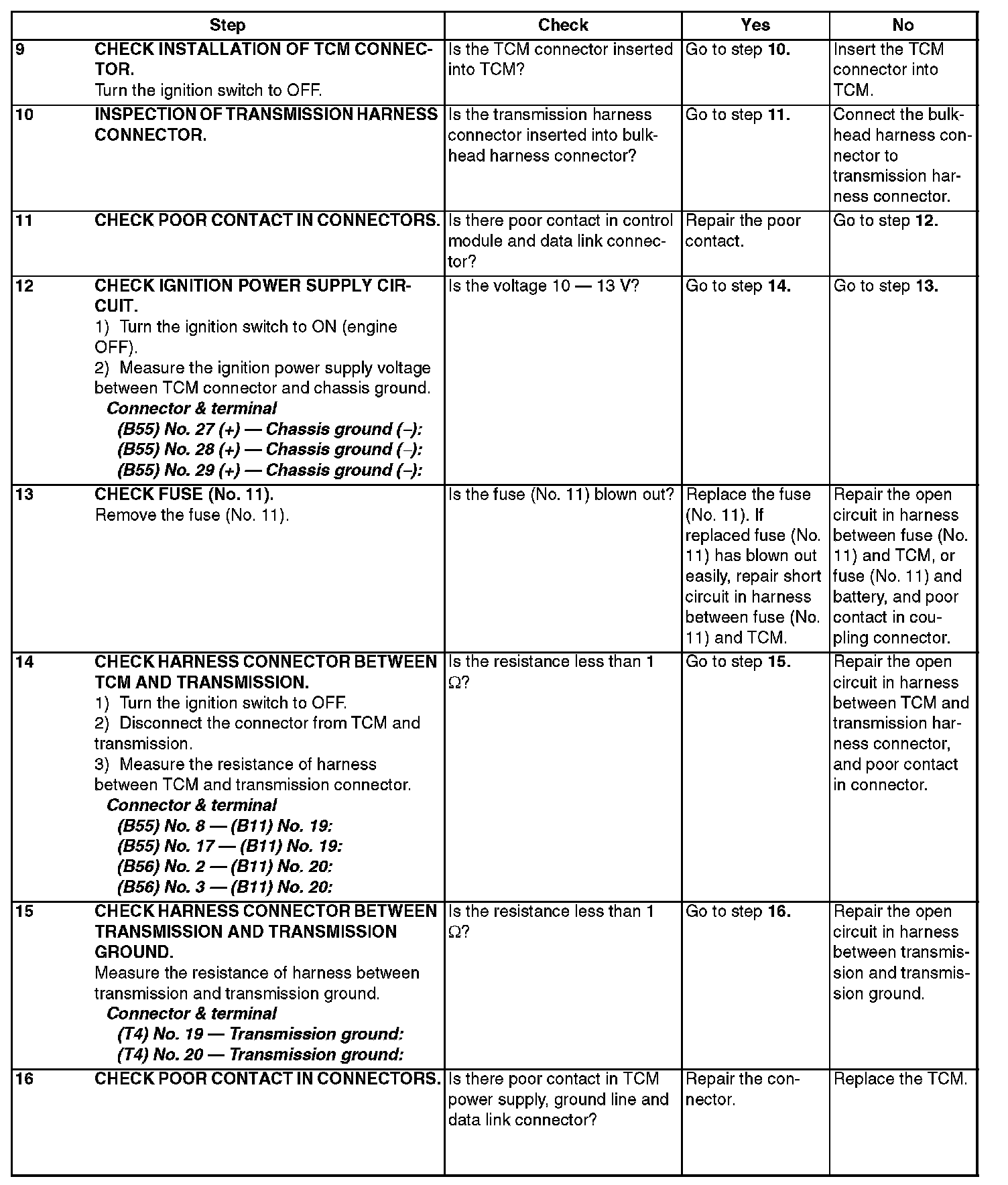

DIAGNOSIS:
^ Faulty harness connector

TROUBLE SYMPTOM:
^ Subaru select monitor communication failure

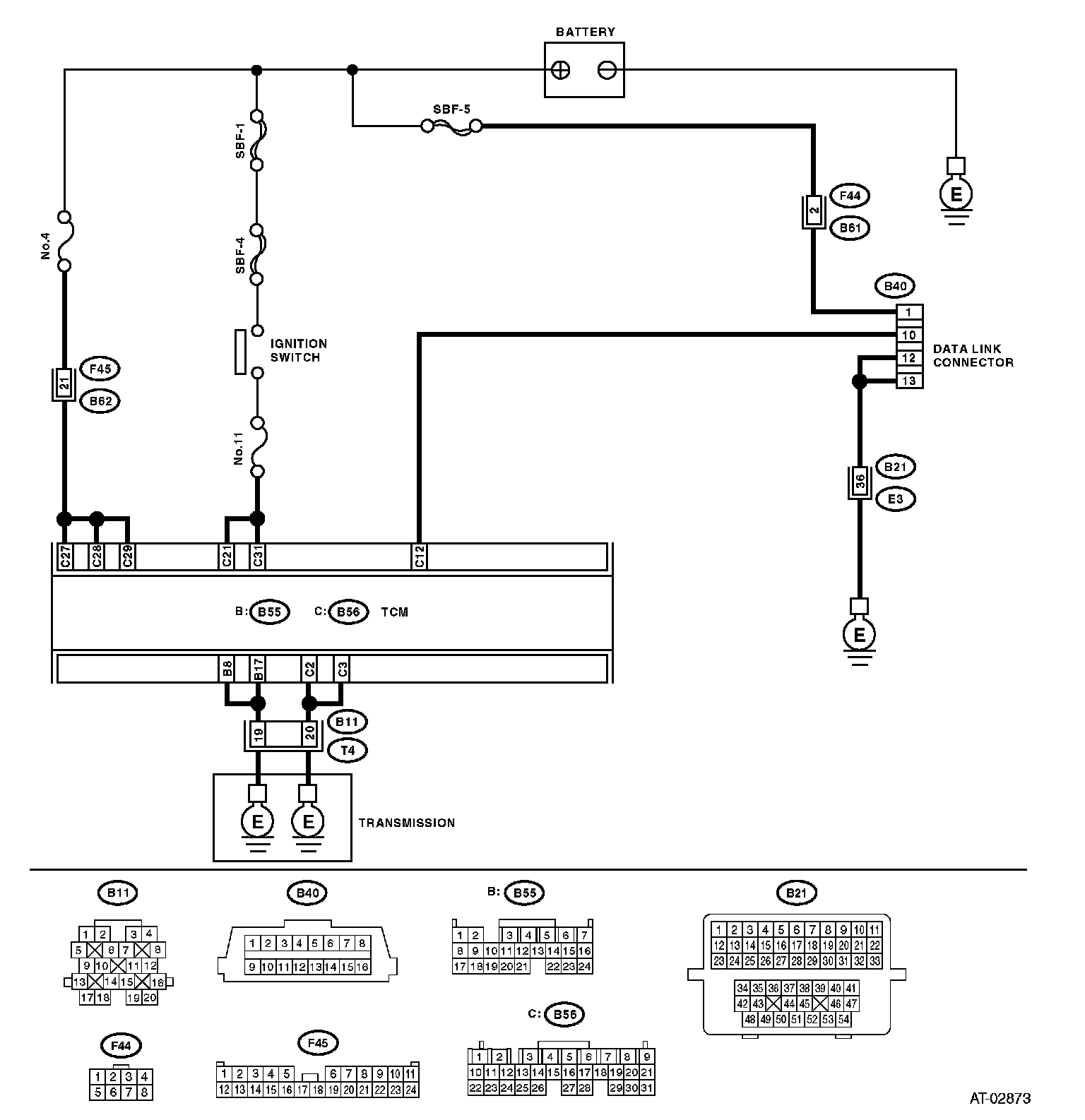

WIRING DIAGRAM
